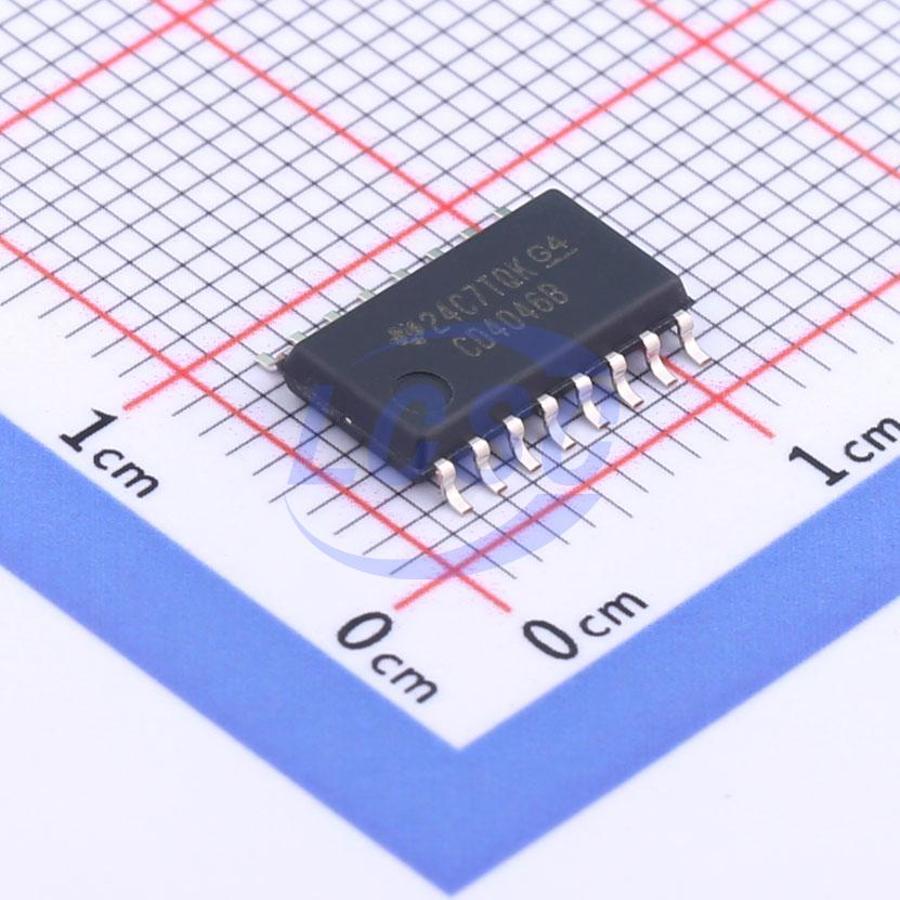

CD4046BNSR

3V~18V 2.4MHz CMOS 1 SO-16-208mil Clock Generators, PLLs, Frequency Synthesizers RoHS

SO-16-208milROHS3 CompliantActive

CMOS Micropower Phase-Locked Loop

Manufacturer: TI
Manufacturer part #: CD4046BNSR
Store part #: C2651237
Package / case: SO-16-208mil
Category: Clock Generators, PLLs, Frequency Synthesizers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,087 in stock

#C2651237

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹65.36	₹65.36
10+	₹55.37	₹553.70
30+	₹48.42	₹1,452.60
100+	₹42.56	₹4,256.00
500+	₹40.81	₹20,405.00
1,000+	₹39.73	₹39,730.00

Quantity (min 1)

1 × ₹65.36

₹65.36

excl. GST

₹77.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

CD4046BNSR

₹65.36 for 1 + GST

Specifications

Operating Temperature: -55℃~+125℃
Clock/Oscillator: External
Voltage - Supply: 3V~18V
Output Frequency(Max): 2.4MHz
Period Jitter, Peak-to-Peak: -;-
Input: CMOS
Features: On-chip VCO/DCO;Built-in phase-locked loop
Output Level: CMOS
Number of Outputs: 1

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.001 g

Overview

CD4046B CM0S Micropower Phase-Locked Loop (PLL) consists of a low. power, linear voltage-controlled oscillator (VCO) and two different phase comparators having a common signal-input amplifier and a common comparator input. A 5.2-V zener diode is provided for supply regulation if necessary.

Applications

FM demodulator and modulator
Frequency synthesis and multiplication
Frequency discriminator
Data synchronization
Voltage-to-frequency conversion
Tone decoding
FSK - Modems
Signal conditioning

Key features

Very low power consumption: 70 μW (typ.) at vco t₀ = 10 kHz, VDD = 5V
Operating frequency range up to 1.4 MHz (typ.) at VDD = 10V, R1 = 5 kΩ
Low frequency drift: 0.04%/°C (typ.) at VDD = 10V
Choice of two phase comparators: Exclusive-OR network (I), Edge-controlled memory network with phase-pulse output for lock indication (II)
High VCO linearity: < 1% (typ.) at VDD = 10V
VCO inhibit control for ON-OFF keying and ultra-low standby power consumption
Source-follower output of VCO control input (Demod. output)
Zener diode to assist supply regulation
Standardized, symmetrical output characteristics
100% tested for quiescent current at 20 V
5-V, 10-V, and 15-V parametric ratings
Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
