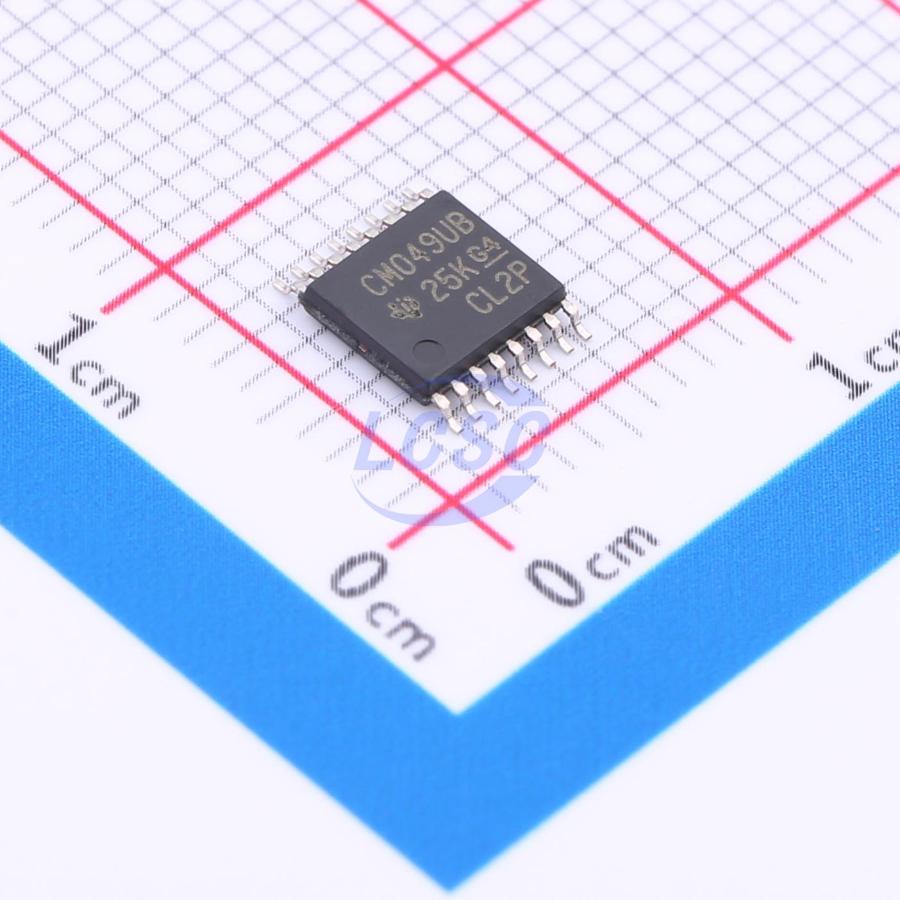

CD4049UBPWR
4uA 3V~18V 6 50ns@15V,50pF TSSOP-16 Gates and Inverters RoHS
TSSOP-16ROHS3 CompliantActive
CMOS Hex Inverting Buffers and Converters
- Manufacturer
- TI
- Manufacturer part #
- CD4049UBPWR
- Store part #
- C2862083
- Package / case
- TSSOP-16
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,420 in stock
#C2862083
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.84 | ₹62.84 |
| 10+ | ₹49.36 | ₹493.60 |
| 30+ | ₹42.84 | ₹1,285.20 |
| 100+ | ₹36.98 | ₹3,698.00 |
| 500+ | ₹35.23 | ₹17,615.00 |
| 1,000+ | ₹34.36 | ₹34,360.00 |
1 × ₹62.84
₹62.84
excl. GST
₹74.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
CD4049UBPWR
₹62.84 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - Low
- 1V~2.5V
- Input Logic Level - High
- 4V~12.5V
- Logic Family
- 4000B
- Output Logic Level - High
- 4.95V~5V
- Quiescent Current(Iq)
- 4uA
- Voltage - Supply
- 3V~18V
- Current - Output High(IOH)
- 4.3mA
- Number of Channels
- 6
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 50ns@15V,50pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
Applications
- CMOS to DTL or TTL hex converter
- CMOS current sink or source driver
- CMOS high-to-low level logic converter
