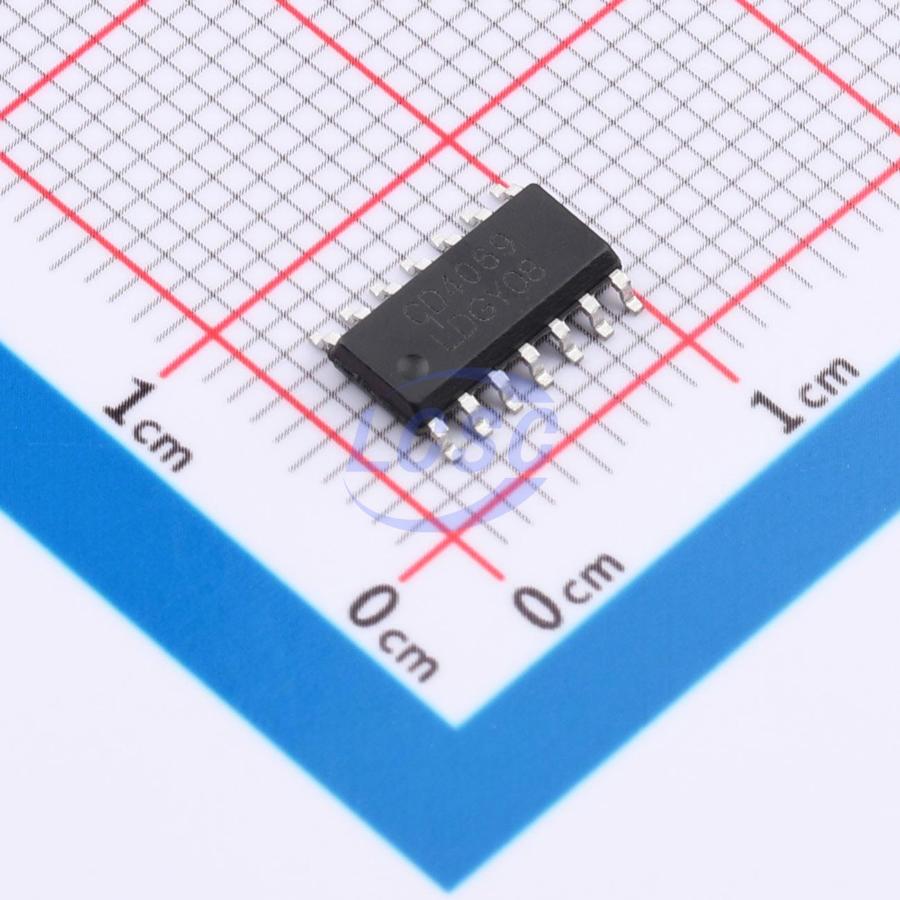

CD4069UBM96-TP
3V~15V 1uA 6 SOP-14 Gates and Inverters
SOP-14RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- CD4069UBM96-TP
- Store part #
- C53340864
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,040 in stock
#C53340864
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.78 | ₹73.90 |
| 50+ | ₹11.66 | ₹583.00 |
| 150+ | ₹10.09 | ₹1,513.50 |
| 500+ | ₹8.92 | ₹4,460.00 |
| 2,500+ | ₹7.98 | ₹19,950.00 |
| 5,000+ | ₹7.50 | ₹37,500.00 |
5 × ₹14.78
₹73.90
excl. GST
₹87.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4069UBM96-TP
₹73.90 for 5 + GST
Specifications
- Logic Family
- CD4
- Voltage - Supply
- 3V~15V
- Output Logic Level - Low
- 50mV
- Input Logic Level - Low
- 1V;2V;2.5V
- Input Logic Level - High
- 4V;8V;12.5V
- Operating Temperature
- -20℃~+85℃
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 6
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.253 g
Overview
CD4069UBM96-TP consists of six independent CMOS inverter circuits, each featuring high noise immunity and drive capability. During normal operation, VDD is typically connected to the supply voltage and VSS to ground; unused inputs must be tied to VDD, VSS, or other inputs. This device is suitable for general-purpose inverter applications that do not require medium-power TTL driving or logic level translation. The CD4069UBM96-TP is available in a SOP14 package.
Applications
- Logic inversion
- Pulse shaping
- Oscillator
- High input impedance amplifier
Key features
- Wide operating voltage range: 3~15V
- Standardized symmetrical output characteristics
- Fast output response
- Low quiescent current: IDD < 1μA
