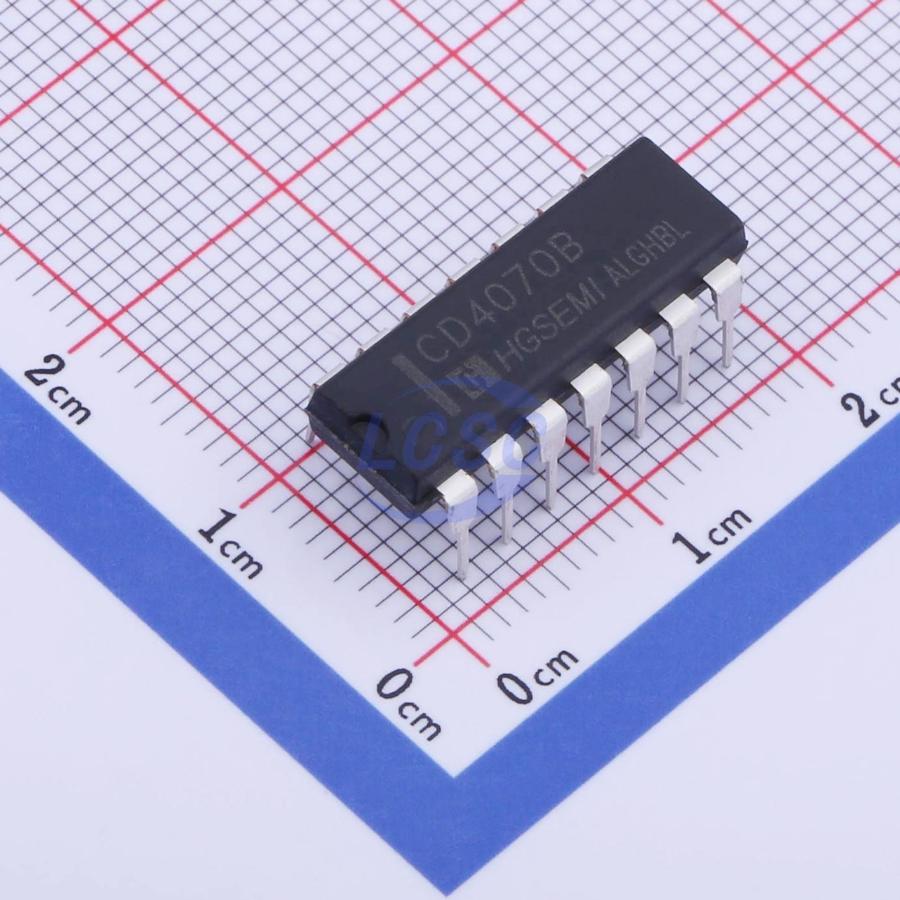

CD4070BE
IC Gate 4 Channel DIP-14
DIP-14RoHSDiscontinued
Quad Exclusive-OR Gate
- Manufacturer
- HGSEMI
- Manufacturer part #
- CD4070BE
- Store part #
- C910851
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,260 in stock
#C910851
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.87 | ₹119.35 |
| 50+ | ₹19.24 | ₹962.00 |
| 150+ | ₹16.99 | ₹2,548.50 |
| 500+ | ₹14.17 | ₹7,085.00 |
| 2,000+ | ₹12.91 | ₹25,820.00 |
| 5,000+ | ₹12.17 | ₹60,850.00 |
5 × ₹23.87
₹119.35
excl. GST
₹140.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
CD4070BE
₹119.35 for 5 + GST
Specifications
- Input Logic Level - High
- 3.5V;7V;11V
- Input Logic Level - Low
- 1.5V;3V;4V
- Operating Temperature
- 0℃~+70℃
- Logic Family
- 4000 Series
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 30uA
- Voltage - Supply
- 5V~15V
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 100ns@15V,50pF
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.613 g
Overview
CD4070B contains four independent XOR gate circuits with exclusive-OR functionality. CD4070B is available in 14-pin plastic DIP and plastic dual in-line (SOP, TSSOP) package options.
