HGSEMIDatasheet (PDF)

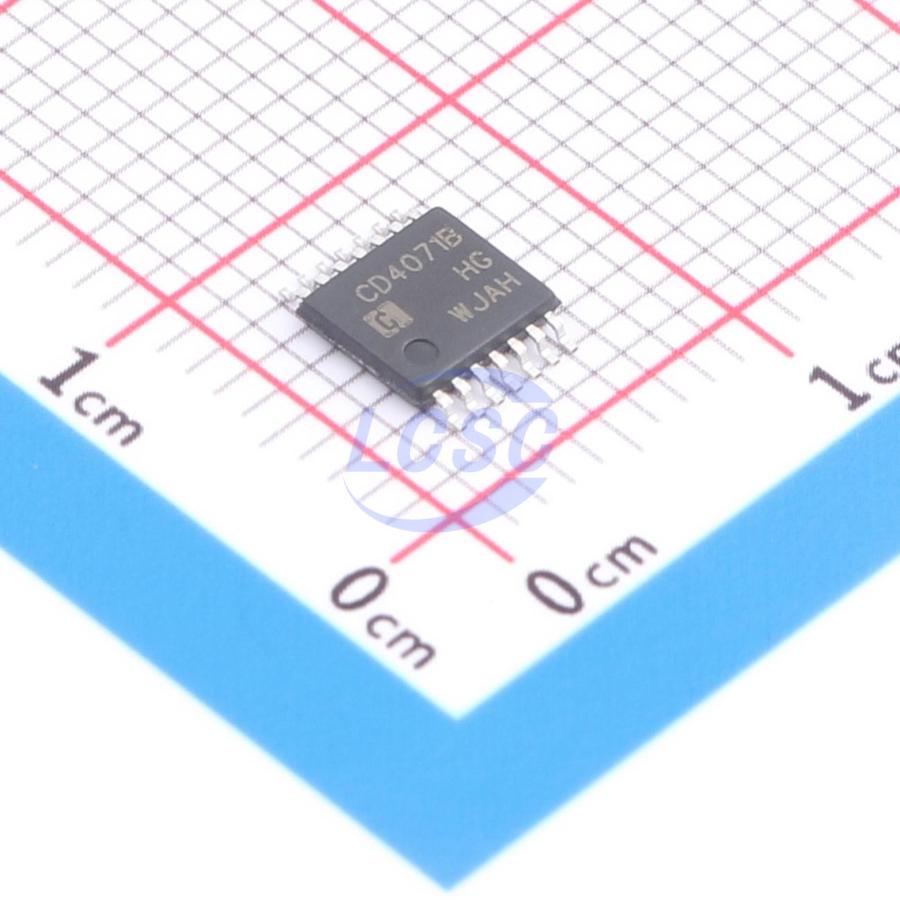

CD4071BMT/TR
3V~15V TSSOP-14 Gates and Inverters
TSSOP-14RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- CD4071BMT/TR
- Store part #
- C51953506
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,945 in stock
#C51953506
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.31 | ₹111.55 |
| 50+ | ₹17.66 | ₹883.00 |
| 150+ | ₹15.68 | ₹2,352.00 |
| 500+ | ₹13.20 | ₹6,600.00 |
| 2,500+ | ₹12.09 | ₹30,225.00 |
| 5,000+ | ₹11.43 | ₹57,150.00 |
5 × ₹22.31
₹111.55
excl. GST
₹131.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4071BMT/TR
₹111.55 for 5 + GST
Specifications
- Logic Family
- CD4
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 3.5V;7V;11V
- Input Logic Level - Low
- 1.5V;3V;4V
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 5uA;10uA;15uA
- Voltage - Supply
- 3V~15V
- Current - Output High(IOH)
- 6.8mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 250ns@5V,50pF;120ns@10V,50pF;90ns@15V,50pF
- Current - Output Low(IOL)
- 6.8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
The CD4071B is a quad 2-input OR gate with buffered outputs for improved noise immunity and reduced output impedance variation. Recommended operating voltage range is 3V to 15V referenced to VSS. Unused input pins must be connected to VDD, VSS, or another input. Primary applications are in industrial and automotive sectors.
Applications
- Industrial and Automotive
Key features
- Buffered inputs and outputs
- Standard symmetrical output characteristics
- 5V, 10V, 15V parameter standards
- Operating temperature range: -40℃~+85℃
- Package: DIP-14/SOP-14/TSSOP-14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CD4071DMT/TR-HG#C53374707HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 2,490 | ₹17.21 · 2,490 in stock | View | |
