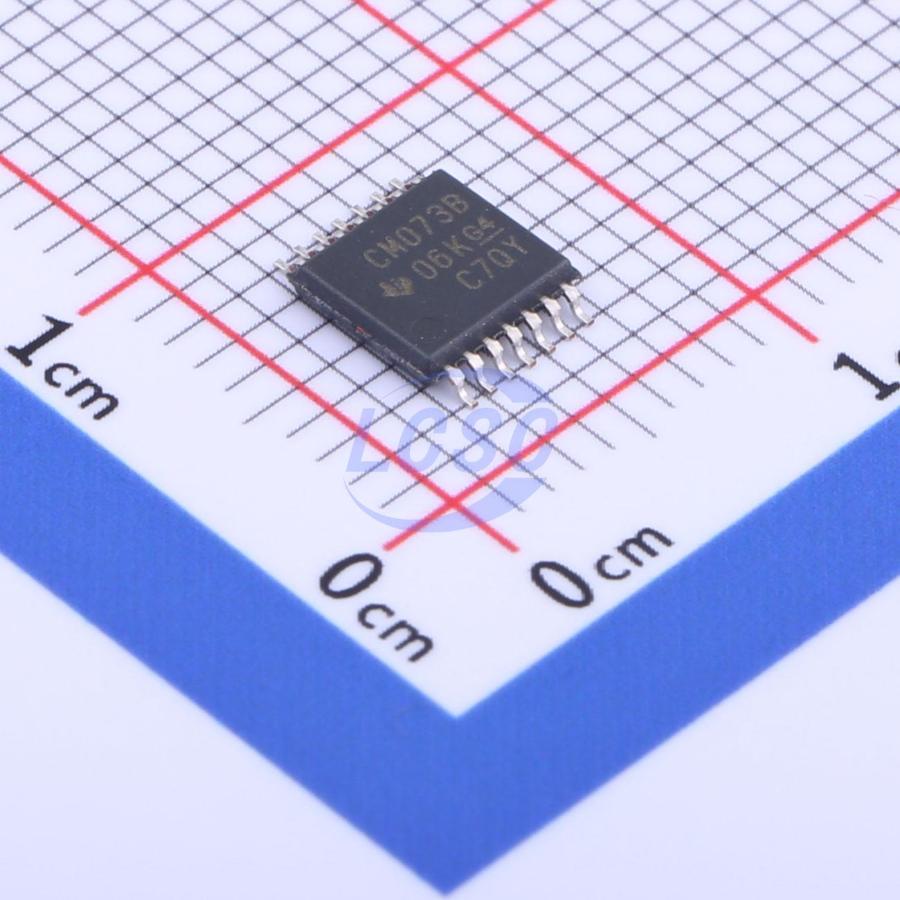

CD4073BPWR
1uA 3V~18V 90ns@15V,50pF TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
CMOS AND Gates
- Manufacturer
- TI
- Manufacturer part #
- CD4073BPWR
- Store part #
- C2681997
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,382 in stock
#C2681997
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.83 | ₹60.83 |
| 10+ | ₹51.49 | ₹514.90 |
| 30+ | ₹44.97 | ₹1,349.10 |
| 100+ | ₹39.54 | ₹3,954.00 |
| 500+ | ₹37.80 | ₹18,900.00 |
| 1,000+ | ₹36.71 | ₹36,710.00 |
1 × ₹60.83
₹60.83
excl. GST
₹71.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
CD4073BPWR
₹60.83 for 1 + GST
Specifications
- Input Logic Level - High
- 3.5V~11V
- Input Logic Level - Low
- 1.5V~4V
- Operating Temperature
- -55℃~+125℃
- Logic Family
- 4000B Series
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~18V
- Number of Channels
- 3;3
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 90ns@15V,50pF
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.204 g
Overview
CD4073B, CD4081B and CD. 4082B AND gates, provide the system designer with direct implementation of the AND function and supplement the existing family of CMOS gates.
Key features
- Medium-Speed Operation -- tpLH· tpHL = 80 ns (typ.) at VDD = 10 V
- 100% tested for quiescent current at 20 V
- Maximum input current of 1 μA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
- Noise margin (full package-temperature range) = 1 V at VDD = 5 V, 2 V at VDD = 10 V, 2.5 V at VDD = 15 V
- Standardized, symmetrical output characteristics
- 5-V, 10-V, and 15-V parametric ratings
- Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Dtscription of 'B' Series CMOs Devices"
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4073BMT/TR#C22396886HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 2,255 | ₹17.41 · 2,255 in stock | View |
