lingxingicDatasheet (PDF)

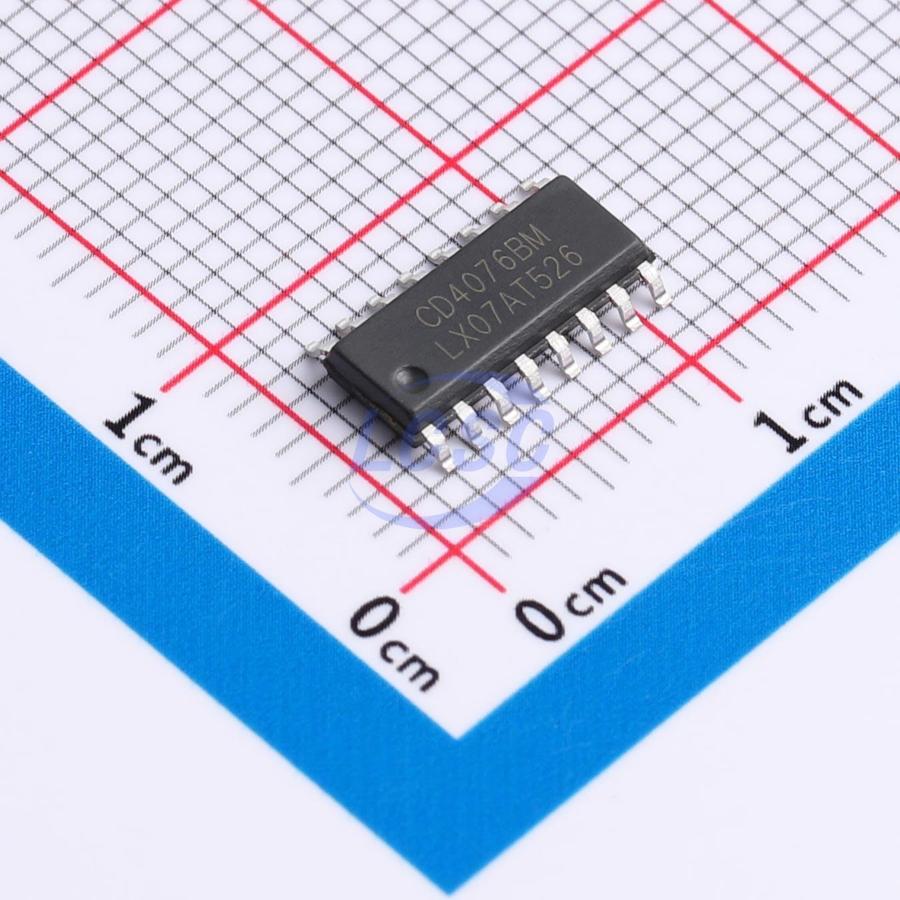

CD4076BM(LX)
3V~15V 4 4 90ns@15V,50pF SOP-16 Flip Flops
SOP-16RoHSActive
- Manufacturer
- lingxingic
- Manufacturer part #
- CD4076BM(LX)
- Store part #
- C52097910
- Package / case
- SOP-16
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,595 in stock
#C52097910
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.64 | ₹188.20 |
| 50+ | ₹33.08 | ₹1,654.00 |
| 150+ | ₹31.12 | ₹4,668.00 |
| 500+ | ₹28.72 | ₹14,360.00 |
| 2,500+ | ₹27.64 | ₹69,100.00 |
| 4,000+ | ₹26.98 | ₹1,07,920.00 |
5 × ₹37.64
₹188.20
excl. GST
₹222.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4076BM(LX)
₹188.20 for 5 + GST
Specifications
- Voltage - Supply
- 3V~15V
- Number of Bits per Element
- 4
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Series
- CD40
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 4
- Current - Output High(IOH)
- 2.8mA
- Current - Output Low(IOL)
- 2.8mA
- Quiescent Current
- 600uA
- Setup Time
- 35ns
- Propagation Delay
- 90ns@15V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.307 g
Overview
CD4076(LX) is a quad D-type register with three-state outputs. The device operates within a recommended VDD supply voltage range of 3V to 15V (relative to GND, typically ground). Unused inputs must be connected to VDD, GND, or other inputs.
Key features
- Supply voltage range: 3V to 15V
- Temperature range: -40℃ ~ +125℃
- Package: DIP16/SOP16/TSSOP16
