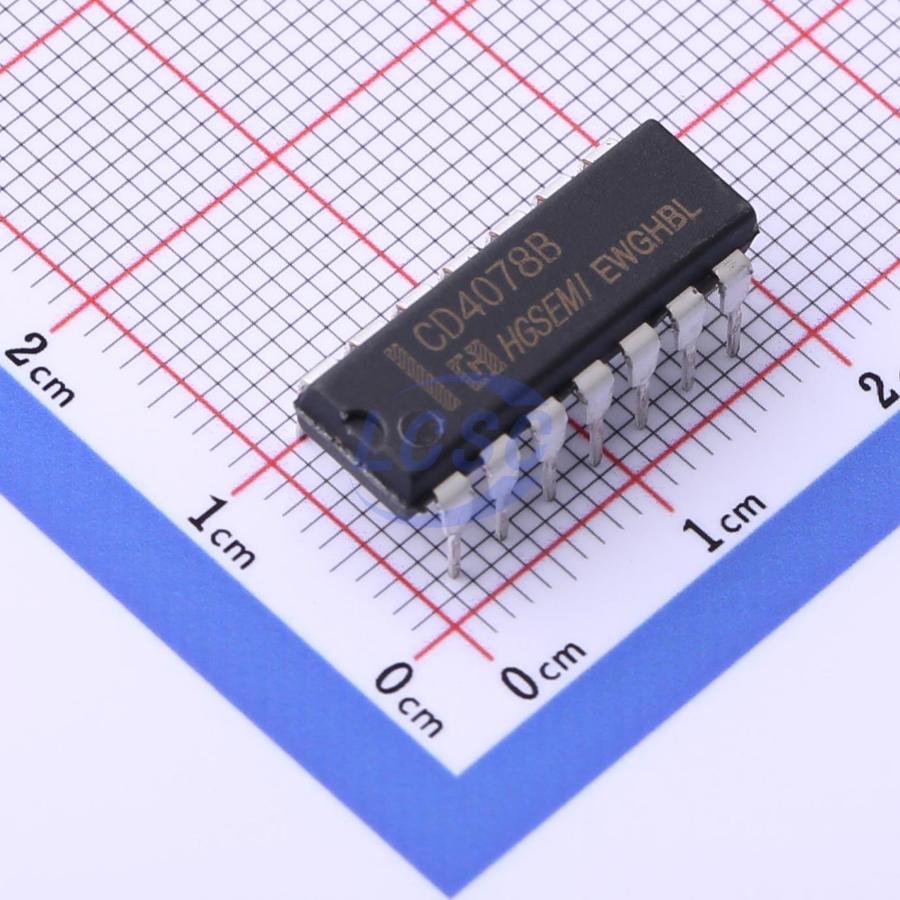

CD4078BE
5uA 5V~18V 110ns@15V,50pF DIP-14 Gates and Inverters
DIP-14RoHSActive
CMOS 8-Input NOR/OR High-Voltage Types
- Manufacturer
- HGSEMI
- Manufacturer part #
- CD4078BE
- Store part #
- C3007970
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,380 in stock
#C3007970
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.08 | ₹135.40 |
| 50+ | ₹19.98 | ₹999.00 |
| 150+ | ₹17.64 | ₹2,646.00 |
| 500+ | ₹14.72 | ₹7,360.00 |
| 2,000+ | ₹13.42 | ₹26,840.00 |
| 5,000+ | ₹12.63 | ₹63,150.00 |
5 × ₹27.08
₹135.40
excl. GST
₹159.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
CD4078BE
₹135.40 for 5 + GST
Specifications
- Input Logic Level - High
- 3.5V;7V;11V
- Input Logic Level - Low
- 1.5V;3V;4V
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 4000 Series
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 5uA
- Voltage - Supply
- 5V~18V
- Current - Output High(IOH)
- 6.8mA
- Number of Channels
- 1;8
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 110ns@15V,50pF
- Current - Output Low(IOL)
- 6.8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.72 g
