CD4093BE
Schmitt trigger 3V~18V 130ns@15V,50pF 4uA DIP-14 Gates and Inverters RoHS
DIP-14ROHS3 CompliantActive
Quad 2-Input NAND Schmitt Triggers
- Manufacturer
- TI
- Manufacturer part #
- CD4093BE
- Store part #
- C96504
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,063 in stock
#C96504
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.84 | ₹67.84 |
| 10+ | ₹54.14 | ₹541.40 |
| 25+ | ₹43.28 | ₹1,082.00 |
| 100+ | ₹36.09 | ₹3,609.00 |
| 500+ | ₹32.84 | ₹16,420.00 |
| 1,000+ | ₹30.88 | ₹30,880.00 |
1 × ₹67.84
₹67.84
excl. GST
₹80.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube

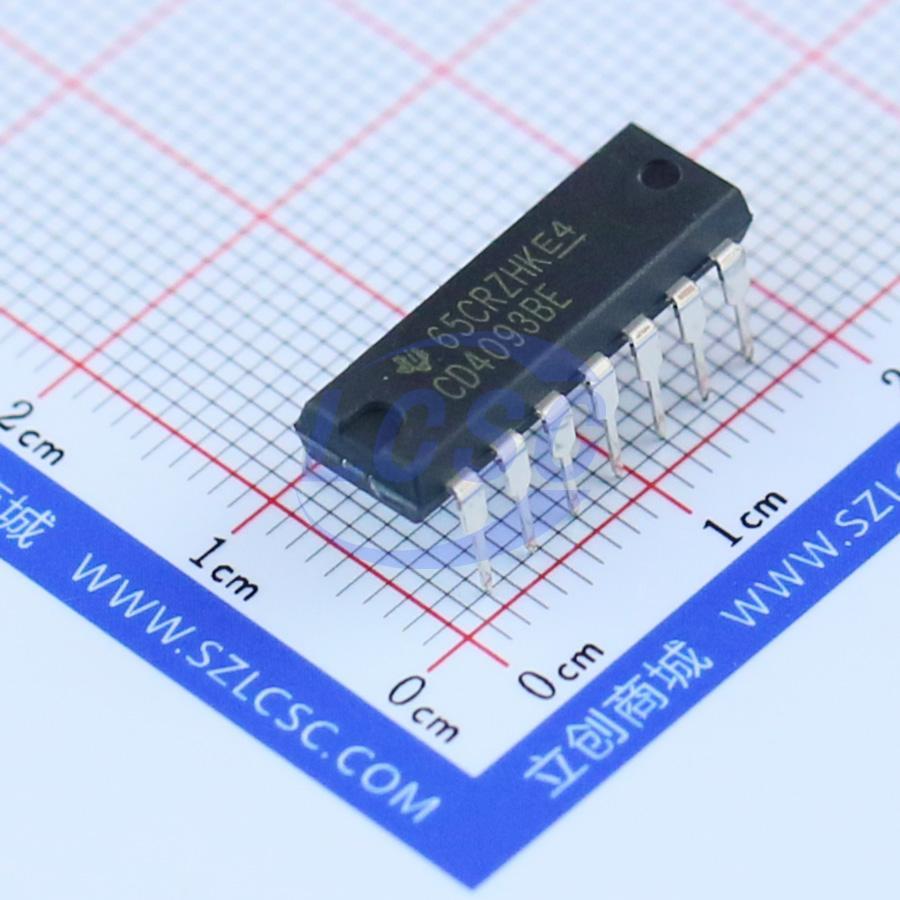

CD4093BE
₹67.84 for 1 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 4000B Series
- Voltage - Supply
- 3V~18V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 130ns@15V,50pF
- Input Logic Level - High
- 3.6V~10.8V
- Operating Temperature
- -55℃~+125℃
- Output Logic Level - High
- 4.95V~5V;9.95V~10V;14.95V~15V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.84 g
Overview
CD4093B consists of four Schmitt- trigger circuits. Each circuit functions as a two- input NAND gate with Schmitt- trigger action on both inputs. The gate switches at different points for positive- and negative- going signals. The difference between the positive voltage (Vₚ) and the negative voltage (Vₙ) is defined as hysteresis voltage (Vₕ).
Applications
- Wave and pulse shapers
- High-noise-environment systems
- Monostable multivibrators
- Astable multivibrators
- NAND logic
Key features
- Schmitt-trigger action on each input with no external components
- Hysteresis voltage typically 0.9V at VDD = 5V and 2.3V at VDD = 10V
- Noise immunity greater than 50%
- No limit on input rise and fall times
- Standardized, symmetrical output characteristics
- 100% tested for quiescent current at 20V
- Maximum input current of 1μA at 18V over full package- temperature range, 100nA at 18V and 25℃
- 5 - V, 10 - V, and 15 - V parametric ratings
- Meets all requirements of JEDEC- Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4093AN#C46635761HGSEMI · DIP-14 | HGSEMI | DIP-14 | 180 | ₹22.49 · 180 in stock | View |
 | CD4011BE#C5226TI · DIP-14 | TI | DIP-14 | 2,291 | ₹72.20 · 2,291 in stock | View |
| CD4093BF3A#C5217617TI · CDIP-14 | TI | CDIP-14 | 5 | ₹3,762.97 · 5 in stock | View | |
 | CD4011BF#C5217631TI · CDIP(J)-14 | TI | CDIP(J)-14 | 3 | ₹2,334.00 · 3 in stock | View |
 | CD4011BF3A#C3033377TI · CDIP-14 | TI | CDIP-14 | 10 | ₹3,121.16 · 10 in stock | View |
