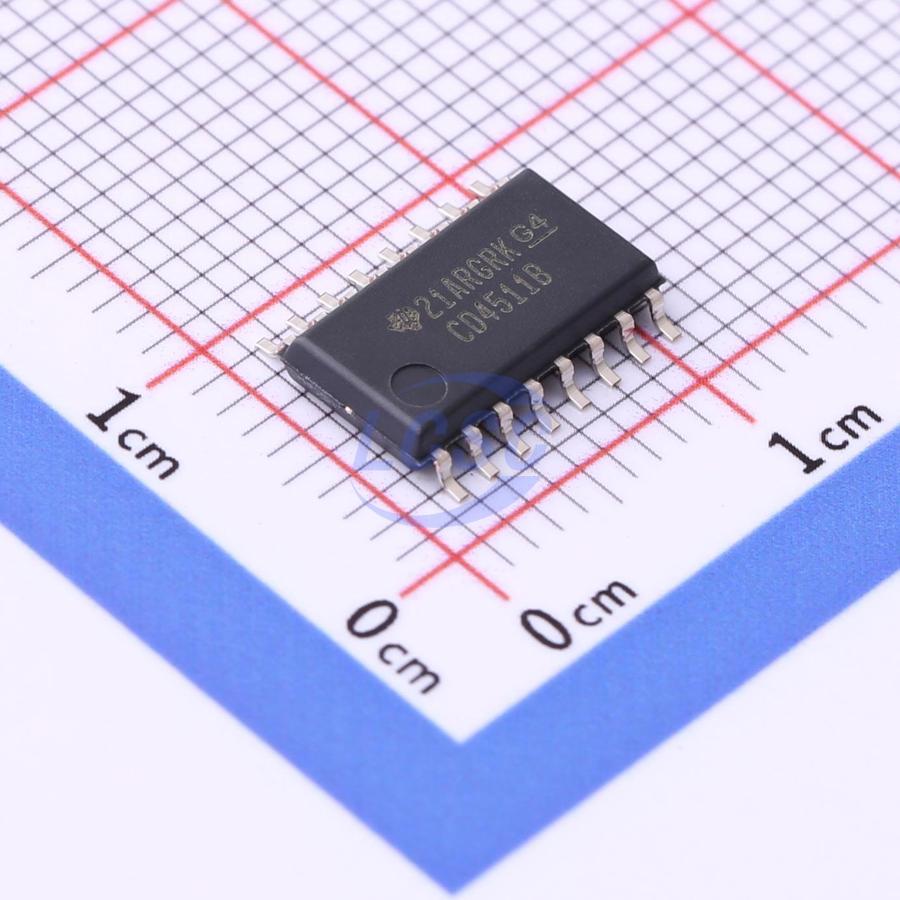

CD4511BNSR

6.8mA 3V~18V 300ns@15V,50pF SO-16-208mil Display Drivers RoHS

SO-16-208milROHS3 CompliantActive

CMOS BCD-to-7-Segment Latch Decoder Drivers

Manufacturer: TI
Manufacturer part #: CD4511BNSR
Store part #: C2653686
Package / case: SO-16-208mil
Category: Display Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,044 in stock

#C2653686

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹98.01	₹98.01
10+	₹84.31	₹843.10
30+	₹74.54	₹2,236.20
100+	₹66.49	₹6,649.00
500+	₹64.11	₹32,055.00
1,000+	₹62.59	₹62,590.00

Quantity (min 1)

1 × ₹98.01

₹98.01

excl. GST

₹115.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

CD4511BNSR

₹98.01 for 1 + GST

Specifications

Type: Decoder
Current - Output Low(IOL): 6.8mA
Voltage - Supply: 3V~18V
Voltage Supply Source: Single Supply
Operating Temperature: -55℃~+125℃
Current - Output High(IOH): 25mA
Propagation Delay: 300ns@15V,50pF
Quiescent Current (Iq): 5uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.64 g

Overview

CD45118 types are BCD-to-7-segment latch decoder drivers constructed with CMOs logic and.n-p-n bipolar transistor output devices on a single monolithic structure. These devices combine the.low quiescent power dissipation and high noise immunity features of RCA CMOS with n-p-n bipolar output transistors capable of sourcing up to 25 mA. This capability allows the CD4511B types to drive LED's and other displays directly. Lamp Test (LT), Blanking (BL), and Latch Enable or Strobe inputs are provided to test the display, shut off or intensity-modulate it, and store or strobe a BCD code, respectively. Several different signals may be multiplexed and displayed when external multiplexing circuitry is used.

Applications

Driving common-cathode LED displays
Multiplexing with common-cathode LED displays
Driving incandescent displays
Driving low-voltage fluorescent displays

Key features

High-output-sourcing capability: up to 25 mA
Input latches for BCD Code storage
Lamp Test and Blanking capability
7-segment outputs blanked for BCD input codes > 1001
100% tested for quiescent current at 20 V
Max. input current of 1μA at 8V, over full package-temperature range, 100 nA at 18 V and 25°C
5-V, 10-V, and 15-V parametric ratings
