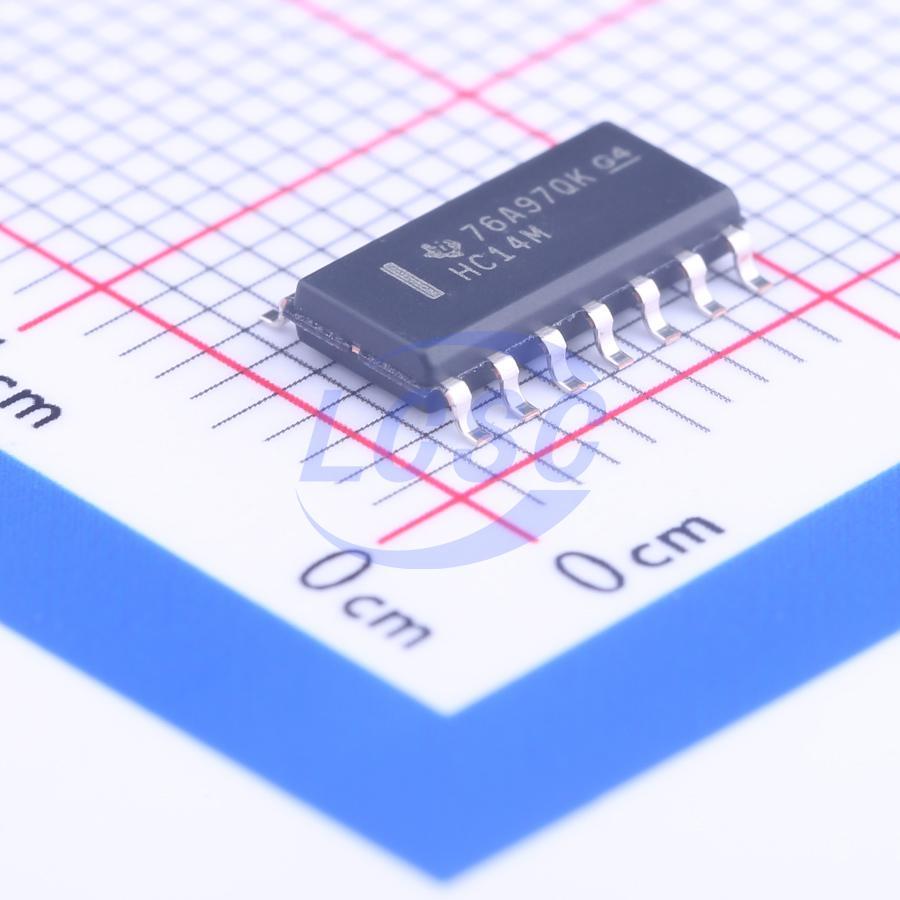

CD74HC14M96
Schmitt trigger 2V~6V 23ns@6V,50pF 2uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
High-Speed CMOS Logic Hex Inverting Schmitt Trigger
- Manufacturer
- TI
- Manufacturer part #
- CD74HC14M96
- Store part #
- C74640
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,965 in stock
#C74640
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.49 | ₹197.45 |
| 50+ | ₹35.51 | ₹1,775.50 |
| 150+ | ₹33.82 | ₹5,073.00 |
| 500+ | ₹31.69 | ₹15,845.00 |
| 2,500+ | ₹30.75 | ₹76,875.00 |
| 5,000+ | ₹30.18 | ₹1,50,900.00 |
5 × ₹39.49
₹197.45
excl. GST
₹232.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD74HC14M96
₹197.45 for 5 + GST
Specifications
- Logic Family
- 74HC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV
- Propagation Delay
- 23ns@6V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - Low
- 300mV~1.2V
- Input Logic Level - High
- 1.5V~4.2V
- Output Logic Level - High
- 4.4V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.264 g
Overview
The ’HC14 and ’HCT14 each contain six inverting Schmitt triggers in one package.
Key features
- Unlimited Input Rise and Fall Times
- Exceptionally High Noise Immunity
- Fanout (Over Temperature Range) - Standard Outputs: 10 LSTTL Loads; Bus Driver Outputs: 15 LSTTL Loads
- Wide Operating Temperature Range: -55℃ to 125℃
- Balanced Propagation Delay and Transition Times
- Significant Power Reduction Compared to LSTTL Logic ICs
- HC Types - 2V to 6V Operation - High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V
- HCT Types - 4.5V to 5.5V Operation - CMOS Input Compatibility, |I| ≤ 1μA at VOL, VOH
