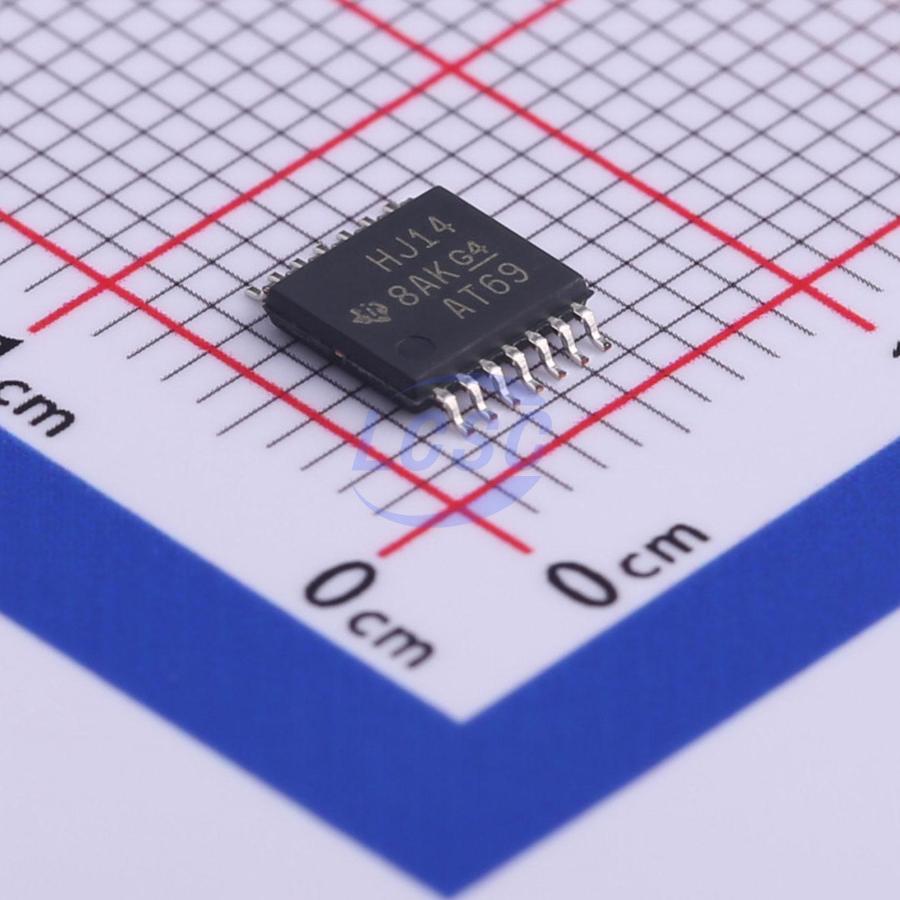

CD74HC14PWR
Schmitt trigger 2uA 2V~6V 6 23ns@6V,50pF TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
High-Speed CMOS Logic Hex Inverting Schmitt Trigger
- Manufacturer
- TI
- Manufacturer part #
- CD74HC14PWR
- Store part #
- C484716
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,138 in stock
#C484716
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.45 | ₹62.45 |
| 10+ | ₹49.44 | ₹494.40 |
| 30+ | ₹44.02 | ₹1,320.60 |
| 100+ | ₹37.08 | ₹3,708.00 |
| 500+ | ₹34.04 | ₹17,020.00 |
| 1,000+ | ₹29.49 | ₹29,490.00 |
1 × ₹62.45
₹62.45
excl. GST
₹73.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
CD74HC14PWR
₹62.45 for 1 + GST
Specifications
- Features
- Noise suppression function
- Operating Temperature
- -55℃~+125℃
- Logic Family
- 74HC
- Input Logic Level - Low
- 300mV~1.2V
- Input Logic Level - High
- 1.5V~4.2V
- Input Type
- Schmitt trigger
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Output Logic Level - Low
- 100mV
- Propagation Delay
- 23ns@6V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.091 g
Overview
The ’HC14 and ’HCT14 each contain six inverting Schmitt triggers in one package.
Key features
- Unlimited Input Rise and Fall Times
- Exceptionally High Noise Immunity
- Fanout (Over Temperature Range) - Standard Outputs: 10 LSTTL Loads - Bus Driver Outputs: 15 LSTTL Loads
- Wide Operating Temperature Range: -55℃ to 125℃
- Balanced Propagation Delay and Transition Times
- Significant Power Reduction Compared to LSTTL Logic ICs
- HC Types - 2V to 6V Operation - High Noise Immunity: Nₗₗ = 30%, N₁ₕ = 30% of Vcc at Vcc = 5V
- HCT Types - 4.5V to 5.5V Operation - CMOS Input Compatibility, | ≤ 1μA at VOL, VOH
