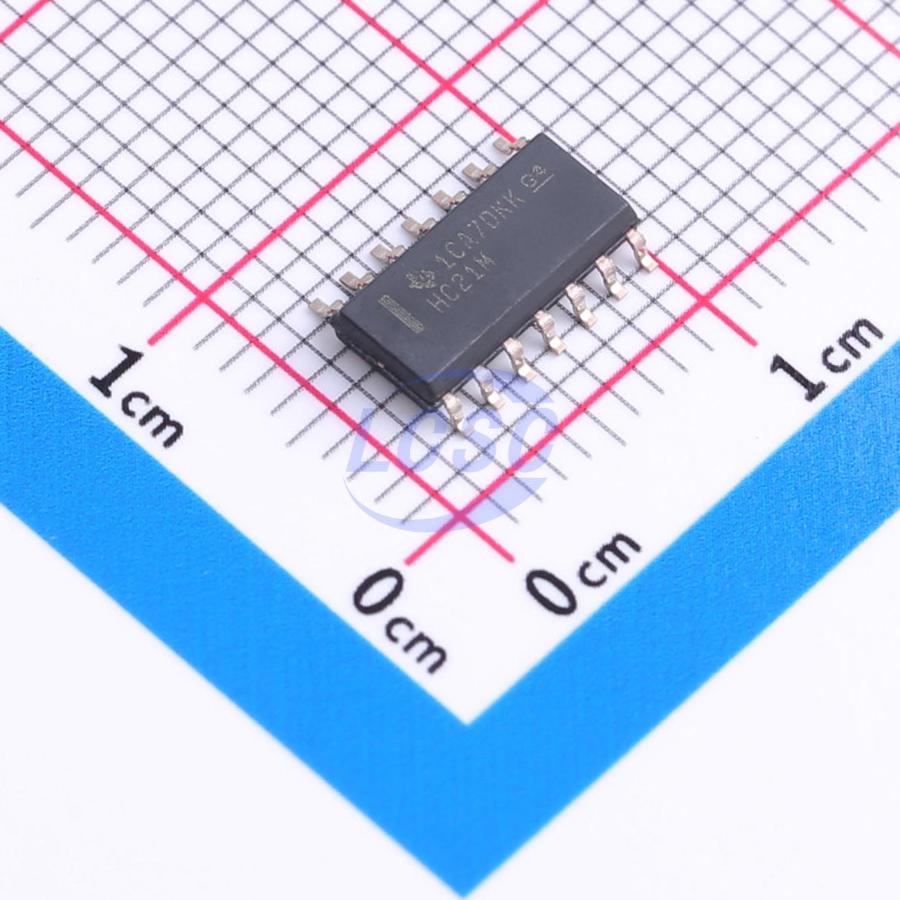

CD74HC21M96
AND Gate IC 2 Channel SOIC-14
SOIC-14ROHS3 CompliantActive
CDx4HC21 Dual 4-Input AND Gate
- Manufacturer
- TI
- Manufacturer part #
- CD74HC21M96
- Store part #
- C2860637
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,009 in stock
#C2860637
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.22 | ₹61.22 |
| 10+ | ₹48.18 | ₹481.80 |
| 30+ | ₹41.67 | ₹1,250.10 |
| 100+ | ₹36.04 | ₹3,604.00 |
| 500+ | ₹34.31 | ₹17,155.00 |
| 1,000+ | ₹33.43 | ₹33,430.00 |
1 × ₹61.22
₹61.22
excl. GST
₹72.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD74HC21M96
₹61.22 for 1 + GST
Specifications
- Input Type
- StandardCMOS
- output type
- Push-pull
- Logic Family
- CD74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV~400mV
- Propagation Delay
- 110ns@2V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 0V~1.8V
- Operating Temperature
- -55℃~+125℃
- Output Logic Level - High
- 3.84V~5.9V
- Quiescent Current(Iq)
- 40uA
- Number of Channels
- 2;4
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
The device contains two independent 4-input AND gates. Each logic gate performs the Boolean function Y = A AND B AND C AND D in positive logic.
Applications
- Combining power-good signals
- Enabling digital signals
- Direct control of motor controller RESET pin
- Combining four independent reset signals into a single active-low reset signal
Key features
- Buffered input wide supply voltage range: 2V to 6V
- Wide operating temperature range: -55℃ to +125℃
- Fan-out supports up to 10 LSTTL loads
- Significantly reduced power consumption compared to LSTTL logic ICs
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EM74HC21D#C49188235EnergyMath · SOP-14L | EnergyMath | SOP-14L | 2,425 | ₹21.45 · 2,425 in stock | View |
 | SN74HCS21QDRQ1#C2863643TI · SOIC-14 | TI | SOIC-14 | 370 | ₹67.14 · 370 in stock | View |
 | SN74HCS21DR#C2871557TI · SOIC-14 | TI | SOIC-14 | 188 | ₹84.34 · 188 in stock | View |
 | AiP74HC21SA14.TR#C51940065Wuxi I-core Elec · SOP-14 | Wuxi I-core Elec | SOP-14 | 85 | ₹27.84 · 85 in stock | View |
 | CJ74HC21ADN#C52145470JSCJ · SOP-14 | JSCJ | SOP-14 | 430 | ₹29.01 · 430 in stock | View |
