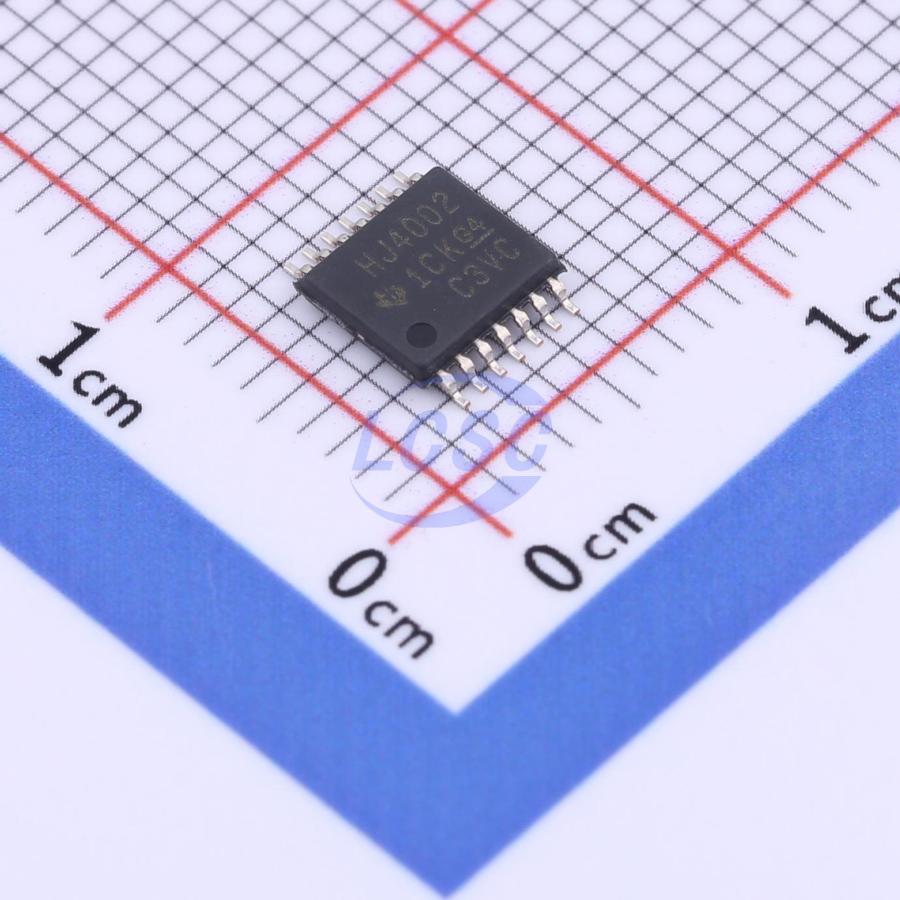

CD74HC4002PWR
NOR Gate IC 2 Channel TSSOP-14
TSSOP-14ROHS3 CompliantActive
High-speed CMOS logic dual 4-input NOR gates
- Manufacturer
- TI
- Manufacturer part #
- CD74HC4002PWR
- Store part #
- C2862938
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,086 in stock
#C2862938
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.96 | ₹81.96 |
| 10+ | ₹69.39 | ₹693.90 |
| 30+ | ₹60.50 | ₹1,815.00 |
| 100+ | ₹53.13 | ₹5,313.00 |
| 500+ | ₹50.74 | ₹25,370.00 |
| 1,000+ | ₹49.44 | ₹49,440.00 |
1 × ₹81.96
₹81.96
excl. GST
₹96.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
CD74HC4002PWR
₹81.96 for 1 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV;400mV
- Propagation Delay
- 17ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -55℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V;3.7V;5.2V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 2;4
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC4002PW,118#C546937Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | 385 | ₹102.76 · 385 in stock | View |
 | EM74HC4002PW#C49188227EnergyMath · TSSOP-14L | EnergyMath | TSSOP-14L | 965 | ₹94.09 · 965 in stock | View |
| 74HC4002PW/C118#C4471866Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | On request | ₹24.40 · 0 in stock | View | |
| 74HC4002PW,112#C546936Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | On request | ₹26.95 · 0 in stock | View | |
| 74HC4002PW-Q100,11#C546938Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | On request | ₹36.42 · 0 in stock | View | |
