TECH PUBLIC

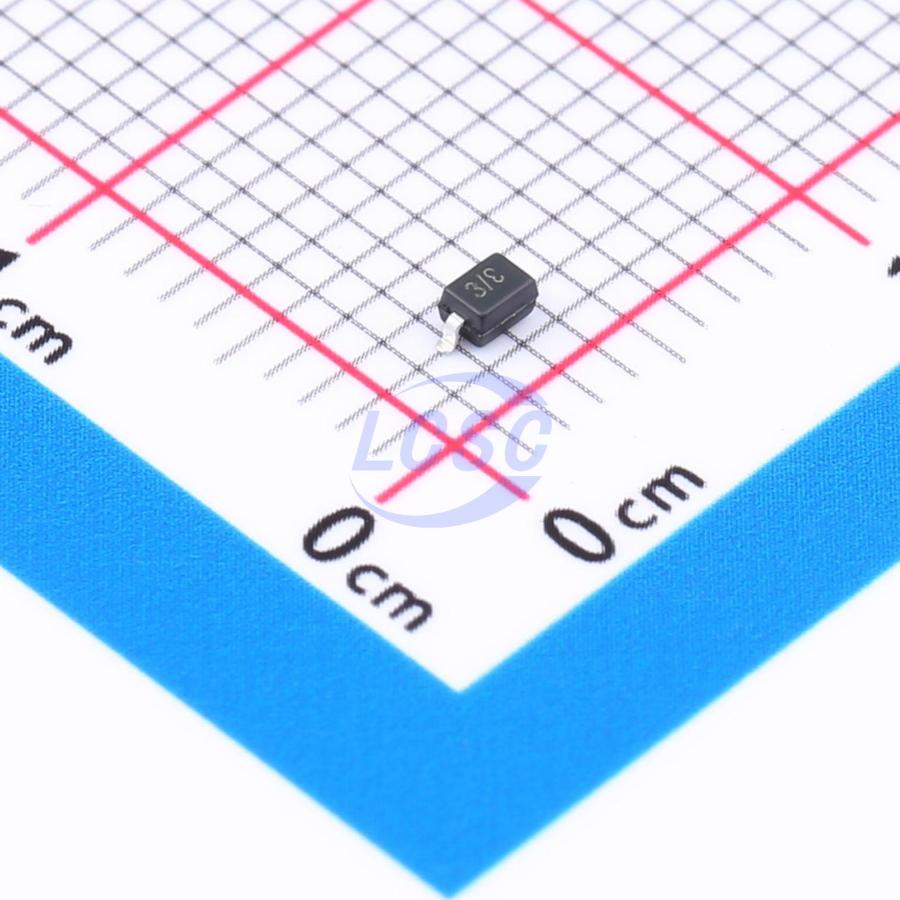

CDSOD323-T03SC

12VC Clamp 35A@8/20us Ipp SOD-323

SOD-323RoHSActive

3.3VWM 12VC SOD-323

Manufacturer: TECH PUBLIC
Manufacturer part #: CDSOD323-T03SC
Store part #: C19829528
Package / case: SOD-323
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,990 in stock

#C19829528

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
10+	₹6.35	₹63.50
100+	₹5.09	₹509.00
300+	₹4.47	₹1,341.00
3,000+	₹3.81	₹11,430.00
6,000+	₹3.44	₹20,640.00
9,000+	₹3.24	₹29,160.00

Quantity (min 10, multiples of 10)

10 × ₹6.35

₹63.50

excl. GST

₹74.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

CDSOD323-T03SC

₹63.50 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 12V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 35A@8/20us
Peak Pulse Power Dissipation (Ppp): 450W@8/20us
Voltage - Breakdown: 4V
Number of Channels: 1
Polarity: Bidirectional
Reverse Leakage Current (Ir): 200nA
Reverse Stand-Off Voltage (Vrwm): 3.3V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.029 g

Overview

Applications

Mobile phones & accessories
Personal digital assistants
Laptops & handheld devices
Portable instruments
Peripherals

Key features

450W peak pulse power (8/20μs)
Protects one data or power line
Operating voltage: 3.3V
Ultra-low clamping voltage
Compliant with the following standards:
IEC 61000-4-2 (ESD) immunity test
Air discharge: ±30kV
Contact discharge: ±30kV
IEC 61000-4-4 (EFT) 80A (5/50ns)
IEC 61000-4-5 (SURGE) 35A (8/20μs)
Package: SOD-323
Ultra-low leakage: nanoamp-level
Case material: "Green" molding compound
UL flammability classification 94V-0
Moisture sensitivity: Level 3 per J-STD-020
Packaging quantity: 3000 pcs/7-inch reel

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	TPE03GHC#C2890116TECH PUBLIC · SOD-323	TECH PUBLIC	SOD-323	2,525	₹11.92 · 2,525 in stock	View
