TECH PUBLICDatasheet (PDF)

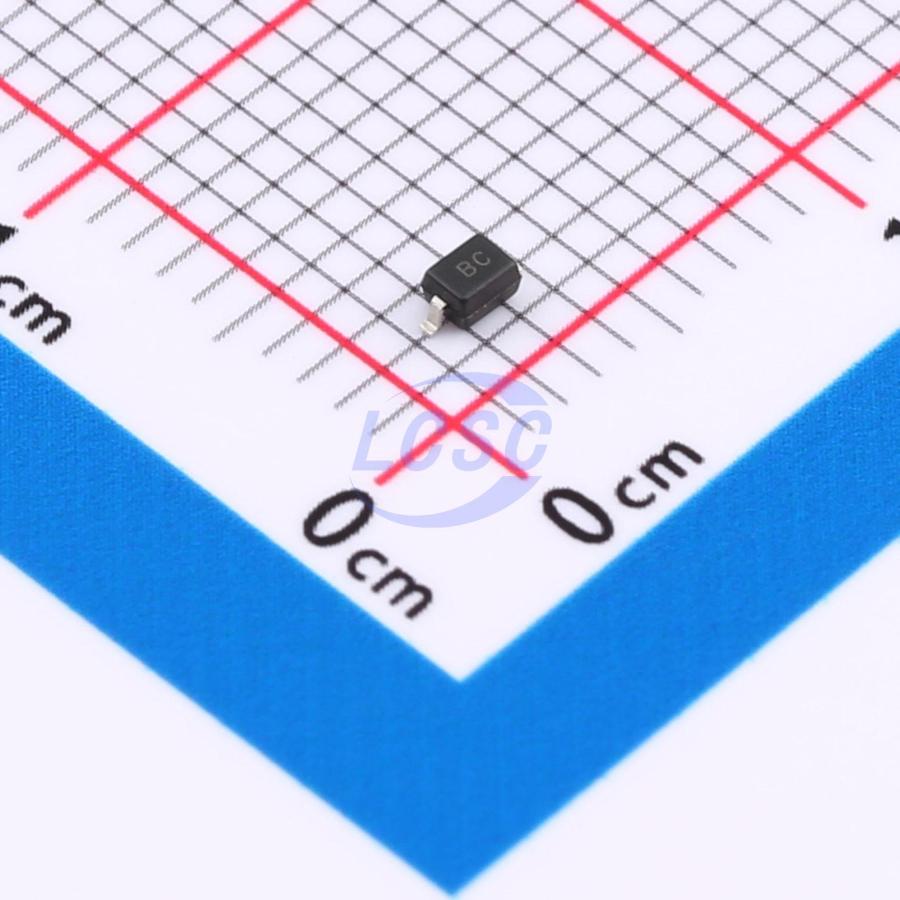

CDSOD323-T08C
25VC Clamp 18A@8/20us Ipp SOD-323
SOD-323RoHSActive
8VWM 25VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- CDSOD323-T08C
- Store part #
- C23380843
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
770 in stock
#C23380843
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.14 | ₹71.40 |
| 100+ | ₹5.65 | ₹565.00 |
| 300+ | ₹4.91 | ₹1,473.00 |
| 3,000+ | ₹4.34 | ₹13,020.00 |
| 6,000+ | ₹3.89 | ₹23,340.00 |
| 9,000+ | ₹3.66 | ₹32,940.00 |
10 × ₹7.14
₹71.40
excl. GST
₹84.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CDSOD323-T08C
₹71.40 for 10 + GST
Specifications
- Clamping Voltage
- 25V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 18A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 8.2V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 8V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.027 g
Overview
Applications
- Ethernet10/100/1000BaseT
- SMART Phones
- Handheld - Wireless Systems
- USB Interface
Key features
- 350W peak pulse power (8/20μs)
- Low operating :8V
- Ultra low capacitance: 1.0 pF typical
- Ultra low leakage: nA leel
- Low clamping voltage
- Protects one power line or data line
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning)18A (8/20μs)
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
