VBsemi ElecDatasheet (PDF)

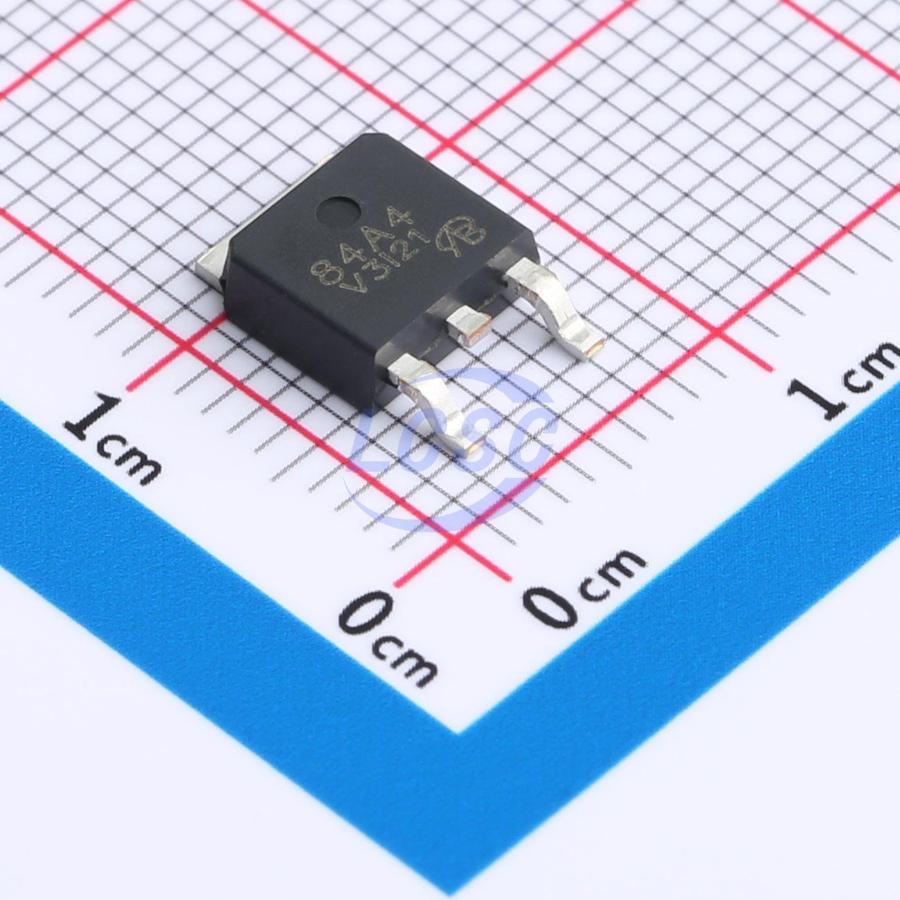

CEU84A4-VB
N-Channel 40V 85A 312W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 40V 85A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CEU84A4-VB
- Store part #
- C19188241
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C19188241
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.92 | ₹86.92 |
| 10+ | ₹70.56 | ₹705.60 |
| 30+ | ₹62.49 | ₹1,874.70 |
| 100+ | ₹54.41 | ₹5,441.00 |
| 500+ | ₹49.52 | ₹24,760.00 |
| 1,000+ | ₹47.18 | ₹47,180.00 |
1 × ₹86.92
₹86.92
excl. GST
₹102.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CEU84A4-VB
₹86.92 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 550pF
- Current - Continuous Drain(Id)
- 85A
- Ciss-Input Capacitance
- 2.38nF
- Pd - Power Dissipation
- 312W
- Reverse Transfer Capacitance (Crss)
- 250pF
- RDS(on)
- 5mΩ@10V;6.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 80nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.416 g
Overview
Applications
- Synchronous rectification
- Power supply
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TK35S04K3L-VB#C18212462VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 49 | ₹86.92 · 49 in stock | View |
 | D4184A-VB#C18795045VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 6 | ₹100.83 · 6 in stock | View |
 | TK65S04N1L-VB#C19632044VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 38 | ₹85.92 · 38 in stock | View |
 | QN0406-VB#C19632150VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 36 | ₹98.62 · 36 in stock | View |
 | STD95N4LF3-VB#C19632166VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 30 | ₹85.92 · 30 in stock | View |
