VBsemi ElecDatasheet (PDF)

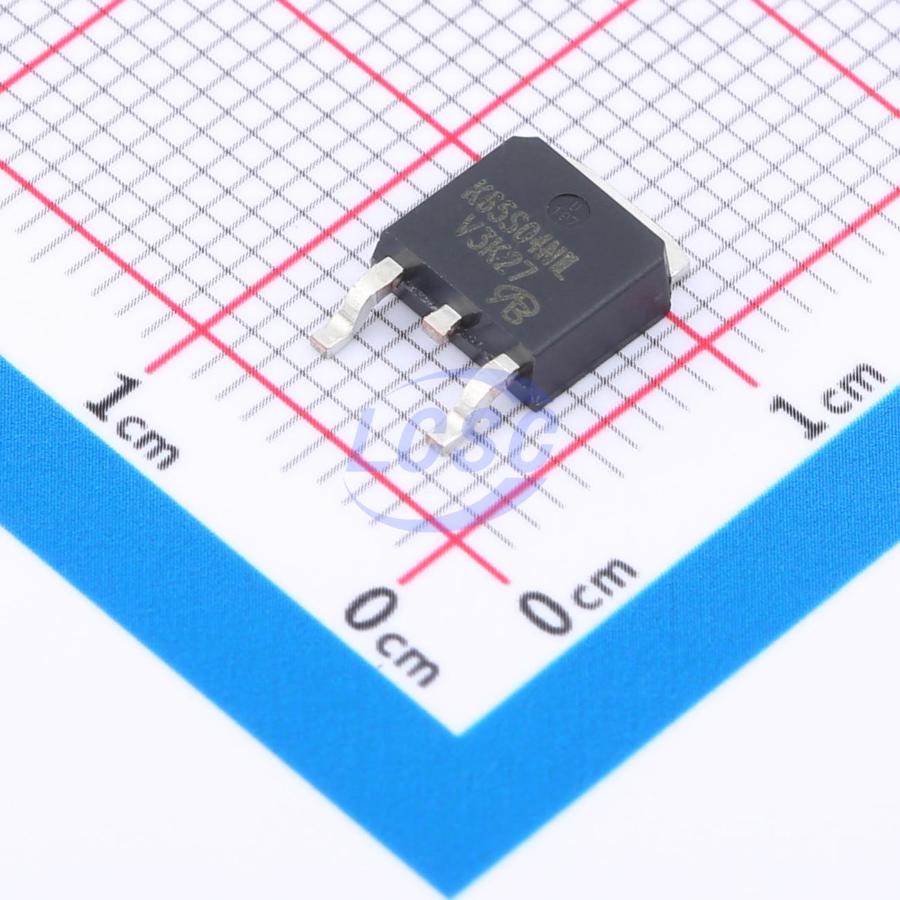

TK65S04N1L-VB
N-Channel 40V 85A 312W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 40V 85A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- TK65S04N1L-VB
- Store part #
- C19632044
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C19632044
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.92 | ₹85.92 |
| 10+ | ₹69.75 | ₹697.50 |
| 30+ | ₹61.76 | ₹1,852.80 |
| 100+ | ₹53.78 | ₹5,378.00 |
| 500+ | ₹48.95 | ₹24,475.00 |
| 1,000+ | ₹46.64 | ₹46,640.00 |
1 × ₹85.92
₹85.92
excl. GST
₹101.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TK65S04N1L-VB
₹85.92 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 550pF
- Current - Continuous Drain(Id)
- 85A
- Ciss-Input Capacitance
- 2.38nF
- Pd - Power Dissipation
- 312W
- Reverse Transfer Capacitance (Crss)
- 250pF
- RDS(on)
- 5mΩ@10V;6.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 80nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.364 g
Overview
SE30150G utilizes advanced trench technology to deliver excellent RDS(ON), low gate charge, and operation down to 4.5V gate voltage. This device is suitable for battery protection or other switching applications.
Applications
- Synchronous rectification
- Power supply
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TK35S04K3L-VB#C18212462VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 49 | ₹86.92 · 49 in stock | View |
 | D4184A-VB#C18795045VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 6 | ₹100.83 · 6 in stock | View |
 | CEU84A4-VB#C19188241VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹86.92 · 50 in stock | View |
 | QN0406-VB#C19632150VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 36 | ₹98.62 · 36 in stock | View |
 | STD95N4LF3-VB#C19632166VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 30 | ₹85.92 · 30 in stock | View |
