WCHDatasheet (PDF)

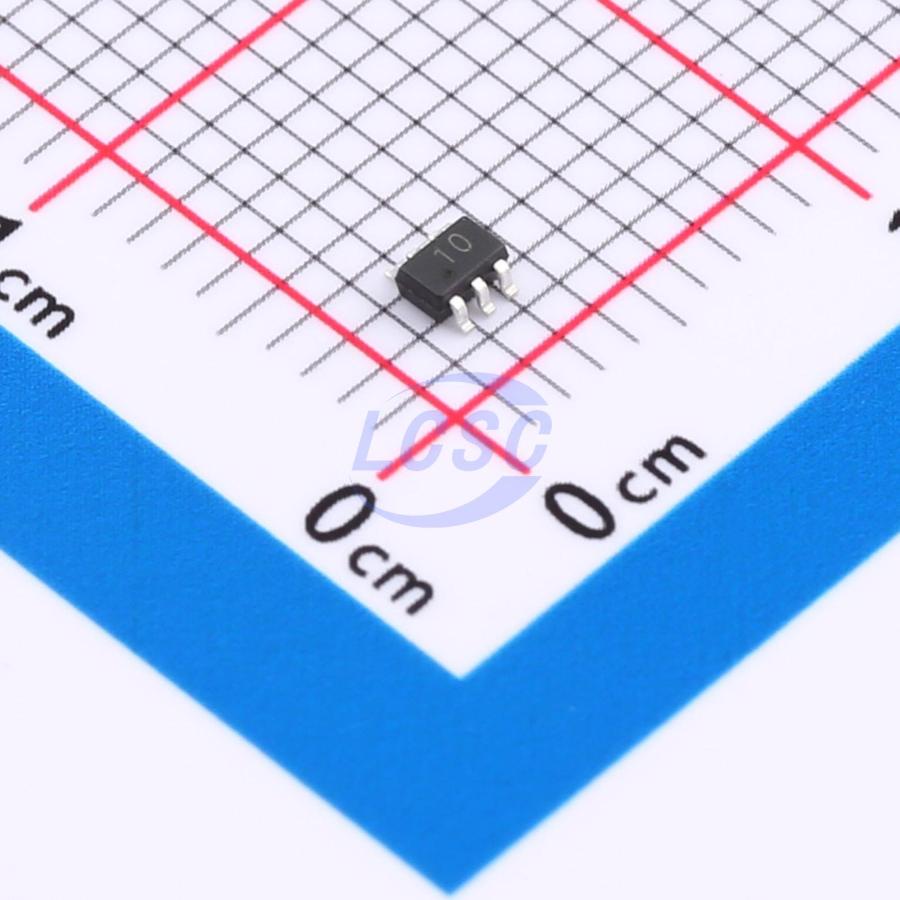

CH410K
Supervisor Open-Drain/Push-Pull 1 Channel SOT-363
SOT-363RoHSActive
Power Monitoring Chip
- Manufacturer
- WCH
- Manufacturer part #
- CH410K
- Store part #
- C39831288
- Package / case
- SOT-363
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,290 in stock
#C39831288
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.78 | ₹78.90 |
| 50+ | ₹12.66 | ₹633.00 |
| 150+ | ₹11.10 | ₹1,665.00 |
| 500+ | ₹9.92 | ₹4,960.00 |
| 3,000+ | ₹9.00 | ₹27,000.00 |
| 6,000+ | ₹8.52 | ₹51,120.00 |
5 × ₹15.78
₹78.90
excl. GST
₹93.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CH410K
₹78.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 20ms
- output type
- Push-pull;Open-drain
- Reset Active Level
- Active High;Active Low
- standby current
- 800nA;1.6uA
- Voltage - Supply
- 1V~5.3V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.3V;3V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.085 g
Overview
The CH410 is a power supply status monitoring IC designed to monitor the input supply voltage VCC and generate power-on reset and undervoltage reset signals. When the input supply VCC reaches the threshold voltage, the IC enables the output VOUT after a delay of several milliseconds; when the input supply VCC drops below the threshold voltage, the IC immediately shuts down and discharges the output VOUT.
Key features
- Monitors power supply state changes, converting slowly rising or noisy inputs into reliable power signals
- Integrated POR function, providing power-on, undervoltage, and delayed reset signals
- Active-high or active-low reset output; active-low reset is open-drain
- Supports 5V, 3.3V, or 2.5V supply voltage
- SOT363 (SC70-6L) compact lead-free package, RoHS compliant
