BOURNSDatasheet (PDF)

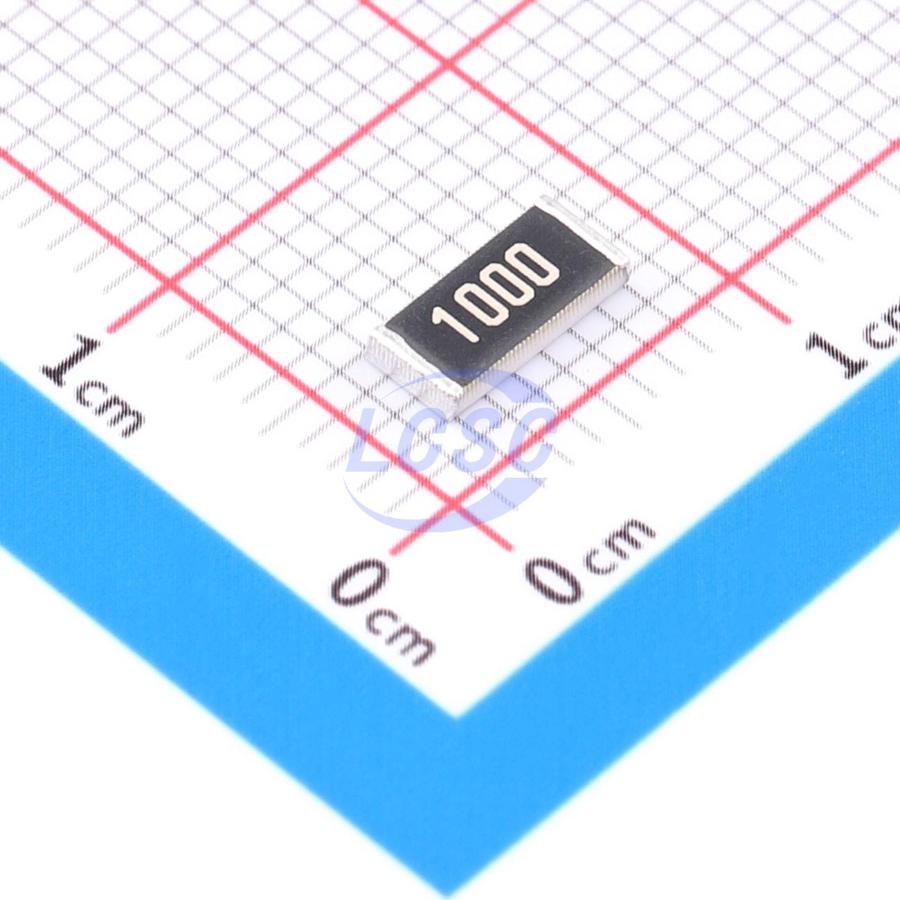

CHP2512AFX-1000ELF
100Ω 3W Thick Film Resistor ±100ppm/℃ ±1% 2512 Chip Resistor - Surface Mount RoHS
2512ROHS3 CompliantActive
RES 100Ω ±1% 3W 2512
- Manufacturer
- BOURNS
- Manufacturer part #
- CHP2512AFX-1000ELF
- Store part #
- C4232057
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
730 in stock
#C4232057
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.29 | ₹135.29 |
| 10+ | ₹110.42 | ₹1,104.20 |
| 30+ | ₹97.98 | ₹2,939.40 |
| 100+ | ₹85.77 | ₹8,577.00 |
| 500+ | ₹78.48 | ₹39,240.00 |
| 1,000+ | ₹74.62 | ₹74,620.00 |
1 × ₹135.29
₹135.29
excl. GST
₹159.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CHP2512AFX-1000ELF
₹135.29 for 1 + GST
Specifications
- Resistance
- 100Ω
- Power(Watts)
- 3W
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.106 g
Overview
Key features
- Rated voltage formula: V = √(P×R), where V = rated voltage (V), P = rated power (W), R = resistance (Ω)
- CHP0603A resistance coded in 3 digits: first two digits represent significant figures of nominal resistance (in ohms), third digit represents base-10 exponent
- CHP0805A, CHP1206A, CHP2512A: ±1% tolerance (E24/E96), resistance coded in 4 digits: first three digits represent significant figures of nominal resistance (in ohms), fourth digit represents base-10 exponent
- CHP0603A resistance may also be expressed as 2 digits followed by a letter multiplier
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 3522100RFT#C2076201TE Connectivity · 2512 | TE Connectivity | 2512 | 315 | ₹146.22 · 315 in stock | View |
 | NPTR2512F100RP9#C48982663RESI · 2512 | RESI | 2512 | 744 | ₹443.18 · 744 in stock | View |
| CHP2512-FX-1000ELF#C6533887BOURNS · 2512 | BOURNS | 2512 | On request | Price on request | Quote | |
| ALN2512F100RE-1#C5549668Ohmite · 2512 | Ohmite | 2512 | On request | Price on request | Quote | |
| ALN2512F100RE-4#C6499448Ohmite · 2512 | Ohmite | 2512 | On request | Price on request | Quote | |
