JSCJDatasheet (PDF)

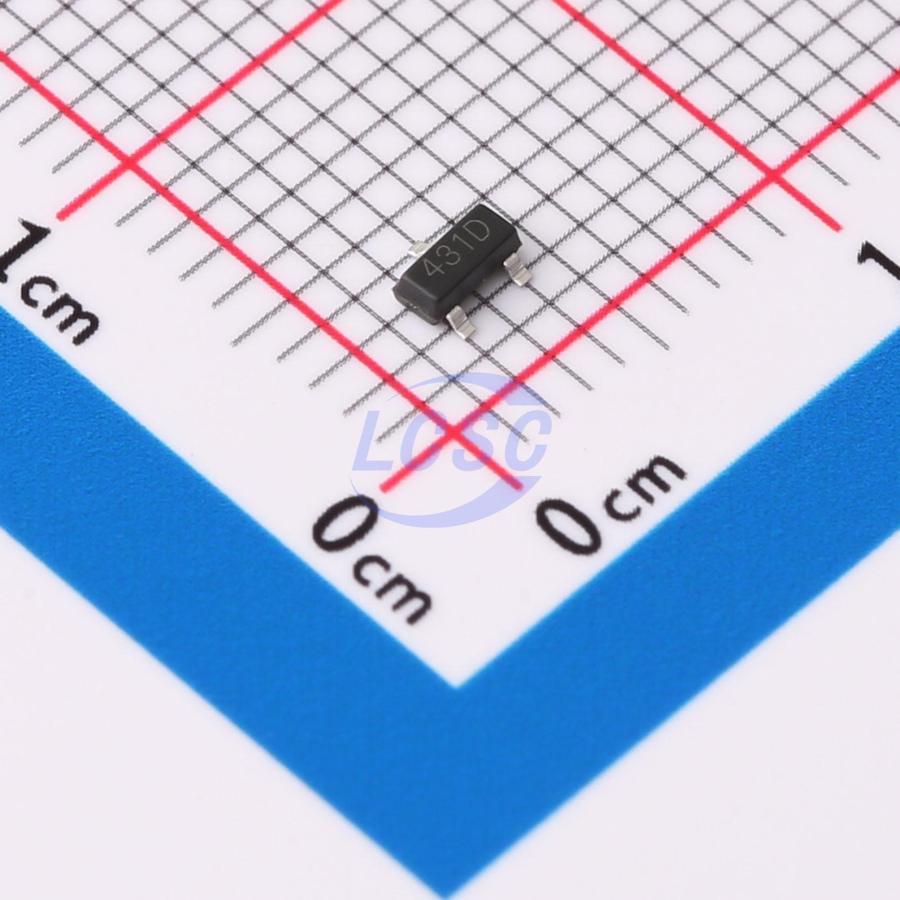

CJ431D-N3A-ARG
2.49V~36V ±0.4% 2.49V~36V 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS CompliantActive
Adjustable Precision Zener Shunt Regulator
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ431D-N3A-ARG
- Store part #
- C19078601
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,940 in stock
#C19078601
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.58 | ₹55.80 |
| 100+ | ₹4.51 | ₹451.00 |
| 300+ | ₹3.98 | ₹1,194.00 |
| 3,000+ | ₹3.57 | ₹10,710.00 |
| 6,000+ | ₹3.25 | ₹19,500.00 |
| 9,000+ | ₹3.08 | ₹27,720.00 |
10 × ₹5.58
₹55.80
excl. GST
₹65.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ431D-N3A-ARG
₹55.80 for 10 + GST
Specifications
- Quiescent Current
- 700nA
- Output Voltage
- 2.49V~36V
- Tolerance
- ±0.4%
- Voltage - Supply
- 2.49V~36V
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
The CJ431D / CD431D is a three terminal adjustable precision Zener shunt regulator with guaranteed thermal stability over a full operation range. It has sharp turn-on characteristics, low temperature coefficient and low output impedance, and the output voltage can be set to any value between V_REF and maximum cathode voltage by selecting two external resistors acting as voltage divider networks, which makes them ideal substitutes for Zener diodes in applications such as switching power supplies, chargers and other adjustable regulators.
Applications
- Adjustable Voltage and Current
- Referencing
- Secondary Side Regulation in Flyback
- SMPSs
- Zener Replacement
- Voltage Monitoring
- Comparator with Integrated Reference
Key features
- Adjustable Output Voltage: V_REF to 36 V
- Reference Voltage Tolerance at 25℃: Available in ±0.4% or ±0.8%
- Sink-current Capability: 1 to 100 mA
- Operation Ambient Temperature: -40 to 125℃
- Low Temperature Drift: 4.5 mV (Typ.)
- Excellent Temperature Coefficient: 20 ppm/℃ over the full temperature
- Low Dynamic Output Resistance: 0.15Ω (Typ.)
- Fast Turn-on Response
- Low Output Noise
- High Stability under Capacitive Load
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ431E-N3A-ARG#C47089387JSCJ · SOT-23 | JSCJ | SOT-23 | 4,740 | ₹4.68 · 4,740 in stock | View |
