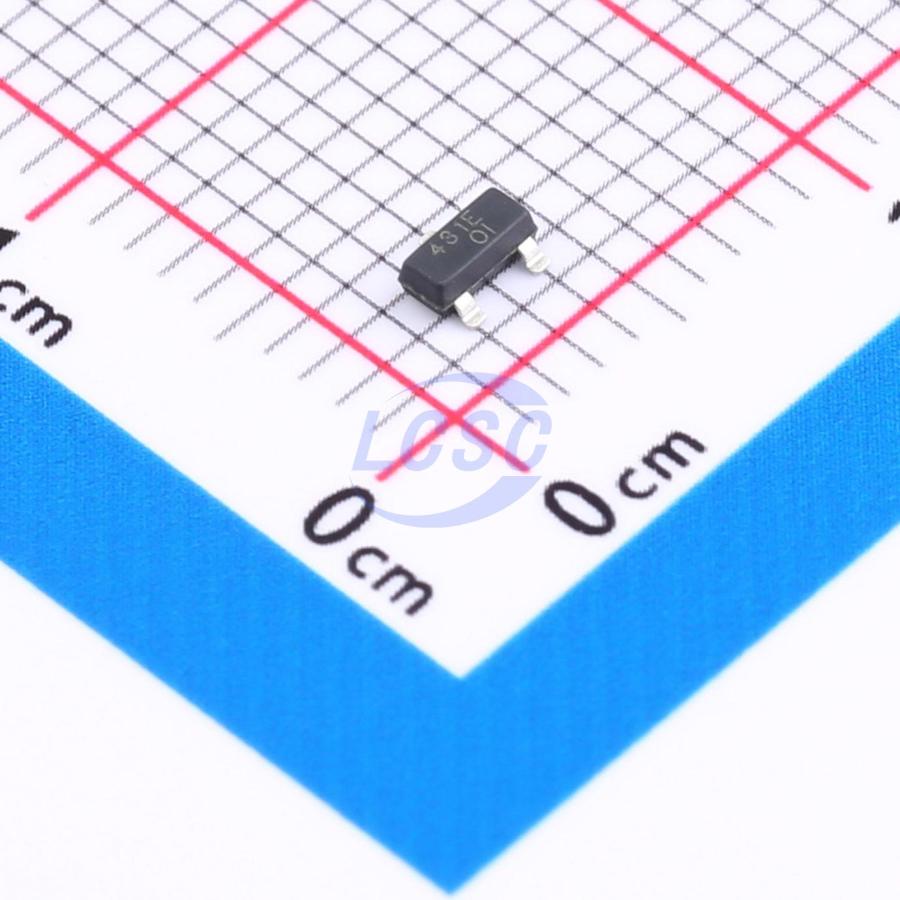

CJ431E-N3A-ARG
Shunt Voltage Reference IC Adjustable 2.49V~36V ±0.4% 100mA SOT-23
SOT-23ROHS CompliantActive
Adjustable Precision Zener Shunt Regulators, Voltage References
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ431E-N3A-ARG
- Store part #
- C47089387
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,740 in stock
#C47089387
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.68 | ₹93.60 |
| 200+ | ₹3.72 | ₹744.00 |
| 600+ | ₹3.18 | ₹1,908.00 |
| 3,000+ | ₹2.84 | ₹8,520.00 |
| 9,000+ | ₹2.57 | ₹23,130.00 |
| 21,000+ | ₹2.41 | ₹50,610.00 |
20 × ₹4.68
₹93.60
excl. GST
₹110.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ431E-N3A-ARG
₹93.60 for 20 + GST
Specifications
- Output Voltage
- 2.49V~36V
- Tolerance
- ±0.4%
- Voltage - Supply
- 2.5V~36V
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.032 g
Overview
CJ431E/CD431E is a three-terminal adjustable precision Zener shunt voltage regulator with guaranteed thermal stability over the entire operating range. It features sharp turn-on characteristics, low temperature drift, and low output impedance. By selecting two external resistors configured as a voltage divider network, the output voltage can be set to any value between VREF and the maximum cathode voltage, making it an ideal replacement for Zener diodes in applications such as switching power supplies, chargers, and other adjustable voltage regulators.
Applications
- Adjustable voltage and current reference
- Comparator with integrated reference
- Secondary-side regulation in flyback switching power supplies
- Voltage monitoring
- Zener diode replacement
Key features
- Adjustable output voltage: VREF to 36V
- Reference voltage tolerance at 25℃: ±0.4% or ±0.8% grades available
- Sink current capability: 1~100mA
- Excellent thermal performance: operating temperature TA: -40~125℃; low drift: 10mV (typical); excellent temperature coefficient: 50ppm/℃
- Low dynamic output impedance: 0.15Ω (typical)
- Fast turn-on response
- Low output noise
- High stability with capacitive loads
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ431D-N3A-ARG#C19078601JSCJ · SOT-23 | JSCJ | SOT-23 | 1,940 | ₹5.58 · 1,940 in stock | View |
