JSCJDatasheet (PDF)

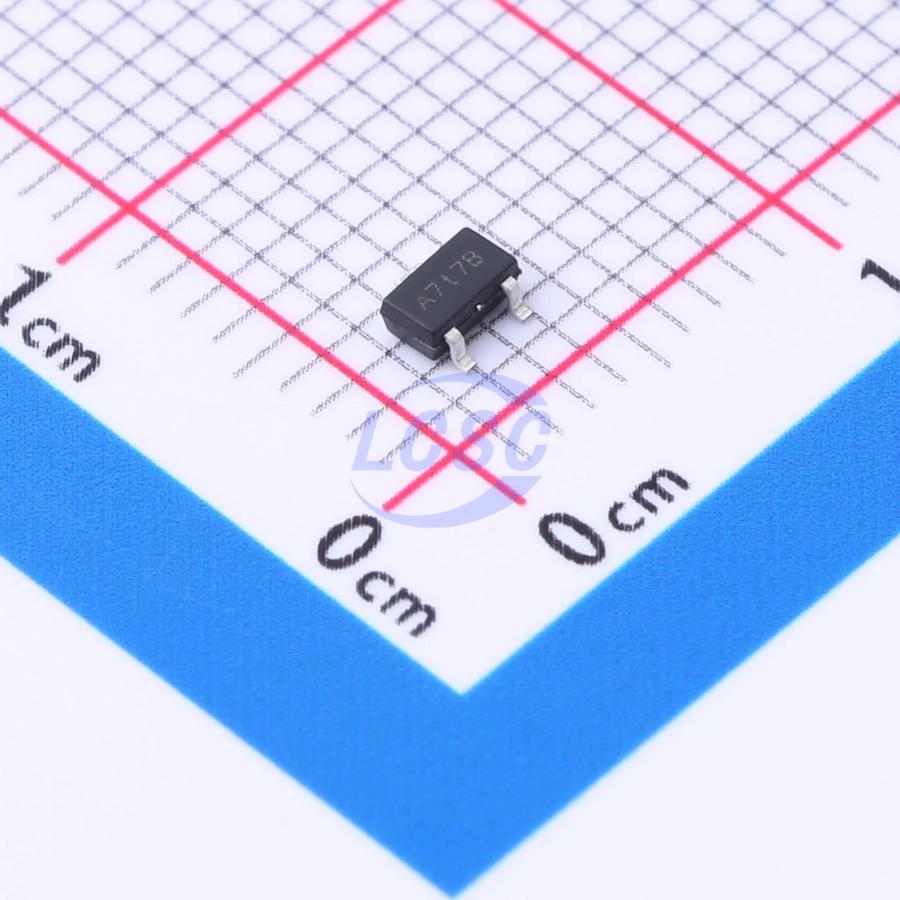

CJ6101A28M
2.8V Positive Fixed SOT-23-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-3LROHS CompliantSold out at source
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ6101A28M
- Store part #
- C2829337
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,550 in stock
#C2829337
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.34 | ₹66.70 |
| 50+ | ₹10.41 | ₹520.50 |
| 150+ | ₹8.96 | ₹1,344.00 |
| 500+ | ₹7.86 | ₹3,930.00 |
| 3,000+ | ₹6.99 | ₹20,970.00 |
| 6,000+ | ₹6.55 | ₹39,300.00 |
5 × ₹13.34
₹66.70
excl. GST
₹78.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ6101A28M
₹66.70 for 5 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 700nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 8V
- Features
- Enable control;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.248 g
Overview
The CJ6101 series are a group of positive voltage regulators manufactured by CMOS technologies with ultra low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small. The CJ6101 series can deliver 300mA output current and allow an input voltage as high as 8V. The series are very suitable for the battery-powered equipments, such as RF applications and other systems requiring a quiet voltage source.
Applications
- Portable consumer equipments
- Radio control systems
- Laptop, Palmtops and PDAs
- Wireless Communication Equipments
- Portable Audio Video Equipments
- Ultra Low Power Microcontroller
Key features
- Low Quiescent Current: 0.7μA
- Operating Voltage Range: 1.8V~8V
- Output Current: 300mA
- Low Dropout Voltage： 110mV@100mA(Vout = 3.3V)
- Output Voltage: 1.2~5.0V
- High Accuracy: ±2%/±1% （Typ.）
- High Power Supply Rejection Ratio: 50dB@1kHz
- Low Output Noise: 27xVOUT μVRMS (10Hz~100kHz)
- Excellent Line and Load Transient Response Built-in Current Limiter, Short-Circuit Protection
