JSCJDatasheet (PDF)

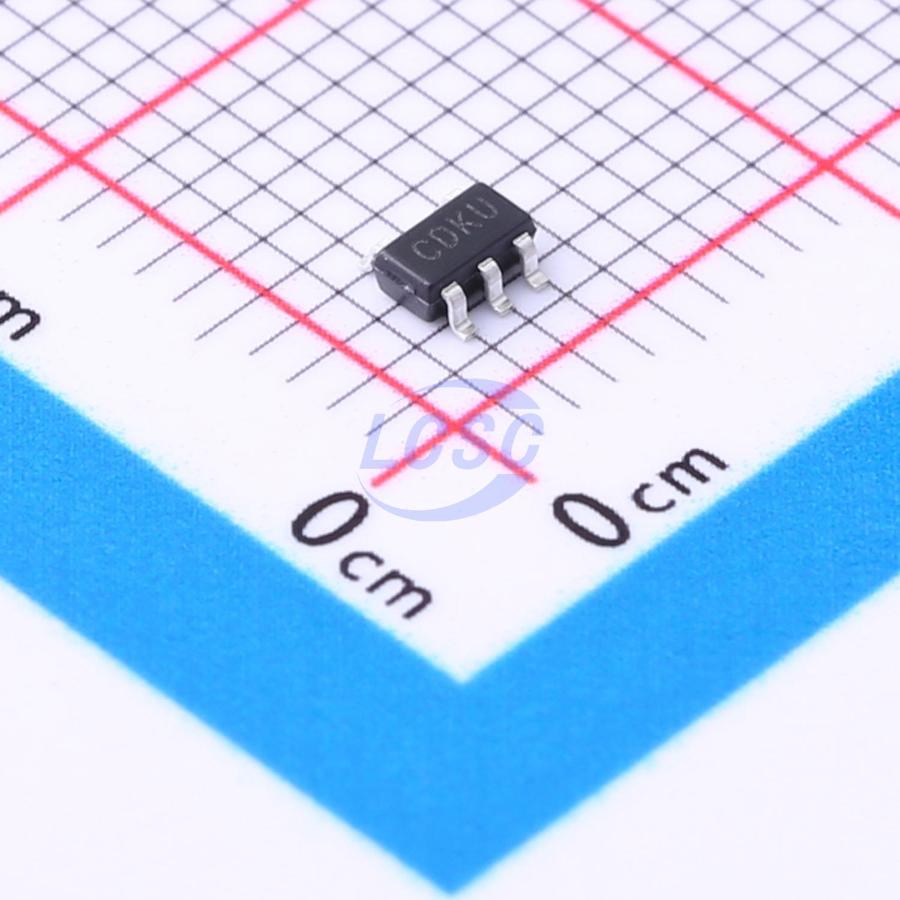

CJ6101B18M
1.8V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5LROHS CompliantActive
Ultra Low Current Consumption 300mA CMos Voltage Regulator
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ6101B18M
- Store part #
- C2829342
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,330 in stock
#C2829342
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.98 | ₹99.80 |
| 100+ | ₹8.04 | ₹804.00 |
| 300+ | ₹7.08 | ₹2,124.00 |
| 3,000+ | ₹6.36 | ₹19,080.00 |
| 6,000+ | ₹5.78 | ₹34,680.00 |
| 9,000+ | ₹5.49 | ₹49,410.00 |
10 × ₹9.98
₹99.80
excl. GST
₹117.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ6101B18M
₹99.80 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 700nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 8V
- Features
- Enable control;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.026 g
Overview
The CJ6101 series are a group of positive voltage regulators manufactured by CMOS technologies with ultra low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small. The CJ6101 series can deliver 300mA output current and allow an input voltage as high as 8V. The series are very suitable for the battery-powered equipments, such as RF applications and other systems requiring a quiet voltage source.
Applications
- Portable consumer equipments
- Radio control systems
- Laptop, Palmtops and PDAs
- Wireless Communication Equipments
- Portable Audio Video Equipments
- Ultra Low Power Microcontroller
Key features
- Low Quiescent Current: 0.7μA
- Operating Voltage Range: 1.8V~8V
- Output Current: 300mA
- Low Dropout Voltage： 110mV@100mA(VOUT = 3.3V)
- Output Voltage: 1.2~5.0V
- High Accuracy: ±2%/±1% （Typ.）
- High Power Supply Rejection Ratio: 50dB@1kHz
- Low Output Noise: 27xVOUT μVRMS (10Hz~100kHz)
- Excellent Line and Load Transient Response Built-in Current Limiter, Short-Circuit Protection
