JSCJDatasheet (PDF)

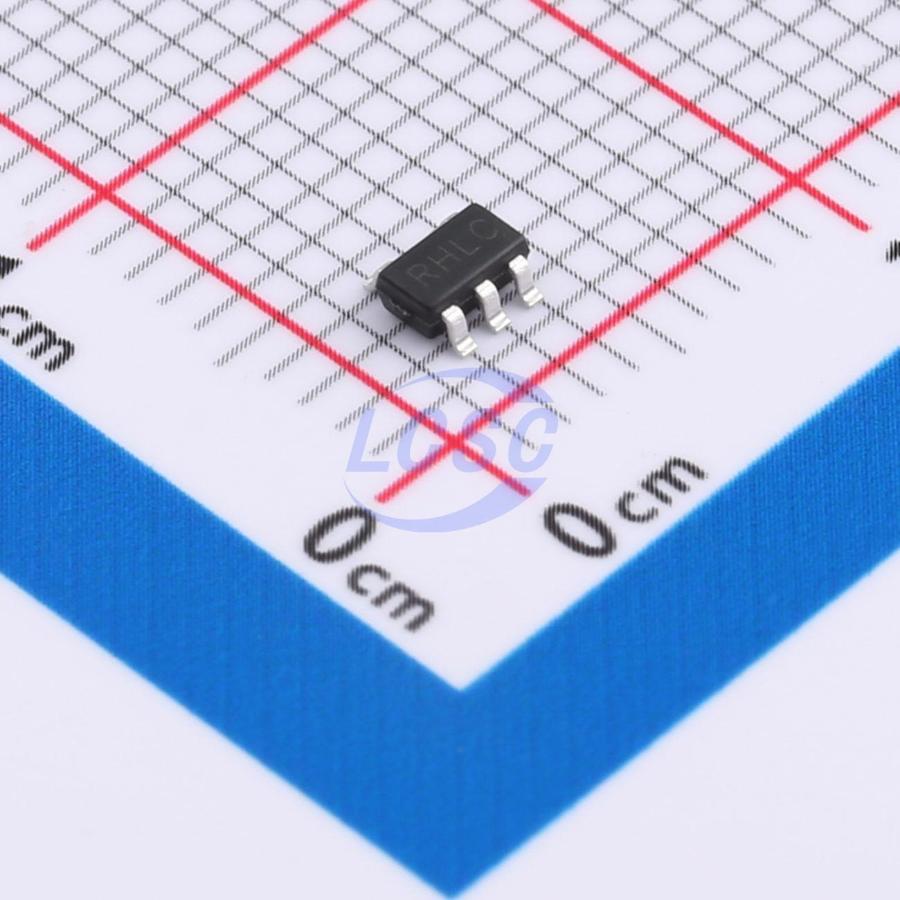

CJ6109B33M
3.3V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5LROHS CompliantActive
Ultra Fast High PSRR Low Noise CMOS Voltage Regulators
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ6109B33M
- Store part #
- C17703066
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30,240 in stock
#C17703066
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.79 | ₹63.95 |
| 50+ | ₹10.39 | ₹519.50 |
| 150+ | ₹9.19 | ₹1,378.50 |
| 500+ | ₹8.30 | ₹4,150.00 |
| 3,000+ | ₹7.57 | ₹22,710.00 |
| 6,000+ | ₹7.21 | ₹43,260.00 |
5 × ₹12.79
₹63.95
excl. GST
₹75.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ6109B33M
₹63.95 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Enable control;Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.057 g
Overview
The CJ6109 series are a group of positive voltage regulators manufactured by CMOS technology, which have high ripple rejection, ultra fast transient response and low dropout voltage, and can provide large output current even if the input and output voltage difference is small. Each of CJ6109 series consists of a high precision voltage reference, an error correction circuit and a current limiting output driver. Therefore, this series of products are very suitable for the following equipment application scenarios: industrial applications, battery power supply, wireless communication and so on.
Applications
- CD/DVD-ROM, CD/RW
- Wireless devices
- Battery charger
- Portable instrumentations
- PC peripherals
- Battery-Powered systems
Key features
- Guaranteed Output Current: 1.0A (Typ.)
- Low Quiescent Current: 70μA (Typ.)
- Output Voltage Range: 0.9V ~ 4.0V
- Input Voltage Range: 1.6V ~ 6.0V
- High Accuracy: ±2% (Typ.)
- Dropout Voltage: 320mV@1.0A (3.3V Typ.)
- Excellent Line Regulation: 0.02%N
- High PSRR: 70dB@10KHz
- Built-in Current Limiter & Thermal Protection
- Short Circuit Current Fold-back
- Output Capacitor: Ceramic Compatible
