JSCJDatasheet (PDF)

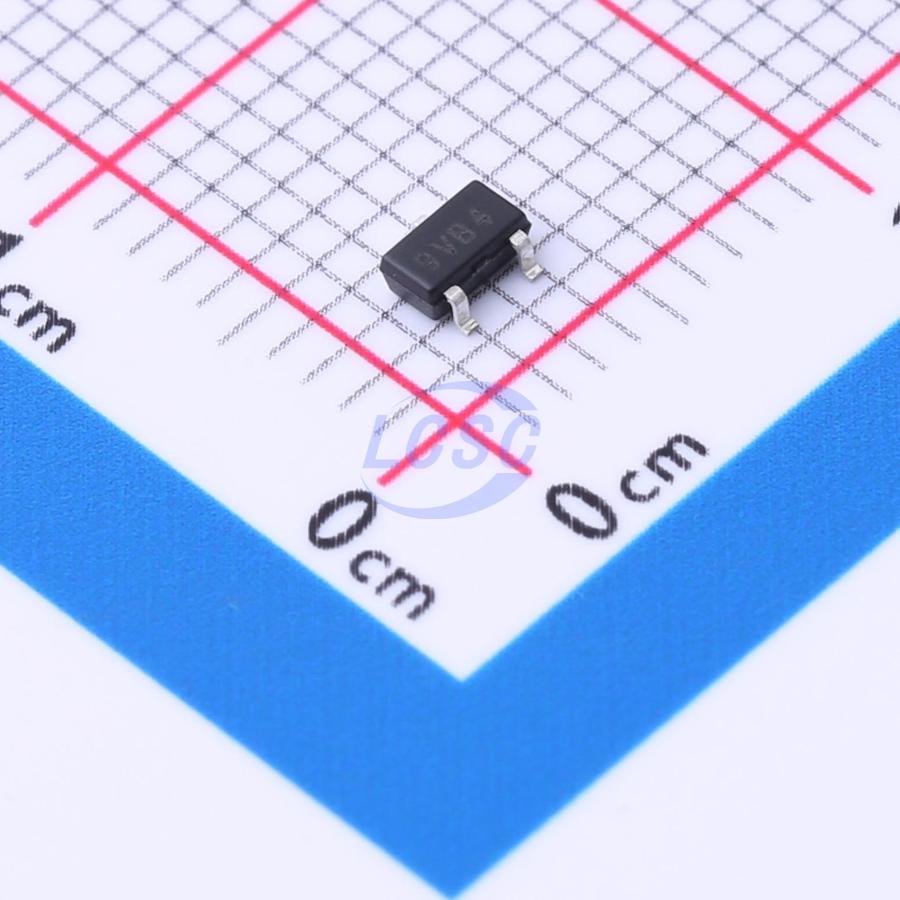

CJ6206A12M
1.2V Positive Fixed SOT-23-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-3LROHS CompliantSold out at source
Low Consumption Current High PSRR 300mA CMOS Voltage Regulators
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ6206A12M
- Store part #
- C2829352
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C2829352
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.73 | ₹77.30 |
| 100+ | ₹6.11 | ₹611.00 |
| 300+ | ₹5.29 | ₹1,587.00 |
| 3,000+ | ₹4.70 | ₹14,100.00 |
| 6,000+ | ₹4.21 | ₹25,260.00 |
| 9,000+ | ₹3.97 | ₹35,730.00 |
10 × ₹7.73
₹77.30
excl. GST
₹91.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ6206A12M
₹77.30 for 10 + GST
Specifications
- Output Voltage
- 1.2V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 7V
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
The CJ6206 series are a group of positive voltage regulators manufactured by CMOS technologies with high ripple rejection, low power consumption and low dropout voltage, which can prolong battery life in portable electronics. The CJ6206 series work with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications. The CJ6206 series consume less than 0.1uA in shutdown mode and have fast turn-on time less than 50us. The series are very suitable for the battery-powered equipments, such as RF applications and other systems requiring a quiet voltage source.
Applications
- Cellular and Smart Phones
- Laptop, Palmtops and PDA
- Digital Still and Video Cameras
- MP3, MP4 Player
- Radio control systems
- Battery-Powered Equipment
Key features
- Low Dropout Voltage：150mV@150mA
- Low Quiescent Current：5μA
- High Ripple Rejection：65dB@1kHz
- Excellent Line and Load Transient Response
- Operating Voltage：2.0V~7.0V
- Output Voltage：1.2~5.0V
- High Accuracy：±2% （Typ.）
- Built-in Current Limiter, Short-Circuit Protection
- TTL- Logic-Controlled Shutdown Input
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ6206A12N#C2829360JSCJ · SOT-23 | JSCJ | SOT-23 | 2,750 | ₹11.93 · 2,750 in stock | View |
