JSCJDatasheet (PDF)

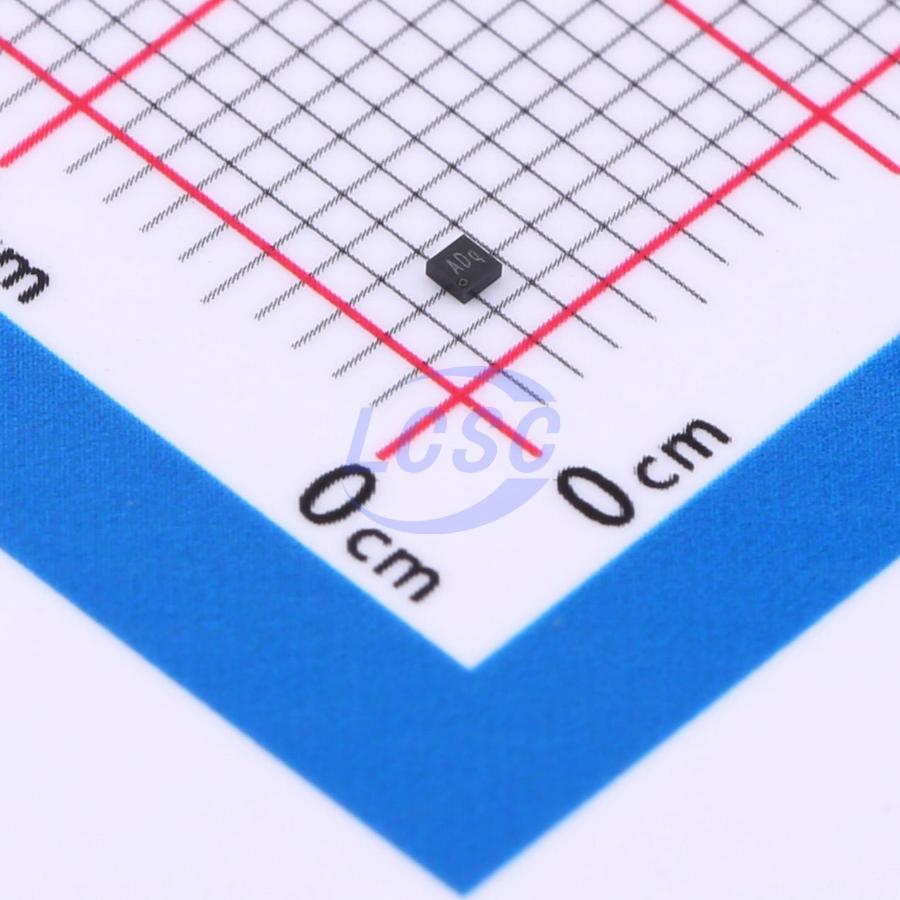

CJ6211B18F
1.8V Positive Fixed DFNWB-4L(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFNWB-4L(1x1)ROHS CompliantSold out at source
Ultra Fast High PSRR Low Noise CMOS Voltage Regulators
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ6211B18F
- Store part #
- C2992028
- Package / case
- DFNWB-4L(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,550 in stock
#C2992028
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.54 | ₹95.40 |
| 100+ | ₹7.79 | ₹779.00 |
| 300+ | ₹6.92 | ₹2,076.00 |
| 1,000+ | ₹6.27 | ₹6,270.00 |
| 5,000+ | ₹5.76 | ₹28,800.00 |
| 10,000+ | ₹5.49 | ₹54,900.00 |
10 × ₹9.54
₹95.40
excl. GST
₹112.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
CJ6211B18F
₹95.40 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Output Current
- 700mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.013 g
Overview
The CJ6211 series are a group of positive voltage regulators manufactured by CMOS technologies with high ripple rejection, ultra low noise, low power consumption and low dropout voltage, which can prolong battery life in portable electronics. The CJ6211 series work with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications. The CJ6211 series consume less than 0.1μA in shutdown mode and have fast turn-on time less than 50μs. The series are very suitable for the battery-powered equipments, such as RF applications and other systems requiring a quiet voltage source.
Applications
- Cellular and Smart Phones
- Laptop, Palmtops and PDA
- Digital Still and Video Cameras
- Portable Audio Video Equipments
- Radio control systems
- Battery-Powered Equipments
Key features
- High Ripple Rejection: 80dB@1kHz
- Low Dropout Voltage: 55mV @ 100mA
- Low Quiescent Current: 50μA
- Excellent Line and Load Transient Response
- Operating Voltage Range: 1.8V~6.0V
- Output Voltage Range: 0.8V~5.0V
- High Accuracy: ±2% (Typ.)
- Built-in Current Limiter, Short-Circuit Protection
- TTL-Logic-Controlled Shutdown Input
