JSCJDatasheet (PDF)

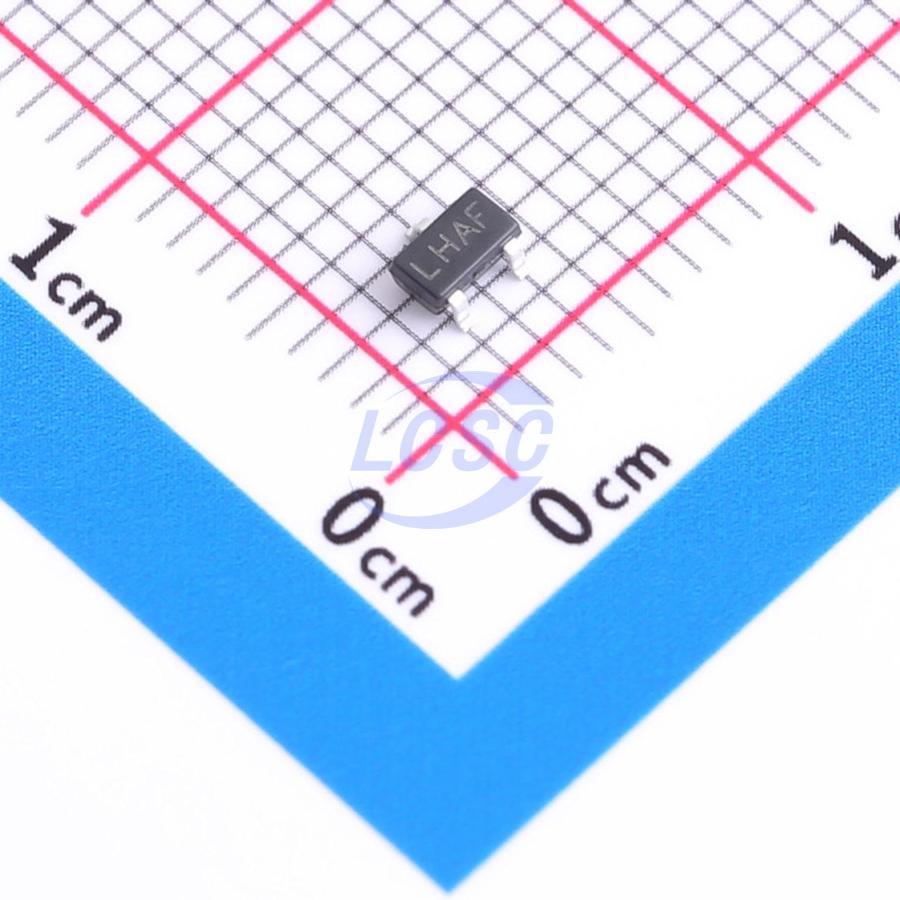

CJ6376A33M
3.3V Positive Fixed SOT-23-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-3LROHS CompliantActive
36V CMOS voltage regulator with low current consumption and 300mA output current
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ6376A33M
- Store part #
- C2829412
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,725 in stock
#C2829412
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.30 | ₹86.50 |
| 50+ | ₹14.05 | ₹702.50 |
| 150+ | ₹12.42 | ₹1,863.00 |
| 500+ | ₹11.19 | ₹5,595.00 |
| 3,000+ | ₹9.88 | ₹29,640.00 |
| 6,000+ | ₹9.39 | ₹56,340.00 |
5 × ₹17.30
₹86.50
excl. GST
₹102.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ6376A33M
₹86.50 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 36V
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
CJ6376 series is a group of positive voltage regulators manufactured by CMOS process, which has low power consumption and low dropout voltage. Even if the input and output voltage difference is very small, it can also provide larger output current. CJ6376 series can provide 300 mA output current and allow input voltage up to 36V. This series of products are very suitable for battery powered devices, such as RF applications and other systems requiring quiet voltage sources.
Applications
- Cordless Phones
- Radio Control Systems
- Laptop, Palmtops and PDAs
- Single-lens Reflex DSC
- PC Peripherals with Memory
- LAN Cards
- Ultra Low Power Microcontrollers
- Wireless Communication Equipments
- Portable Audio Video Equipments
- Car Navigation Systems
Key features
- Low Quiescent Current: 2μA
- Operating Voltage Range: 2.5V ~ 36V
- Output Current: 300mA
- Low Dropout Voltage: 200mV@100mA (VOUT = 3.3V)
- Output Voltage: 1.2 ~ 12V
- High Accuracy: ±2%/±1% (Typ.)
- High Power Supply Rejection Ratio: 70dB@1kHz
- Low Output Noise: 27xVOUT μVRMS (10Hz ~ 100kHz)
- Excellent Line and Load Transient Response
- Built-in Current Limiter, Short-Circuit Protection
- Over-Temperature Protection
