JSCJDatasheet (PDF)

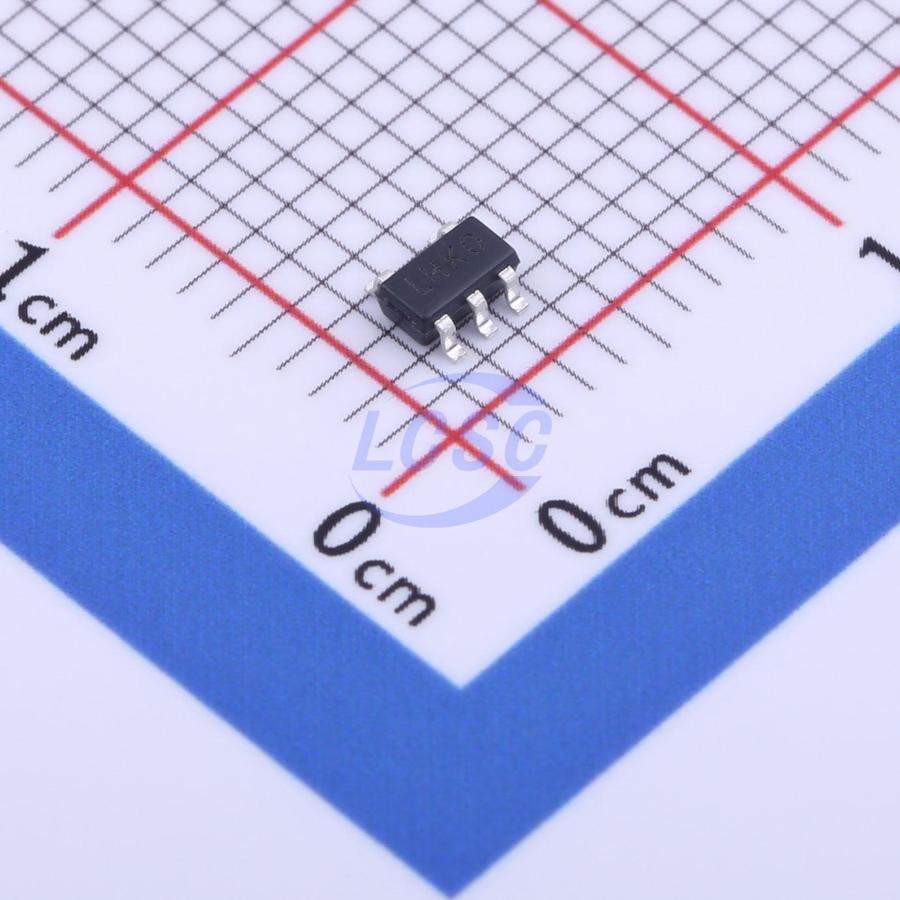

CJ6376B33M
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
36V CMOS voltage regulator with low current consumption and an output current of 300mA
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ6376B33M
- Store part #
- C2829413
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,565 in stock
#C2829413
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.89 | ₹84.45 |
| 50+ | ₹13.72 | ₹686.00 |
| 150+ | ₹12.13 | ₹1,819.50 |
| 500+ | ₹10.93 | ₹5,465.00 |
| 3,000+ | ₹9.64 | ₹28,920.00 |
| 6,000+ | ₹9.17 | ₹55,020.00 |
5 × ₹16.89
₹84.45
excl. GST
₹99.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ6376B33M
₹84.45 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 36V
- Features
- Enable control;Short Circuit Protection;Thermal shutdown;Output discharge;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
The CJ6376 Series are a group of positive voltage regulators manufactured by CMOS technologies with low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small. The CJ6376 Series can deliver 300 mA output current and allow an input voltage as high as 28V. The series are very suitable for the battery powered equipments, such as RF applications and other systems requiring a quiet voltage source.
Applications
- Cordless Phones
- Radio control systems
- Laptop, Palmtops and PDAs
- Single-lens reflex DSC
- PC peripherals with memory
- LAN Cards
- Ultra Low Power Microcontrollers
Key features
- Low Quiescent Current: 2 μA Operating Voltage Range: 2.5V ~ 36V
- Output Current: 300 mA
- Low Dropout Voltage: 200 mV@100 mA(VOUT = 3.3V) Output Voltage: 1.2 ~ 12V
- High Accuracy: ±2%/±1% (Typ.)
- High Power Supply Rejection Ratio: 70 dB@1 kHz Low Output Noise: 27xVOUT μVRMS(10 Hz ~ 100 kHz)
- Excellent Line and Load Transient Response Built-in Current Limiter, Short-Circuit Protection Over-Temperature Protection
