JSCJDatasheet (PDF)

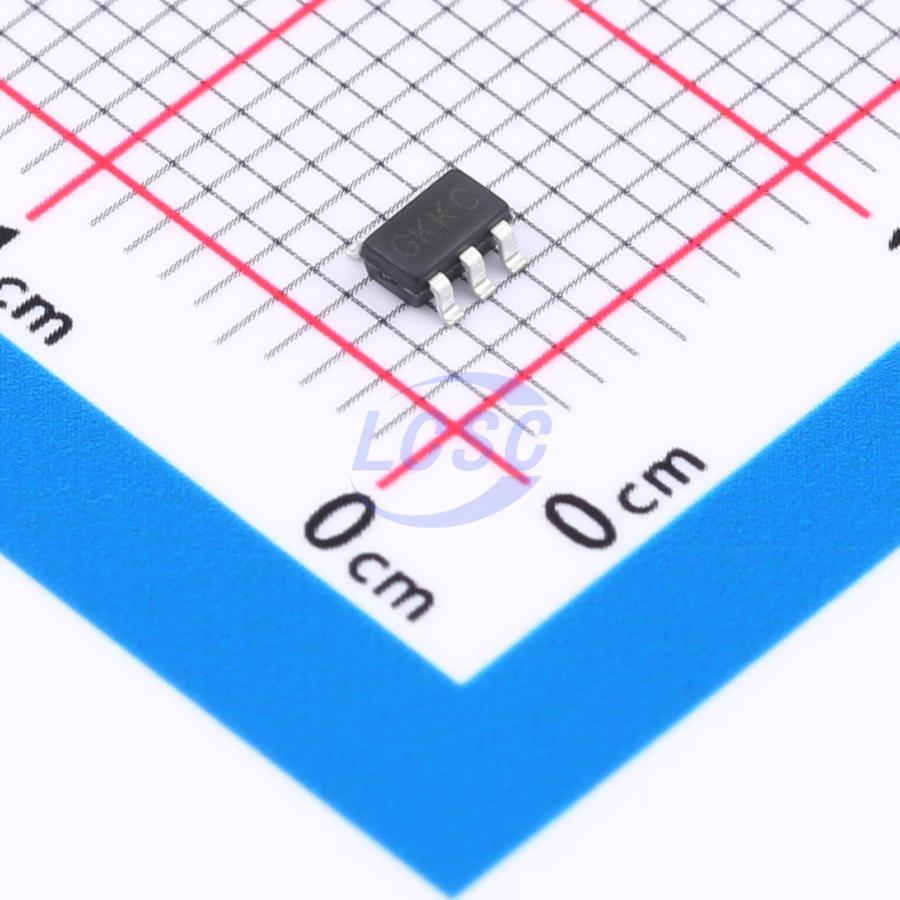

CJ6388B50M
5V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5LROHS CompliantActive
60V CMOS voltage regulator with low current consumption and an output current of 150mA
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ6388B50M
- Store part #
- C17703087
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,380 in stock
#C17703087
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.43 | ₹137.15 |
| 50+ | ₹21.91 | ₹1,095.50 |
| 150+ | ₹19.55 | ₹2,932.50 |
| 500+ | ₹16.60 | ₹8,300.00 |
| 3,000+ | ₹15.29 | ₹45,870.00 |
| 6,000+ | ₹14.50 | ₹87,000.00 |
5 × ₹27.43
₹137.15
excl. GST
₹161.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ6388B50M
₹137.15 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 60V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The CJ6388 series are a group of positive voltage regulators manufactured by CMOS technologies with low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small. The CJ6388 series can deliver 150mA output current and allow an input voltage as high as 60V. The series are very suitable for the battery-powered equipments, such as RF applications and other systems requiring a quiet voltage source.
Applications
- Cordless Phones
- Radio control systems
- Laptop, Palmtops and PDAs
- Single-lens reflex DSC
- PC peripherals with memory
- Wireless Communication Equipments
- Portable Audio Video Equipments
- Car Navigation Systems
- LAN Cards
- Ultra Low Power Microcontroller
Key features
- Low Quiescent Current: 3μA
- Operating Voltage Range: 2.5V~60V
- Output Current: 150mA
- Low Dropout Voltage： 500mV@50mA(VOUT=3.3V)
- Output Voltage: 1.2~12.0V
- High Accuracy: ±2 %/±1 % （Typ.）
- High Power Supply Rejection Ratio: 80dB@1kHz
- Low Output Noise: 27xVOUTμ VRMS(10Hz~100kHz)
- Excellent Line and Load Transient Response
- Built-in Current Limiter, Short-Circuit Protection
- Over-Temperature Protection
