JSCJDatasheet (PDF)

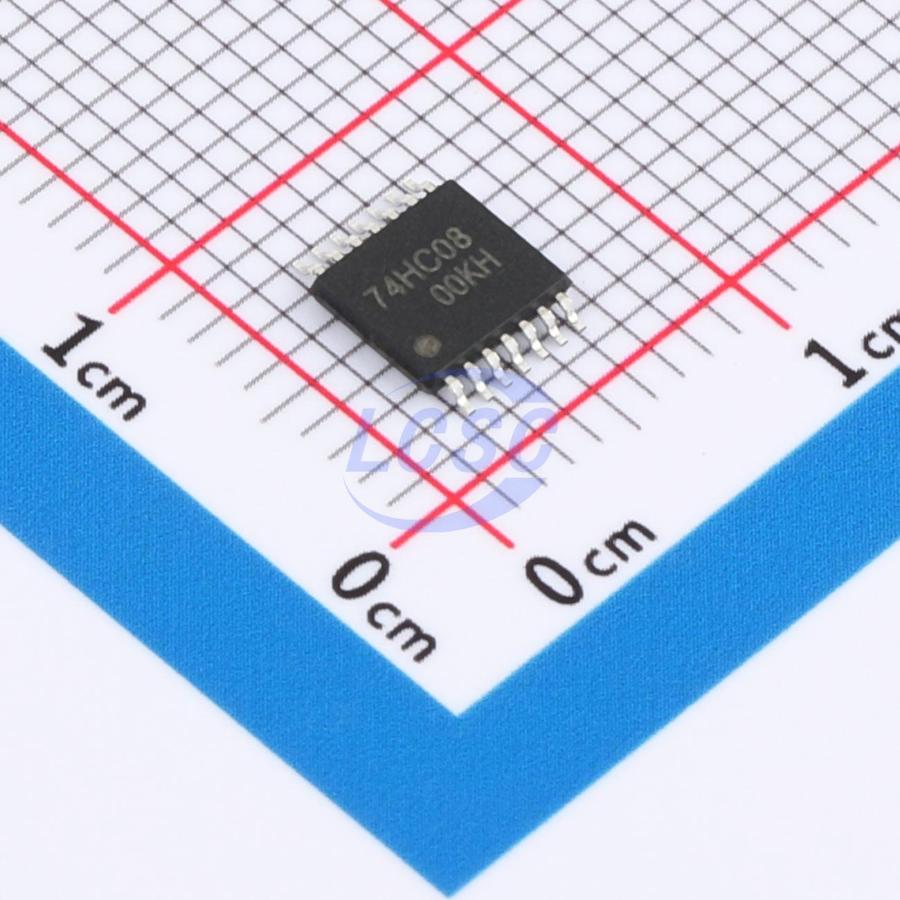

CJ74HC08BDN
StandardCMOS 2V~6V 15ns@6.0V 2uA TSSOP-14 Gates and Inverters
TSSOP-14RoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ74HC08BDN
- Store part #
- C52145458
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,200 in stock
#C52145458
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.50 | ₹112.50 |
| 50+ | ₹17.62 | ₹881.00 |
| 150+ | ₹15.52 | ₹2,328.00 |
| 500+ | ₹12.91 | ₹6,455.00 |
| 2,500+ | ₹11.75 | ₹29,375.00 |
| 5,000+ | ₹11.05 | ₹55,250.00 |
5 × ₹22.50
₹112.50
excl. GST
₹132.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CJ74HC08BDN
₹112.50 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 15ns@6.0V
- Output Logic Level - Low
- 260mV
- Features
- Overvoltage-tolerant input
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.24 g
Overview
This device is a quadruple 2-input AND gate. The inputs include clamping diodes, enabling the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
Applications
- Combined power good signal
- Enable digital signal
Key features
- CJ74HC08: CMOS levels
- CJ74HCT08: TTL levels
- Specified operating temperature range: -40℃ to +125℃
