JSCJ

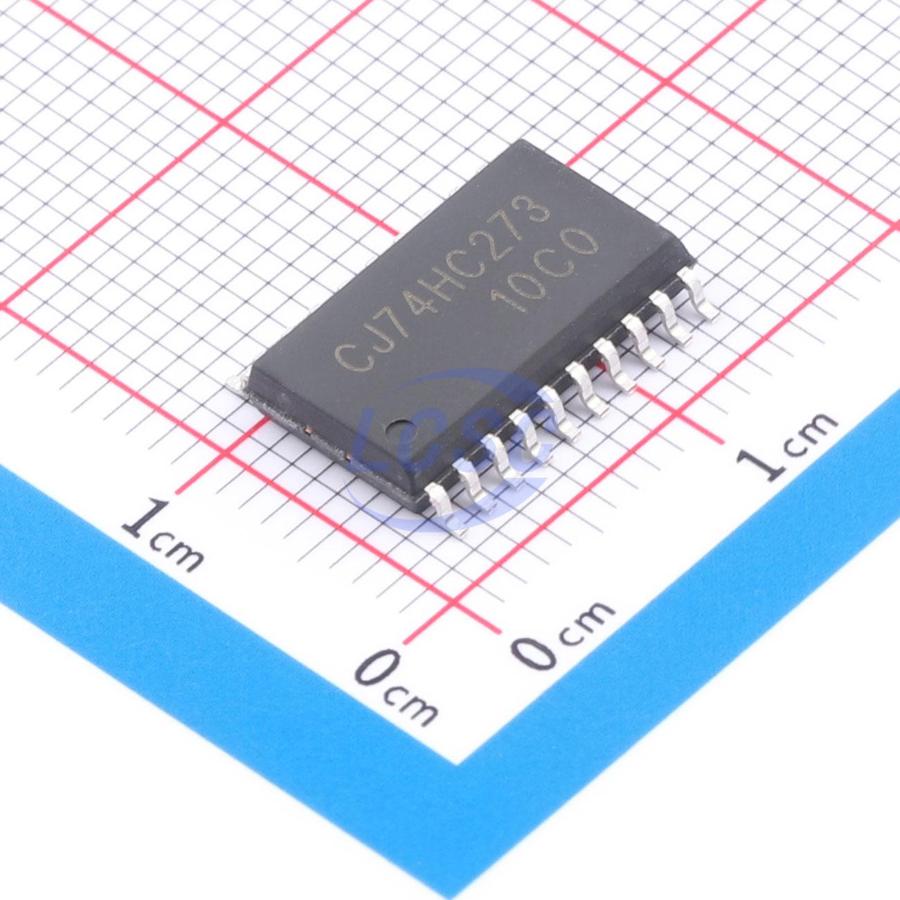

CJ74HC273AGN

2V~6V 8 1 15ns@5V,15pF SOP-20 Flip Flops

SOP-20RoHSActive

Manufacturer: JSCJ
Manufacturer part #: CJ74HC273AGN
Store part #: C52145537
Package / case: SOP-20
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,200 in stock

#C52145537

Stock & price checked 22 h ago

Quantity	Unit price	Pack price
5+	₹40.34	₹201.70
50+	₹31.62	₹1,581.00
150+	₹27.89	₹4,183.50
500+	₹23.23	₹11,615.00
2,000+	₹21.15	₹42,300.00
4,000+	₹19.91	₹79,640.00

Quantity (min 5, multiples of 5)

5 × ₹40.34

₹201.70

excl. GST

₹238.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

CJ74HC273AGN

₹201.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 2V~6V
Number of Bits per Element: 8
Output Type: Push-Pull
Operating Temperature: -40℃~+125℃
Series: 74HC Series
Synchronous/Asynchronous: Asynchronous
Current - Output High(IOH): 5.2mA
Number of Elements: 1
Current - Output Low(IOL): 5.2mA
Quiescent Current: 8uA
Setup Time: 12ns
Hold Time: 3ns
Propagation Delay: 15ns@5V,15pF
Trigger Type: Rising Edge

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.54 g

Overview

CJ74HC/HCT273 is an octal positive-edge-triggered D-type flip-flop. The device features a clock (CP) and master reset (/MR) input. On the low-to-high transition of the clock (CP), each output Qn will assume the state of its corresponding Dn input, provided the setup and hold time requirements have been met. A low level on /MR forces all outputs low, independent of clock and data inputs. Inputs include clamping diodes, enabling input interfacing to voltages exceeding VCC using current-limiting resistors.
