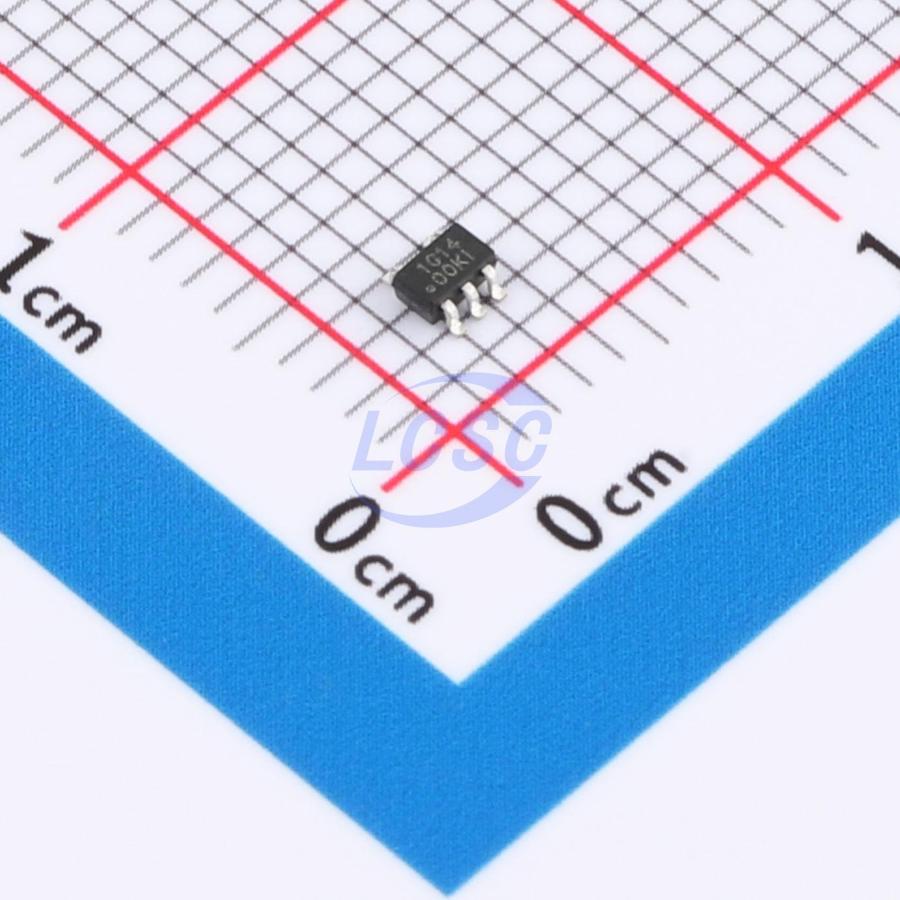

CJ74LVC1G14R5N
Schmitt trigger 1.65V~5.5V 12.5ns@5.5V,50pF 4uA 1 SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ74LVC1G14R5N
- Store part #
- C52145597
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
980 in stock
#C52145597
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.01 | ₹90.10 |
| 100+ | ₹7.08 | ₹708.00 |
| 300+ | ₹6.10 | ₹1,830.00 |
| 3,000+ | ₹5.37 | ₹16,110.00 |
| 6,000+ | ₹4.79 | ₹28,740.00 |
| 9,000+ | ₹4.50 | ₹40,500.00 |
10 × ₹9.01
₹90.10
excl. GST
₹106.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ74LVC1G14R5N
₹90.10 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Propagation Delay
- 12.5ns@5.5V,50pF
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.18 g
Overview
Provides inverting buffer functionality with Schmitt-trigger inputs, capable of converting slowly changing input signals into clean, well-defined, bounce-free output signals. Inputs can be driven by 3.3V or 5V devices, allowing the device to be used in mixed 3.3V/5V environments. The Schmitt-trigger action on the inputs makes the circuit tolerant of slower input rise and fall times. The device is fully suitable for partial power-down applications using IOFF. The IOFF circuit disables the outputs, preventing damaging backflow current when the device is powered down.
Applications
- AV receivers
- Audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- MP3 players/recorders
Key features
- Wide supply voltage range: 1.65V ~ 5.5V
- Output drive capability: ±24mA (VCC=3.0V)
- CMOS low power consumption
- Direct TTL-level interface compatible
- No restrictions on input rise and fall times
- Inputs accept voltages up to 5V
- Operating temperature range: -40℃ ~ +125℃
