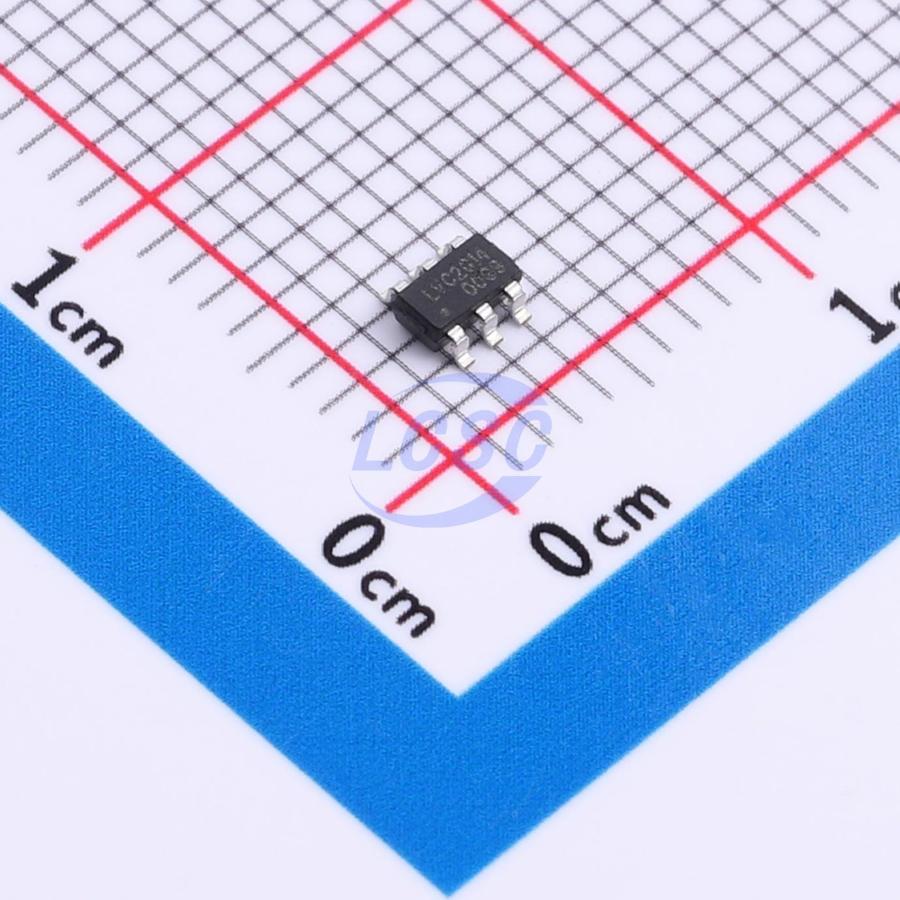

CJ74LVC2G14M6N
Schmitt trigger 1.65V~5.5V 10ns@5V,50pF 4uA 2 SOT-23-6 Gates and Inverters
SOT-23-6RoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ74LVC2G14M6N
- Store part #
- C52145641
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,100 in stock
#C52145641
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.27 | ₹56.35 |
| 50+ | ₹8.97 | ₹448.50 |
| 150+ | ₹7.82 | ₹1,173.00 |
| 500+ | ₹6.96 | ₹3,480.00 |
| 3,000+ | ₹6.26 | ₹18,780.00 |
| 6,000+ | ₹5.91 | ₹35,460.00 |
5 × ₹11.27
₹56.35
excl. GST
₹66.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ74LVC2G14M6N
₹56.35 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Propagation Delay
- 10ns@5V,50pF
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
This device provides two inverting buffers with Schmitt-trigger inputs, capable of converting slowly changing input signals into clean, well-defined, bounce-free output signals. The inputs can be driven by 3.3V or 5V devices, allowing this device to be used in mixed 3.3V and 5V environments. The Schmitt-trigger action at the inputs enables the circuit to tolerate slow input rise and fall times.
Applications
- Body Control Module
- Engine Control Module
- Server & High-Performance Computing
- Router
- Desktop PC
Key features
- Wide supply voltage range: 1.65V to 5.5V
- 5V-tolerant inputs, compatible with 5V logic interface
- ±24mA output drive capability (Vcc=3.0V)
- CMOS low power consumption
- Direct TTL-level interface compatible
- No restrictions on rise and fall times
- Operating temperature range: -40℃ ~ +125℃
