JSCJDatasheet (PDF)

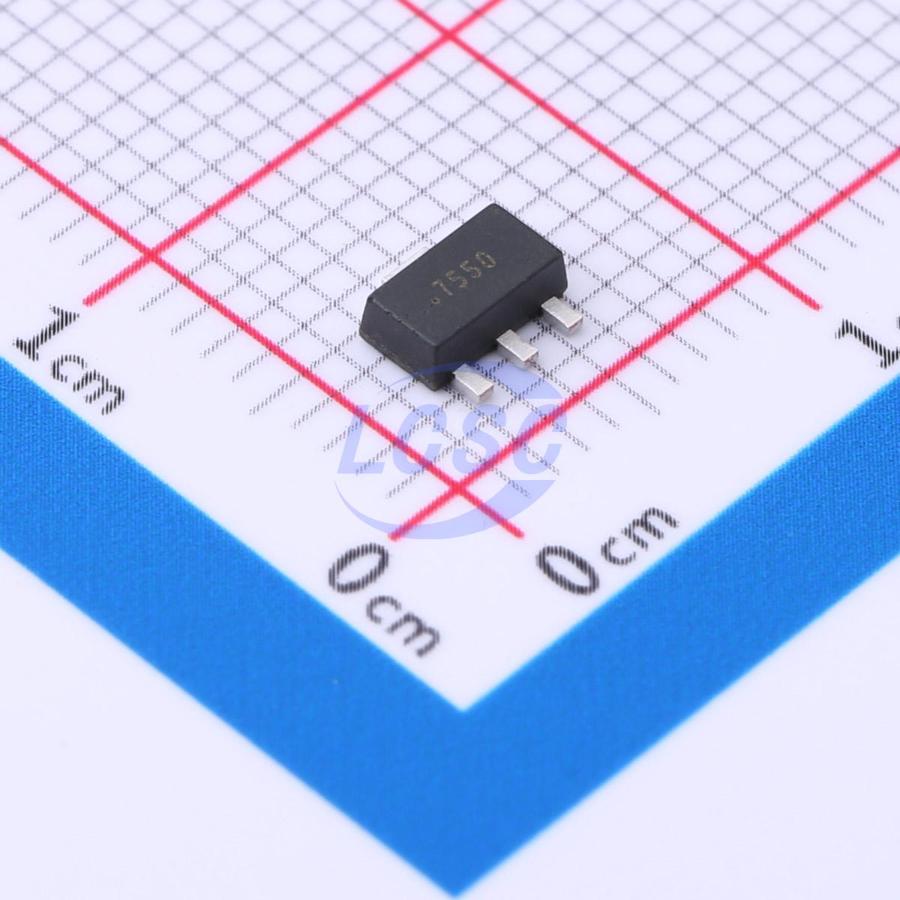

CJ7550S
5V Positive Fixed SOT-89-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3LROHS CompliantActive
36V low-power 300mA CMOS voltage regulator
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ7550S
- Store part #
- C2829418
- Package / case
- SOT-89-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,545 in stock
#C2829418
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.08 | ₹75.40 |
| 50+ | ₹12.17 | ₹608.50 |
| 150+ | ₹10.70 | ₹1,605.00 |
| 1,000+ | ₹9.60 | ₹9,600.00 |
| 2,000+ | ₹8.73 | ₹17,460.00 |
| 5,000+ | ₹8.30 | ₹41,500.00 |
5 × ₹15.08
₹75.40
excl. GST
₹88.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
CJ7550S
₹75.40 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 36V
- Output Type
- Fixed
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
The CJ75XXS Series are a group of positive voltage regulators manufactured by CMOS technologies with low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small. The CJ75XXS Series can deliver 300 mA output current and allow an input voltage as high as 36V. The series are very suitable for the battery powered equipments, such as RF applications and other systems requiring a quiet voltage source.
Applications
- Cordless Phones
- Radio control systems
- Laptop, Palmtops and PDAs
- Single-lens reflex DSC
- PC peripherals with memory
- Wireless Communication Equipments
- Portable Audio Video Equipments
- Car Navigation Systems
- LAN Cards
- Ultra Low Power Microcontrollers
Key features
- Low Quiescent Current: 2 μA
- Operating Voltage Range: 2.5V ~ 36V
- Output Current: 300 mA
- Low Dropout Voltage: 200 mV@100 mA(VOUT = 3.3V)
- Output Voltage: 1.2 ~ 12V
- High Accuracy: ±2% (Typ.)
- High Power Supply Rejection Ratio: 70 dB@1kHz
- Low Output Noise: 27xVOUT μVRMS(10Hz ~ 100kHz)
- Excellent Line and Load Transient Response
- Built-in Current Limiter, Short-Circuit Protection
- Over-Temperature Protection
