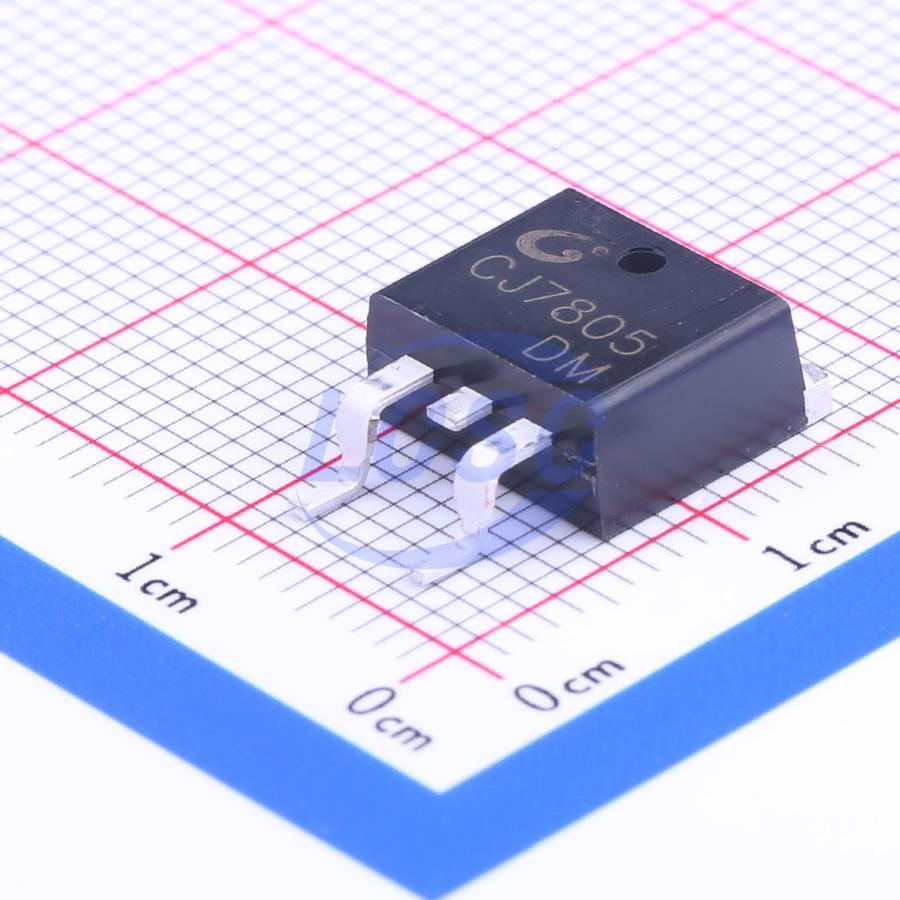

CJ7805

The CJ78 series is a group of three terminal positive voltage linear regulators with multiple fixed output voltages. Under the condition of good heat dissipation, it can provide output current up to 1.5A, and has the functions of internal short circuit protection, thermal shutdown protection and output transistor SOA protection, which make it relatively difficult to damage. Although designed as fixed voltage regulators without external components, these devices can be used with external components to obtain adjustable voltage and current. Therefore, the CJ78 series is widely used as fixed voltage regulators, including local (on card) regulators, to eliminate noise and power distribution problems associated with single point regulation.

Applications

• AC Inventors
• DC Motor Drivers
• Household Electric Appliances
• HVAC Systems
• Industrial Power Supplies
• SMPS Post Regulation
• Solar Energy String Inventors
• Test and Measurement Equipment

Key features

• Output Current: up to 1.5A at T_J = 25°C
• Available in Fixed 5.0V, 6.0V, 8.0V, 9.0V and 12V Output Voltage Tolerance: ±3% at T_J = 25°C
• Line Regulation: 4mV at T_J = 25°C from 7V to 25V
• Load Regulation: 9mV at T_J = 25°C from 5mA to 1.5A
• Dropout Voltage: 2V@1A (V_OUT = 5.0V)
• Power Supply Rejection Ratio: 60dB@120Hz (V_OUT = 5.0V)
• Operating Junction Temperature: -40~125°C
• Short Circuit Protection
• Output Transistor SOA Protection
• Thermal Shutdown Protection
