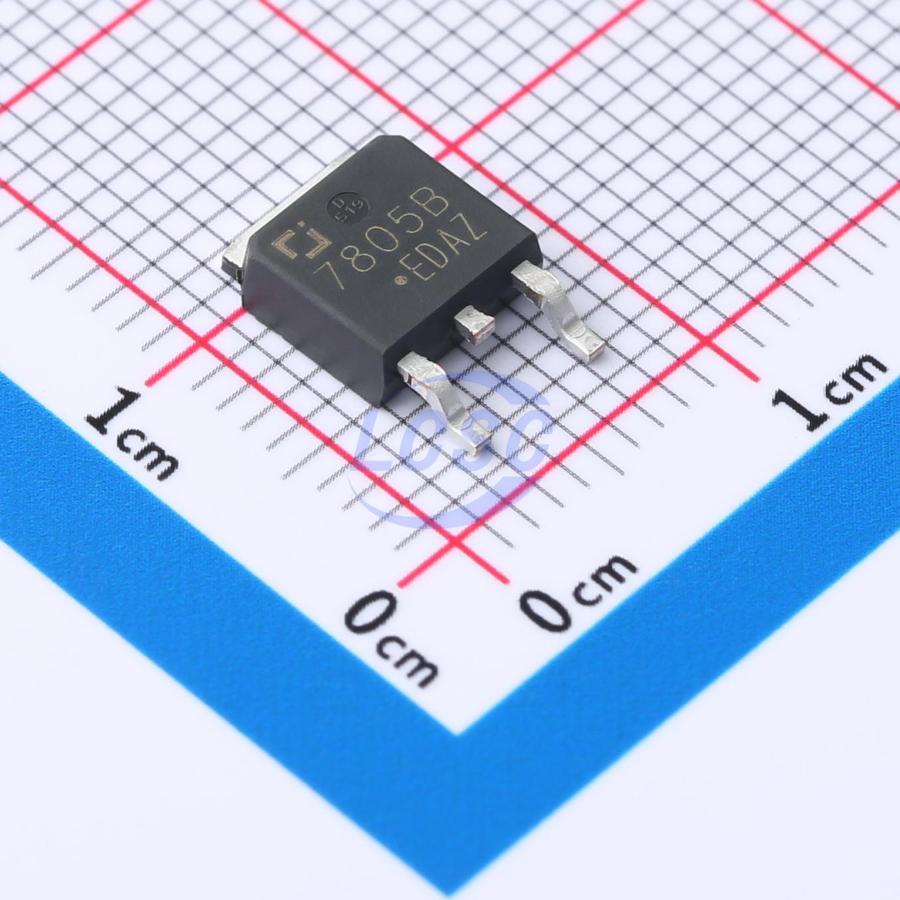

CJ7805B-TFN-ARG

The CJ7800B series is a group of three terminal positive voltage linear regulators with multiple fixed output voltages. Under the condition of good heat dissipation, it can provide output current up to 1A, and has the functions of internal current limit, short circuit protection, thermal shutdown protection and output transistor SOA protection, which make it relatively difficult to damage. Although designed as fixed voltage regulators without external components, these devices can be used with external components to obtain adjustable voltage and current. Therefore, the CJ7800B series is widely used as fixed voltage regulators, including local (on card) regulators, to eliminate noise and power distribution problems associated with single point regulation.

Applications

• AC Inventors
• DC Motor Drivers
• Household Electric Appliances
• HVAC Systems
• Industrial Power Supplies
• SMPS Post Regulation
• Solar Energy String Inventors
• Test and Measurement Equipment

Key features

• Available Fixed Output Voltage: 5.0V, 6.0V, 8.0V, 9.0V, 12V, 15V
• Output Current: up to 1A at T_J = 25°C
• Output Voltage Tolerance at T_J = 25°C: ±2% for Conventional Device, ±1% can be Customized
• Operating Junction Temperature: -40~125°C
• Output Voltage Tolerances of ±4% over the Temperature Range
• Dropout Voltage: 2V@1A
• Power Supply Rejection Ratio: 70dB@120Hz (V_OUT = 5.0V)
• Output Transistor SOA Protection
• Internal Current Limit
• Short Circuit Protection
• Thermal Shutdown Protection
