JSCJ

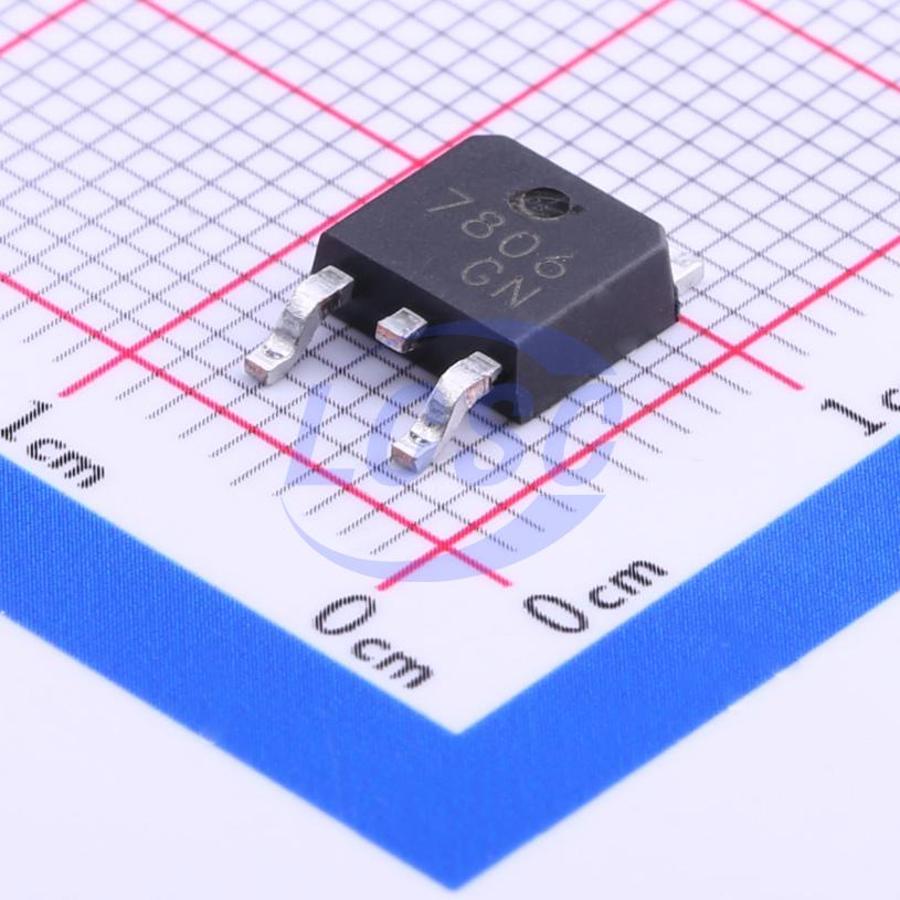

CJ7806

Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A TO-252-2(DPAK)

TO-252-2(DPAK)ROHS CompliantActive

Plastic-Encapsulate Voltage Regulators，Three-terminal positive voltage regulator

Manufacturer: JSCJ
Manufacturer part #: CJ7806
Store part #: C188194
Package / case: TO-252-2(DPAK)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,740 in stock

#C188194

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹26.46	₹132.30
50+	₹20.74	₹1,037.00
150+	₹18.30	₹2,745.00
500+	₹15.25	₹7,625.00
2,500+	₹13.89	₹34,725.00
5,000+	₹13.07	₹65,350.00

Quantity (min 5, multiples of 5)

5 × ₹26.46

₹132.30

excl. GST

₹156.11 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

CJ7806

₹132.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 6V
Number of Outputs: 1
Operating Temperature: -25℃~+125℃@(Tj)
Supply Current (Iq): 4.3mA
Output Configuration: Positive
Operating Voltage: 35V
Output Current: 1.5A
Features: Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.516 g

Overview

Key features

Maximum output current IOM: 1.5 A
Output voltage VO: 6V
Continuous total dissipation PD: 1.25 W (Ta = 25℃)
