JSCJDatasheet (PDF)

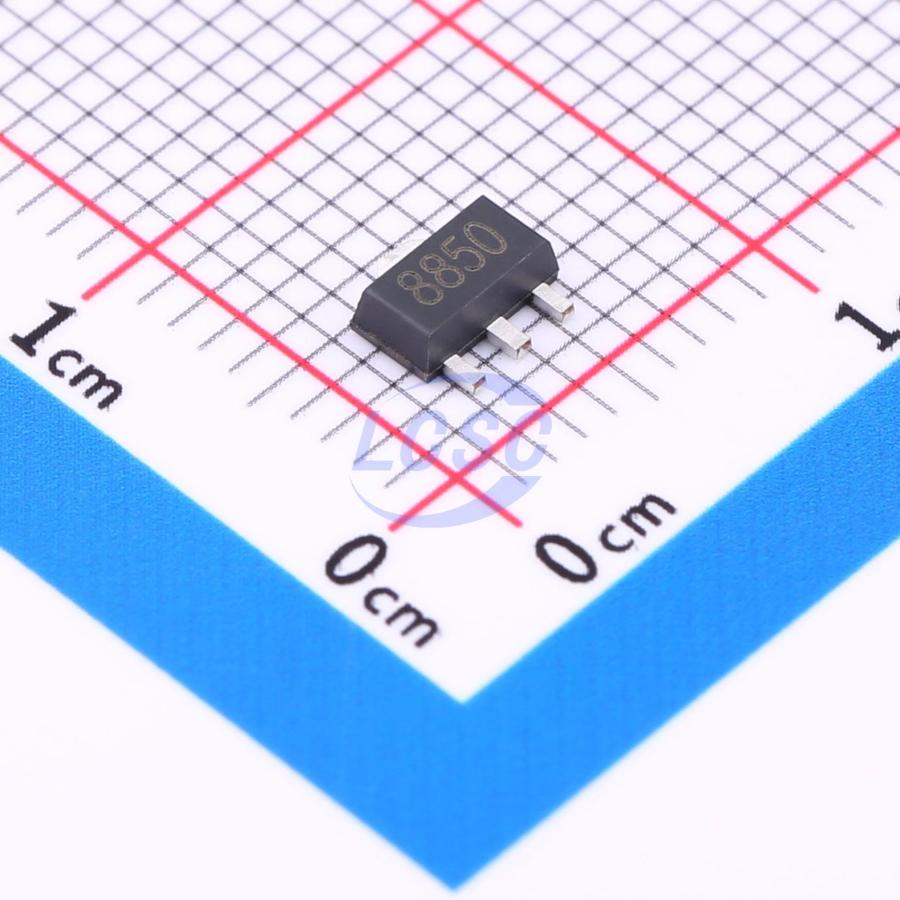

CJ8850
5V Positive Fixed SOT-89-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3LROHS CompliantActive
60V CMOS voltage regulator with low current consumption and an output current of 150mA
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ8850
- Store part #
- C17703094
- Package / case
- SOT-89-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,275 in stock
#C17703094
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.88 | ₹139.40 |
| 50+ | ₹22.31 | ₹1,115.50 |
| 150+ | ₹19.91 | ₹2,986.50 |
| 1,000+ | ₹16.93 | ₹16,930.00 |
| 2,000+ | ₹15.61 | ₹31,220.00 |
| 5,000+ | ₹14.82 | ₹74,100.00 |
5 × ₹27.88
₹139.40
excl. GST
₹164.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
CJ8850
₹139.40 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5uA
- Output Configuration
- Positive
- Operating Voltage
- 60V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.178 g
Overview
The CJ88XX series are a group of positive voltage regulators manufactured by CMOS technologies with low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small. The CJ88XX series can deliver 150mA output current and allow an input voltage as high as 60V. The series are very suitable for the battery-powered equipments, such as RF applications and other systems requiring a quiet voltage source.
Applications
- Cordless Phones
- Radio control systems
- Laptop, Palmtops and PDAs
- Single-lens reflex DSC
- PC peripherals with memory
- Wireless Communication Equipments
- Portable Audio Video Equipments
- Car Navigation Systems
- LAN Cards
- Ultra Low Power Microcontroller
Key features
- Low Quiescent Current: 3μA
- Operating Voltage Range: 2.5V~60V
- Output Current: 150mA
- Low Dropout Voltage： 500mV@50mA(VOUT=3.3V)
- Output Voltage: 1.2~12.0V
- High Accuracy: ±2% （Typ.）
- High Power Supply Rejection Ratio: 80dB@1kHz
- Low Output Noise: 27xVOUTμ VRMS(10Hz~100kHz)
- Excellent Line and Load Transient Response
- Built-in Current Limiter, Short-Circuit Protection
- Over-Temperature Protection
