JSCJDatasheet (PDF)

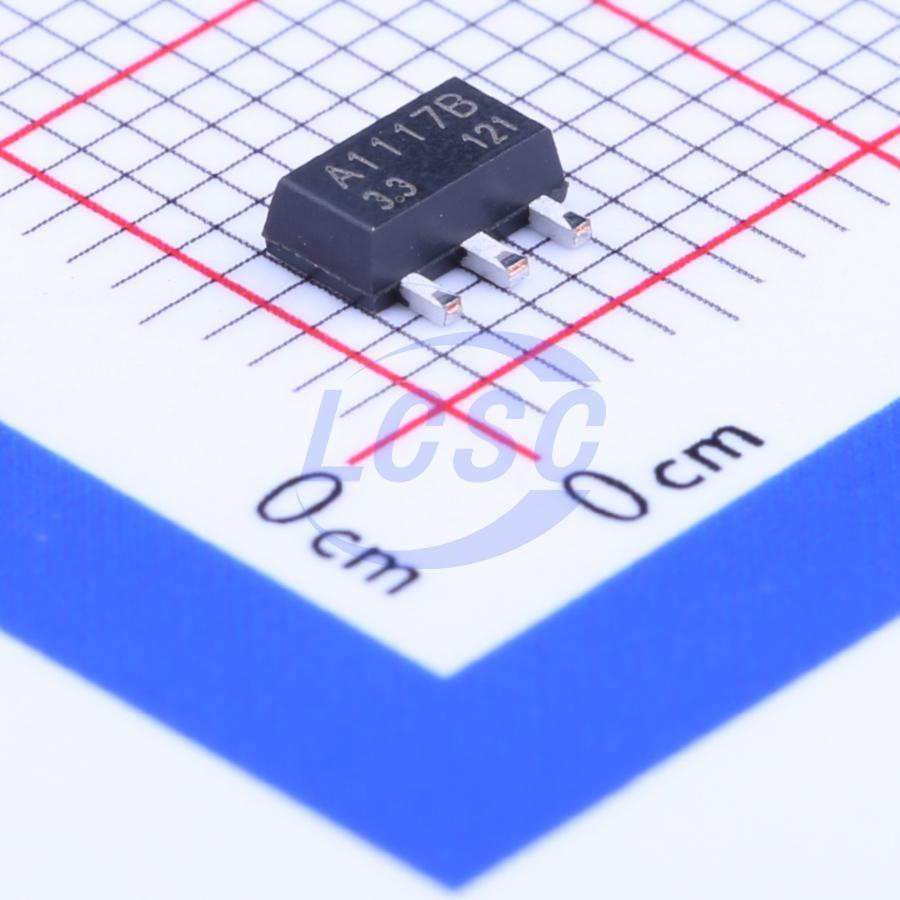

CJA1117B-3.3
3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS CompliantActive
Input 15V, Output 3.3V 1A
- Manufacturer
- JSCJ
- Manufacturer part #
- CJA1117B-3.3
- Store part #
- C24253
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
83,360 in stock
#C24253
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.23 | ₹82.30 |
| 100+ | ₹6.69 | ₹669.00 |
| 300+ | ₹5.91 | ₹1,773.00 |
| 1,000+ | ₹5.27 | ₹5,270.00 |
| 5,000+ | ₹5.04 | ₹25,200.00 |
| 10,000+ | ₹4.88 | ₹48,800.00 |
10 × ₹8.23
₹82.30
excl. GST
₹97.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
CJA1117B-3.3
₹82.30 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.147 g
Overview
The CJA1117B-XXX is a series of low dropout three-terminal regulators with a dropout of 1.15V at 1A output current. The CJA1117B-XXX series provides current limiting and thermal shutdown. Its circuit includes a trimmed bandage reference to assure output voltage accuracy to be within 1.5%. Current limit is trimmed to ensure specified output current and controlled short-circuit current. On-chip thermal shutdown provides protection against any combination of overload and ambient temperature that would create excessive junction temperature. The CJA1117B-XXX has an adjustable version, that can provide the output voltage from 1.25V to 5V with only 2 external resistors.
Applications
- PC Motherboard
- LCD Monitor
- Graphic Card
- DVD-Video Player
- NIC/Switch
- Telecom Modem
- ADSL Modem
- Printer and other peripheral Equipment
Key features
- Low Dropout Voltage: 1.15V at 1A Output Current
- Trimmed Current Limit
- On-Chip Thermal Shutdown
- Three-Terminal Adjustable or Fixed 1.8V, 2.5V, 3.3V, 5V Operation
- Junction Temperature: -25°C to 125°C
