JSCJDatasheet (PDF)

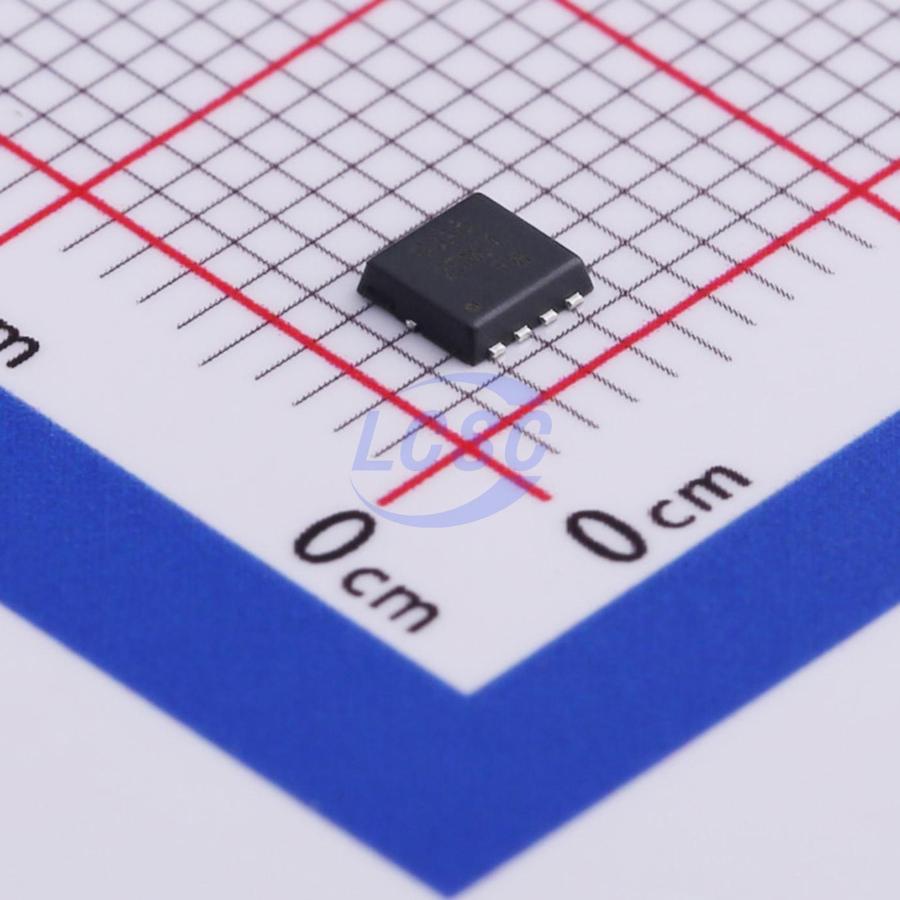

CJAB25N04
N-Channel 40V 25A 3W PDFNWB3.3x3.3-8L
PDFNWB3.3x3.3-8LROHS CompliantActive
MOSFET N-CH 40V 25A PDFNWB3.3x3.3-8L
- Manufacturer
- JSCJ
- Manufacturer part #
- CJAB25N04
- Store part #
- C504066
- Package / case
- PDFNWB3.3x3.3-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
565 in stock
#C504066
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.25 | ₹161.25 |
| 50+ | ₹25.03 | ₹1,251.50 |
| 150+ | ₹21.94 | ₹3,291.00 |
| 500+ | ₹18.07 | ₹9,035.00 |
| 2,500+ | ₹16.34 | ₹40,850.00 |
| 5,000+ | ₹15.31 | ₹76,550.00 |
5 × ₹32.25
₹161.25
excl. GST
₹190.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CJAB25N04
₹161.25 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 155pF
- Ciss-Input Capacitance
- 1.98nF
- Pd - Power Dissipation
- 3W
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 25A
- Reverse Transfer Capacitance (Crss)
- 125pF
- RDS(on)
- 16mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.118 g
Overview
The CJAB25N04 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications
Applications
- SMPS and general purpose applications
- Uninterruptible Power Supply
- Hard switched and high frequency circuits
- Power management
Key features
- High Power and current handing capability Good stability and uniformity with high EAS
- Load switch
- Excellent package for good heat dissipation
- High density cell design for ultra low RDS(ON)
- Lead free product is acquired
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJAB25N04S#C504067JSCJ · PDFNWB3.3x3.3-8L | JSCJ | PDFNWB3.3x3.3-8L | 1,475 | ₹27.29 · 1,475 in stock | View |
 | CJAB25N04A#C47089384JSCJ · PDFNWB3.3x3.3-8L | JSCJ | PDFNWB3.3x3.3-8L | 9,890 | ₹28.75 · 9,890 in stock | View |
 | CJAB65N04#C19269014JSCJ · PDFNWB3.3x3.3-8L | JSCJ | PDFNWB3.3x3.3-8L | 175 | ₹53.46 · 175 in stock | View |
 | CJAB3R9SN04C#C19268995JSCJ · PDFNWB3.3x3.3-8L | JSCJ | PDFNWB3.3x3.3-8L | On request | ₹39.04 · 0 in stock | View |
 | CJAB40SN10#C504073JSCJ · PDFNWB-8-EP(3.3x3.3) | JSCJ | PDFNWB-8-EP(3.3x3.3) | On request | ₹80.82 · 0 in stock | View |
