JSCJDatasheet (PDF)

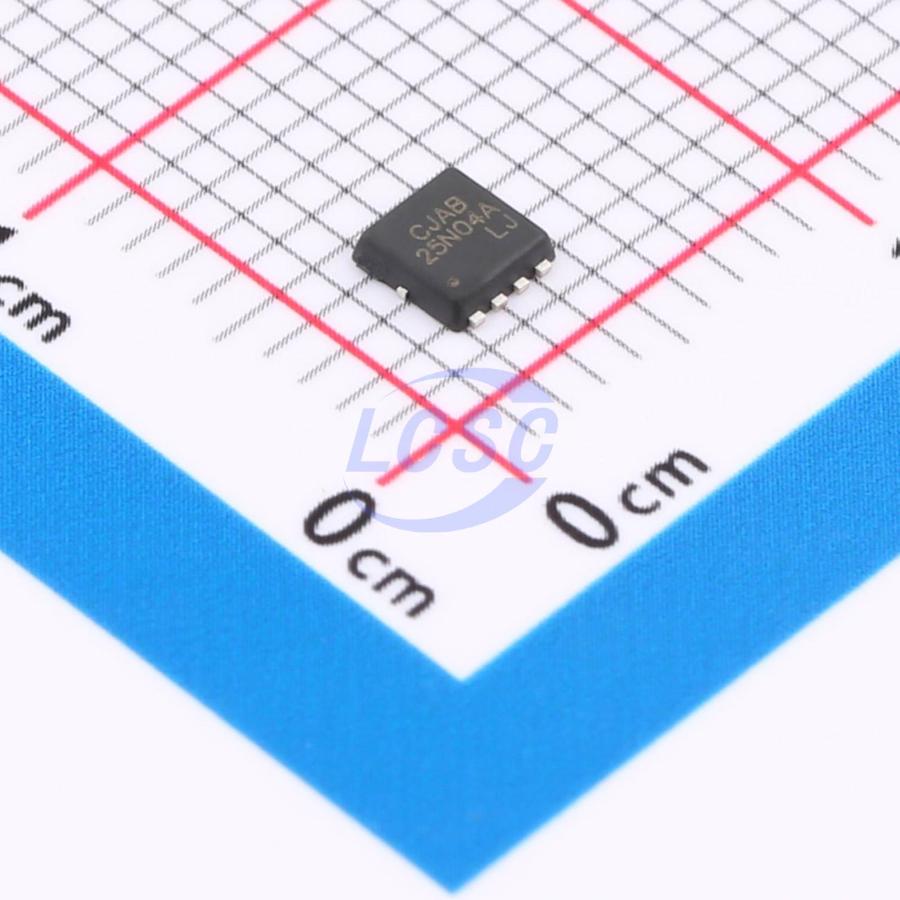

CJAB25N04A
N-Channel 40V 25A 50W PDFNWB3.3x3.3-8L
PDFNWB3.3x3.3-8LROHS CompliantActive
MOSFET N-CH 40V 25A PDFNWB3.3x3.3-8L
- Manufacturer
- JSCJ
- Manufacturer part #
- CJAB25N04A
- Store part #
- C47089384
- Package / case
- PDFNWB3.3x3.3-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,890 in stock
#C47089384
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.75 | ₹143.75 |
| 50+ | ₹23.17 | ₹1,158.50 |
| 150+ | ₹20.78 | ₹3,117.00 |
| 500+ | ₹17.79 | ₹8,895.00 |
| 2,500+ | ₹16.47 | ₹41,175.00 |
| 5,000+ | ₹15.68 | ₹78,400.00 |
5 × ₹28.75
₹143.75
excl. GST
₹169.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CJAB25N04A
₹143.75 for 5 + GST
Specifications
- Drain to Source Voltage
- 40V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 25A
- Output Capacitance(Coss)
- 189pF
- Ciss-Input Capacitance
- 2.893nF
- Pd - Power Dissipation
- 50W
- Reverse Transfer Capacitance (Crss)
- 154pF
- RDS(on)
- 8.4mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 60nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.118 g
Overview
CJAB25N04A utilizes advanced trench technology and design to deliver excellent on-resistance RDS(ON) with low gate charge. It is suitable for a wide range of applications.
Applications
- Switching power supplies (SMPS) and general-purpose applications
- Hard switching and high-frequency circuits
- Uninterruptible power supplies
- Power management
Key features
- High power and current handling capability
- Load switching
- High-density cell design for ultra-low on-resistance RDS(ON)
- RoHS compliant
- High single-pulse avalanche energy (EAS) with excellent stability and consistency
- Thermally enhanced package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJAB65N04#C19269014JSCJ · PDFNWB3.3x3.3-8L | JSCJ | PDFNWB3.3x3.3-8L | 175 | ₹53.46 · 175 in stock | View |
 | CJAB25N04#C504066JSCJ · PDFNWB3.3x3.3-8L | JSCJ | PDFNWB3.3x3.3-8L | 565 | ₹32.25 · 565 in stock | View |
 | CJAB25N04S#C504067JSCJ · PDFNWB3.3x3.3-8L | JSCJ | PDFNWB3.3x3.3-8L | 1,475 | ₹27.29 · 1,475 in stock | View |
 | CJAB3R9SN04C#C19268995JSCJ · PDFNWB3.3x3.3-8L | JSCJ | PDFNWB3.3x3.3-8L | On request | ₹39.04 · 0 in stock | View |
 | CJAB40SN10#C504073JSCJ · PDFNWB-8-EP(3.3x3.3) | JSCJ | PDFNWB-8-EP(3.3x3.3) | On request | ₹80.82 · 0 in stock | View |
