CIMODatasheet (PDF)

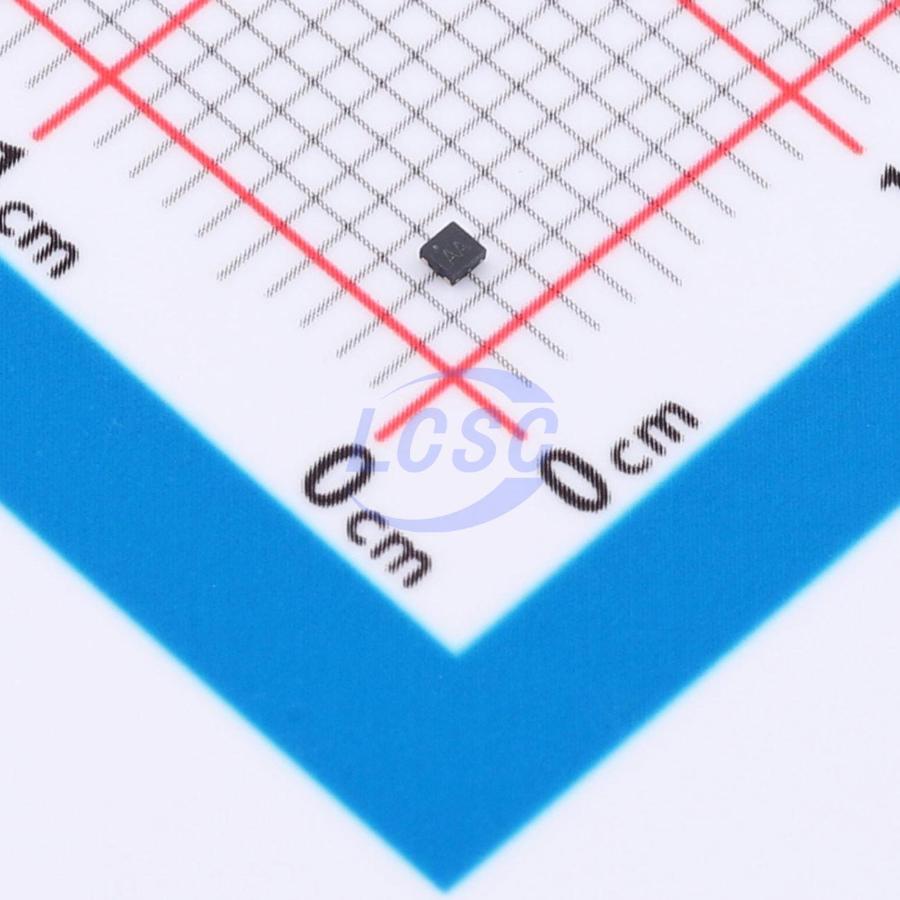

CM6112-DFN4TA
1.2V~16V Positive Adjustable DFN-4(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN-4(1x1)RoHSActive
- Manufacturer
- CIMO
- Manufacturer part #
- CM6112-DFN4TA
- Store part #
- C53235282
- Package / case
- DFN-4(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,938 in stock
#C53235282
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹304.20 | ₹304.20 |
| 10+ | ₹258.45 | ₹2,584.50 |
| 30+ | ₹229.83 | ₹6,894.90 |
| 100+ | ₹200.55 | ₹20,055.00 |
| 500+ | ₹187.34 | ₹93,670.00 |
| 1,000+ | ₹181.70 | ₹1,81,700.00 |
1 × ₹304.20
₹304.20
excl. GST
₹358.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
CM6112-DFN4TA
₹304.20 for 1 + GST
Specifications
- Output Voltage
- 1.2V~16V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 16V
- Output Type
- Adjustable
- Features
- Enable control;Built-in soft-start;Over Current Protection;Thermal shutdown;Input under-voltage protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.067 g
Overview
A linear regulator in an ultra-small package featuring ultra-low noise, high PSRR, fast transient response, and low dropout. The device delivers 200mA output current at a typical dropout voltage of 210mV. Input voltage range is 3V to 16V with an adjustable output voltage range of 1.2V to 16V. Quiescent current is typically 0.3mA in normal operation and less than 4μA in shutdown mode, making it ideal for noise-sensitive and low-power applications. The device requires a minimum 2.2μF ceramic capacitor at the output for stable operation and integrates current-limiting and over-temperature protection for system safety. Available in DFN4 and DFN6 packages, with an operating temperature range of -40°C to 125°C.
Applications
- Ultra-low noise instrumentation
- High-precision ADC/DAC power supply
- RF low-noise power supply
- Post-regulator for switching power supplies
Key features
- Ultra-low output voltage noise: 2.8μVrms (10Hz~100kHz)
- Ultra-low output voltage noise density: 9nV/√Hz (10kHz)
- High PSRR: 85dB@10kHz, 80dB@100kHz, 65dB@1MHz
- Output current: 200mA
- Wide input voltage range: 3V ~ 16V
- High bandwidth: 2MHz
- Low dropout: 210mV
- Single capacitor improves noise and PSRR
- High-precision enable pin
- Internal overcurrent and overtemperature protection
- Output voltage configured via external resistor
- Available in DFN4 1mm × 1mm and DFN6 2mm × 2mm packages
