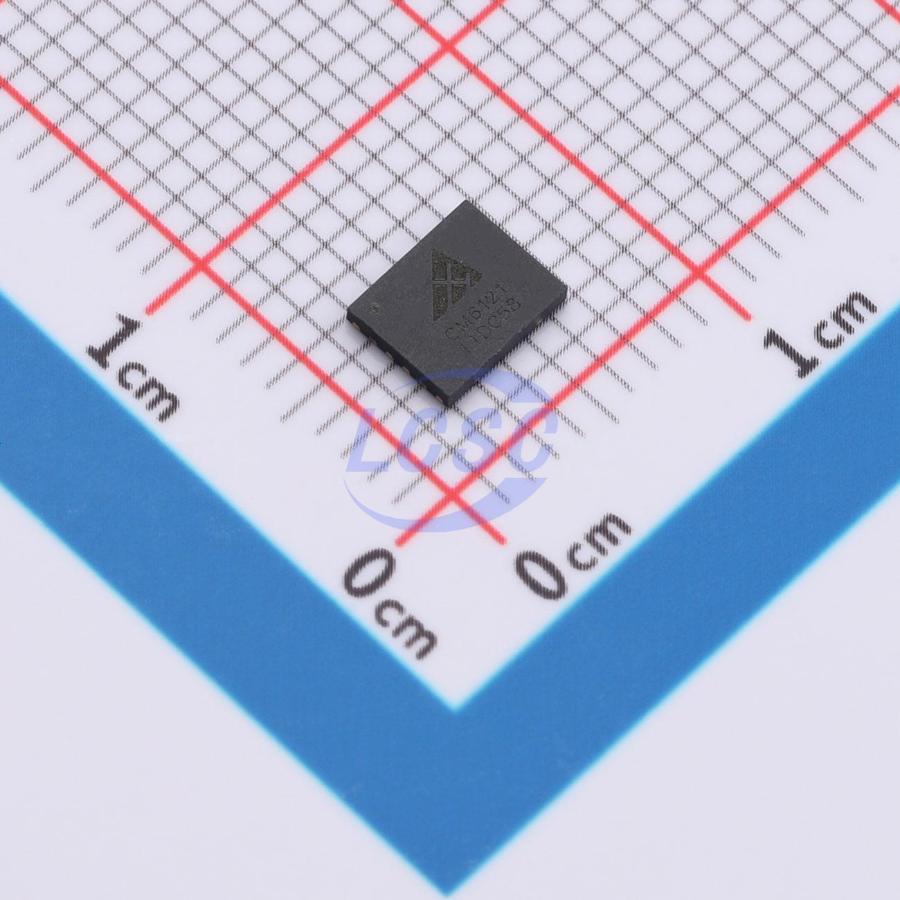

CIMO

CM6121-DFNMTA

1.7V~15V Positive Adjustable DFN-12(4x4.9) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

DFN-12(4x4.9)RoHSActive

Manufacturer: CIMO
Manufacturer part #: CM6121-DFNMTA
Store part #: C53235280
Package / case: DFN-12(4x4.9)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,991 in stock

#C53235280

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹653.47	₹653.47
10+	₹560.37	₹5,603.70
30+	₹505.03	₹15,150.90
100+	₹449.03	₹44,903.00
500+	₹423.20	₹2,11,600.00
1,000+	₹411.70	₹4,11,700.00

Quantity (min 1)

1 × ₹653.47

₹653.47

excl. GST

₹771.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

CM6121-DFNMTA

₹653.47 for 1 + GST

Specifications

Output Voltage: 1.7V~15V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Output Configuration: Positive
Output Current: 500mA
Operating Voltage: 20V
Features: Enable control;Adjustable soft-start;Operating status indication;Input under-voltage protection;Adjustable current limiting;Thermal shutdown;Short Circuit Protection
Output Type: Adjustable

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.134 g

Overview

CM6121 is a high-performance low-dropout linear regulator featuring an ultralow-noise and ultra-high PSRR architecture, making it ideal for noise-sensitive applications. The device integrates a high-accuracy current reference and a high-performance voltage buffer, allowing output voltage to be set with a single external resistor. This architecture enables multiple devices to be connected in parallel to further reduce noise, increase output current, and improve PCB thermal dissipation. The regulator delivers 500mA output current at a typical dropout voltage of 315mV. Typical quiescent current in normal operation is 2.7mA, with a maximum of only 1μA in shutdown mode. The CM6121 provides stable and excellent performance across a wide output voltage range of 1.7V to 15V, with output noise, PSRR, bandwidth, and load regulation virtually unaffected by output voltage. The device also features programmable current limiting, fast startup, and a power-good indicator. The CM6121 requires a minimum 10μF ceramic capacitor at the output for stable operation, and incorporates current-limiting and over-temperature protection to ensure system safety. The device is available in DFN10 and DFN12 packages, with an operating temperature range of -40°C to 125°C.
