CIMODatasheet (PDF)

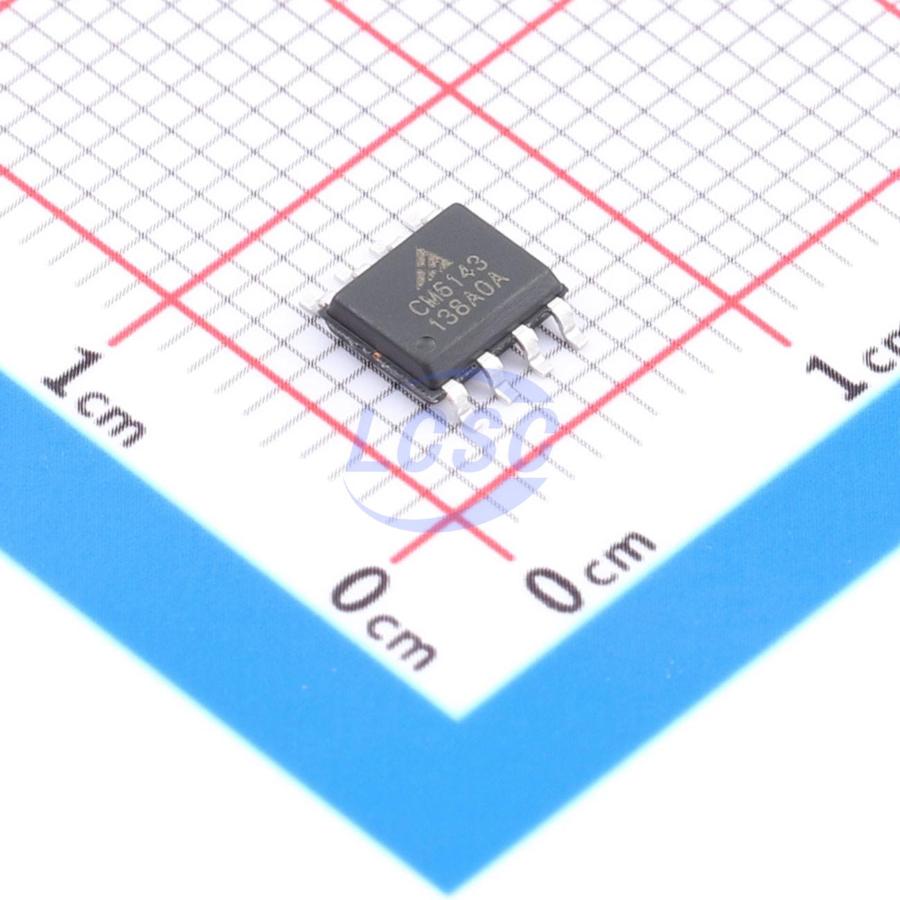

CM6143-SOPTA
3.3V Positive Fixed SOP8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOP8RoHSActive
- Manufacturer
- CIMO
- Manufacturer part #
- CM6143-SOPTA
- Store part #
- C54451282
- Package / case
- SOP8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,995 in stock
#C54451282
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹448.81 | ₹448.81 |
| 10+ | ₹384.85 | ₹3,848.50 |
| 30+ | ₹346.90 | ₹10,407.00 |
| 100+ | ₹308.54 | ₹30,854.00 |
| 500+ | ₹290.76 | ₹1,45,380.00 |
| 1,000+ | ₹282.74 | ₹2,82,740.00 |
1 × ₹448.81
₹448.81
excl. GST
₹529.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CM6143-SOPTA
₹448.81 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Output Configuration
- Positive
- Output Current
- 1.5A
- Operating Voltage
- 22V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.234 g
Overview
CM614X is a low dropout regulator designed for fast transient response. The device delivers 1.5A output current at a 280mV dropout voltage. Quiescent current is as low as 1.5mA in active mode and drops below 1μA in shutdown mode. With low output noise characteristics, CM614X is well suited for noise-sensitive RF power supply applications. The series offers fixed output voltage options of 1.5V, 1.8V, 2.5V, and 3.3V, as well as an adjustable output voltage version ranging from 1.21V to 20V. CM614X maintains stable operation with as little as a 10μF output capacitor. It integrates multiple circuit protection features including current limiting and thermal shutdown. The device is available in SOP8, SOT223-3, TSSOP16, and TO252-5 packages, with an operating temperature range of –40°C to 125°C.
Applications
- 2.5V~3.3V logic supply
- Post-regulator for switching power supplies
- Medical and imaging applications
Key features
- Fast transient response
- Output current: 1.5A
- Low dropout: 280mV (1.5A)
- Low noise: 30μVrms (10Hz~100kHz)
- Quiescent current: 1.5mA (drops to <1μA in shutdown mode)
- Fixed output voltage: 1.5V, 1.8V, 2.5V, 3.3V
- Adjustable output voltage: 1.21V~20V
- Thermal shutdown
- Available in SOP8 4.9mm × 3.9mm, SOT223-3 6.5mm × 3.5mm, TSSOP16 5mm × 4.4mm, TO252-5 6.6mm × 6.1mm packages
