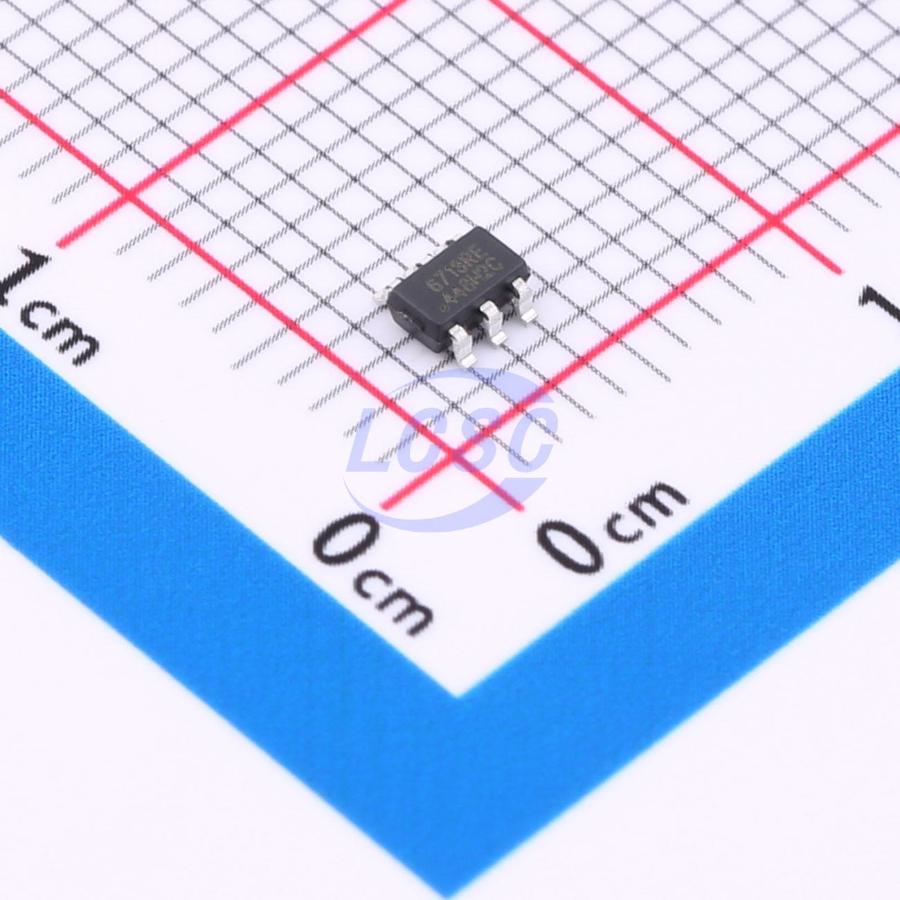

coileasy

CMP6713RE

SOT-23-6 Power Management - Specialized RoHS

SOT-23-6ROHS CompliantActive

Isolated power transformer driver

Manufacturer: coileasy
Manufacturer part #: CMP6713RE
Store part #: C47117017
Package / case: SOT-23-6
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,782 in stock

#C47117017

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹44.76	₹44.76
10+	₹39.33	₹393.30
30+	₹36.94	₹1,108.20
100+	₹33.90	₹3,390.00
500+	₹32.60	₹16,300.00
1,000+	₹31.95	₹31,950.00

Quantity (min 1)

1 × ₹44.76

₹44.76

excl. GST

₹52.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

CMP6713RE

₹44.76 for 1 + GST

Specifications

Features: Over temperature protection;Under-voltage lockout;Soft-start;Short-Circuit Protection;Overcurrent Protection
Operating Temperature: -40℃~+125℃
Current - Continuous Drain(Id): 300mA
Quiescent Current: 1.7mA
Voltage - Supply: 6.5V~30V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.051 g

Overview

CMP6713RE is a full-bridge transformer driver integrating two N-type and two P-type power MOSFETs on-chip. It provides complementary drive signals with precise timing and dead-time control via an internal oscillator. Paired with a matched transformer, this driver enables isolated power supplies with an input voltage range of 6.5V to 30V and output power up to 2W. By selecting different transformers with only minimal input/output filter capacitors, an isolation transformer, and a rectifier circuit, multiple unregulated output voltages can be achieved. The device supports resistor-programmable frequency selection, allowing continuous switching frequency adjustment from 200 kHz to 420 kHz with simultaneous spread-spectrum frequency dithering.

Applications

Auxiliary power for isolated RS-485/RS-232 interfaces
Auxiliary power for isolated ADC/DAC/amplifiers
Auxiliary power for isolated CAN and I²C interfaces
Auxiliary power for isolated gate drivers

Key features

Compact SOT23-6 package
Suppresses flux imbalance and saturation in power transformers
Long-term short-circuit protection with auto-recovery
Integrated current limiting, undervoltage lockout, and thermal shutdown protection
Spread spectrum clock support
Soft-start capability
