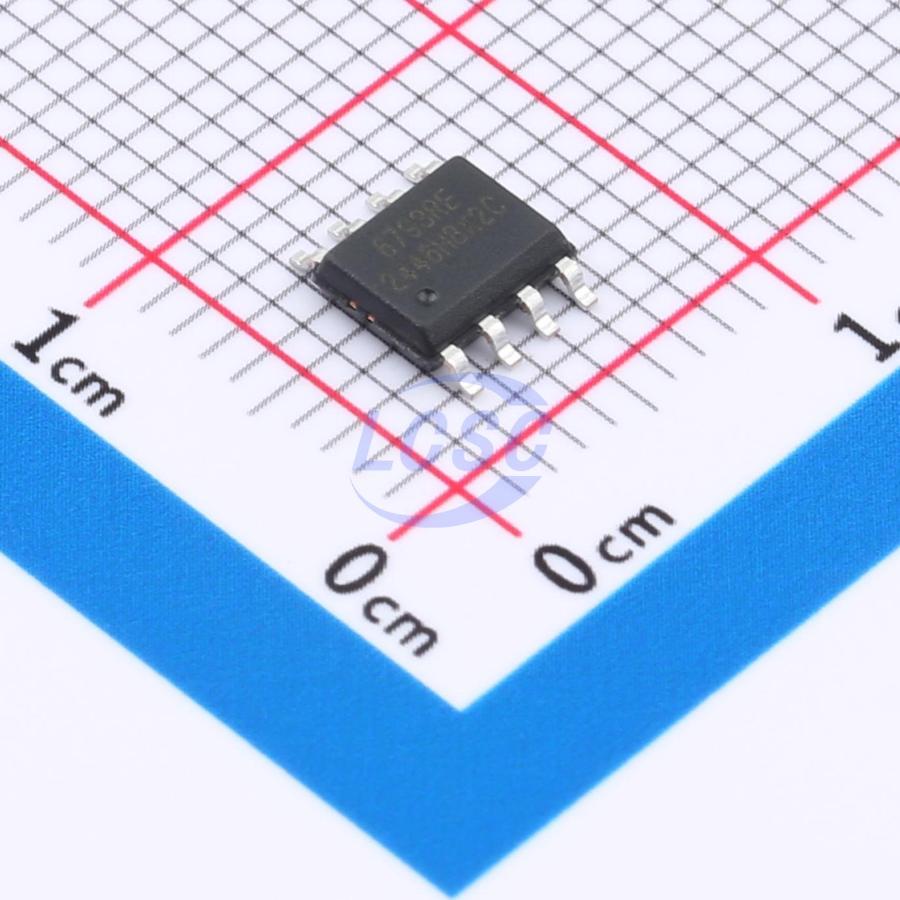

coileasy

CMP6793RE

ESOP-8 Power Management - Specialized RoHS

ESOP-8ROHS CompliantActive

Isolated power transformer driver

Manufacturer: coileasy
Manufacturer part #: CMP6793RE
Store part #: C47117018
Package / case: ESOP-8
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,214 in stock

#C47117018

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹80.89	₹80.89
10+	₹65.55	₹655.50
30+	₹57.78	₹1,733.40
100+	₹50.19	₹5,019.00
500+	₹45.51	₹22,755.00
1,000+	₹43.15	₹43,150.00

Quantity (min 1)

1 × ₹80.89

₹80.89

excl. GST

₹95.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CMP6793RE

₹80.89 for 1 + GST

Specifications

Features: Over temperature protection;Under-voltage lockout;Soft-start;Short-Circuit Protection;Overcurrent Protection
Operating Temperature: -40℃~+125℃
Current - Continuous Drain(Id): 300mA
RDS(on): 400mΩ;800mΩ
Drain to Source Voltage: 30V
Quiescent Current: 1.7mA
Voltage - Supply: 6.5V~30V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.181 g

Overview

CMP6793RE is a bridge transformer driver integrating two 30V N-type power MOSFETs and two 30V P-type power MOSFETs. It generates complementary drive signals with precise timing and dead-time via an internal oscillator, and incorporates spread spectrum frequency modulation. Combined with a compatible transformer, this driver enables an isolated power supply with an input voltage range of 6.5V to 30V and output power up to 6W. By selecting different transformers paired with only simple diodes, multiple unregulated output voltages can be achieved.

Applications

Isolated RS-485/RS-232
Isolated ADC/DAC/Amplifier
Isolated CAN
Isolated I²C
Isolated Gate Driver

Key features

Compact ESOP8 package
Suppresses flux imbalance and saturation in power transformers
Long-term short-circuit protection with auto-recovery
Integrated current limiting, undervoltage lockout, and thermal shutdown protection
Spread spectrum clock support
Soft-start capability
