CONSONANCEDatasheet (PDF)

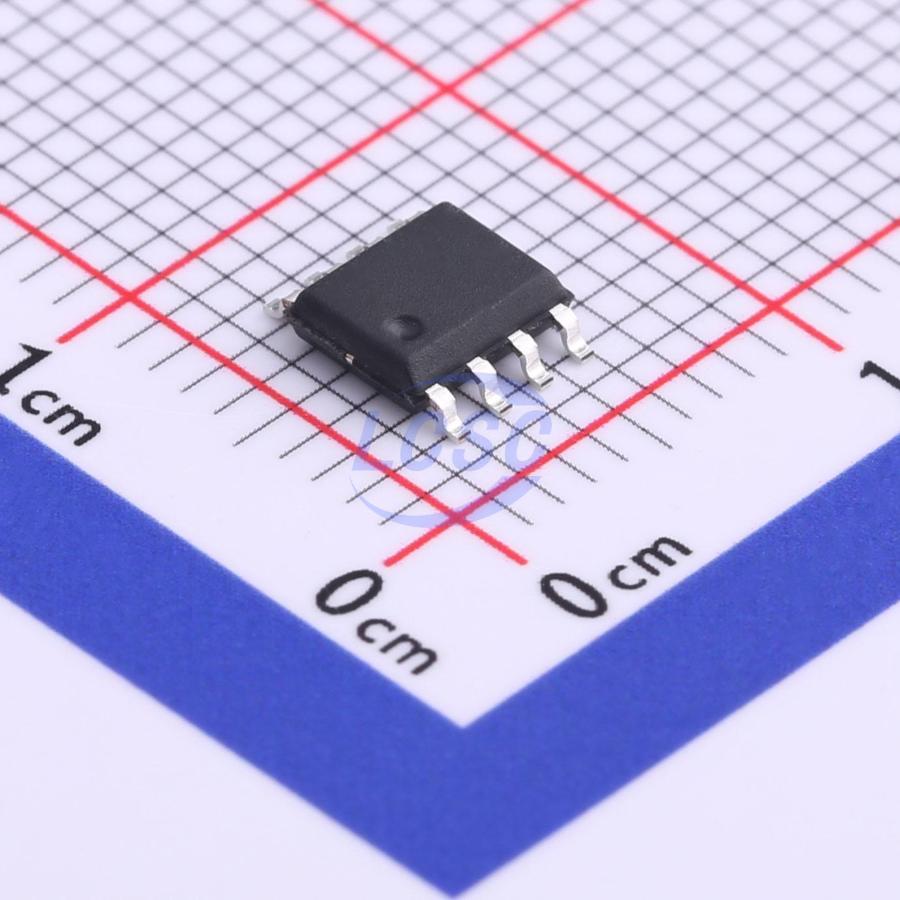

CN706S
200ms Active Low 1.15V~5.5V 2 SOP-8 Supervisors
SOP-8RoHSActive
Low-power microprocessor reset circuit
- Manufacturer
- CONSONANCE
- Manufacturer part #
- CN706S
- Store part #
- C840510
- Package / case
- SOP-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,710 in stock
#C840510
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.46 | ₹112.30 |
| 50+ | ₹17.54 | ₹877.00 |
| 150+ | ₹15.44 | ₹2,316.00 |
| 500+ | ₹12.81 | ₹6,405.00 |
| 2,500+ | ₹11.64 | ₹29,100.00 |
| 4,000+ | ₹10.93 | ₹43,720.00 |
5 × ₹22.46
₹112.30
excl. GST
₹132.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CN706S
₹112.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 200ms
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 52uA
- Voltage - Supply
- 1.15V~5.5V
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.138 g
Overview
The CN705/706/707/708/813 series are primarily designed to monitor power supplies for microprocessors, microcontrollers, memories, and other digital circuits, ensuring they operate in a known state. These devices significantly reduce system complexity and the number of peripheral components, thereby improving overall system reliability.
Applications
- Computers
- Controllers
- Smart Instruments
- Automotive Systems
Key features
- Reset signal maintains reliable output down to 1.15V supply voltage
- Precise voltage monitoring with reset thresholds from 2.6V to 5.0V in 0.1V increments
- Low operating current: typical 52µA at 5V
- Reset pulse width: typical 200ms
- Independent watchdog circuit with typical timeout period of 1.6s
- Power failure or low battery voltage comparator
- Pin-compatible and functionally compatible with industry-standard 705/706/707/708/813
- DIP8 and SOP8 packages
