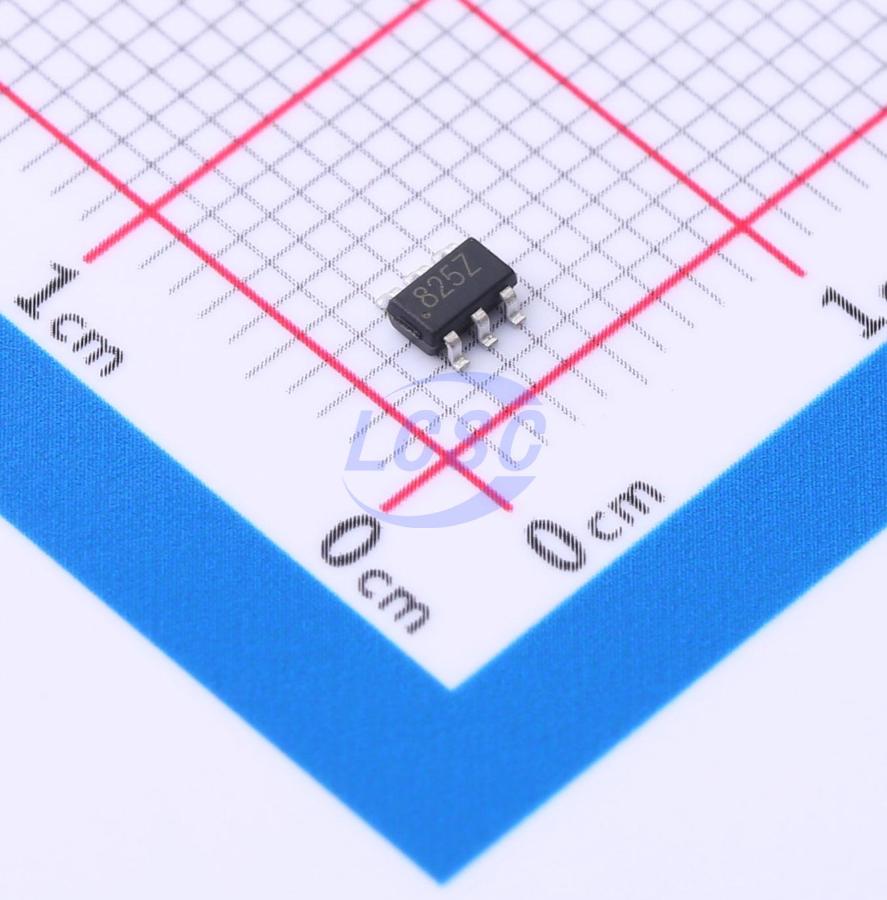

CN825Z
Supervisor 1 Channel SOT-23-6
SOT-23-6RoHSActive
Low-power reset integrated circuit with watchdog and manual reset functions
- Manufacturer
- CONSONANCE
- Manufacturer part #
- CN825Z
- Store part #
- C3034870
- Package / case
- SOT-23-6
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,715 in stock
#C3034870
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.20 | ₹76.00 |
| 50+ | ₹12.08 | ₹604.00 |
| 150+ | ₹10.52 | ₹1,578.00 |
| 500+ | ₹9.35 | ₹4,675.00 |
| 3,000+ | ₹8.41 | ₹25,230.00 |
| 6,000+ | ₹7.94 | ₹47,640.00 |
5 × ₹15.20
₹76.00
excl. GST
₹89.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CN825Z
₹76.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Reset Timeout
- 200ms
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low;Active High
- standby current
- 16uA
- Voltage - Supply
- 1.1V~6.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.32V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
The CN825 series reset ICs monitor power supplies for digital units such as microprocessors, controllers, DSPs, and memories. When the monitored supply powers up, powers down, or experiences a transient undervoltage condition, the CN825 series outputs a reset signal to prevent erroneous instruction execution. The reset threshold of the CN825 series ICs is internally fixed with 1% accuracy.
Applications
- DSP, computers, microcontrollers
- Industrial equipment
- Smart instruments
- Battery-powered devices
Key features
- Fixed internal reset threshold
- Valid reset output maintained down to VCC = 1.1V
- Reset threshold range: 1.8V to 5.0V
- Reset threshold accuracy: ±1%
- Low operating current: 2.7μA @ VCC below reset threshold
- Reset pulse width: 200ms typical
- Watchdog timeout period: 1.6s typical
- Active-low and active-high reset outputs
- Filters transient voltage glitches on supply rail
- SOT-23-6 package
- Operating temperature range: -40°C to +85°C
- Lead-free, RoHS compliant, halogen-free
