COSINEDatasheet (PDF)

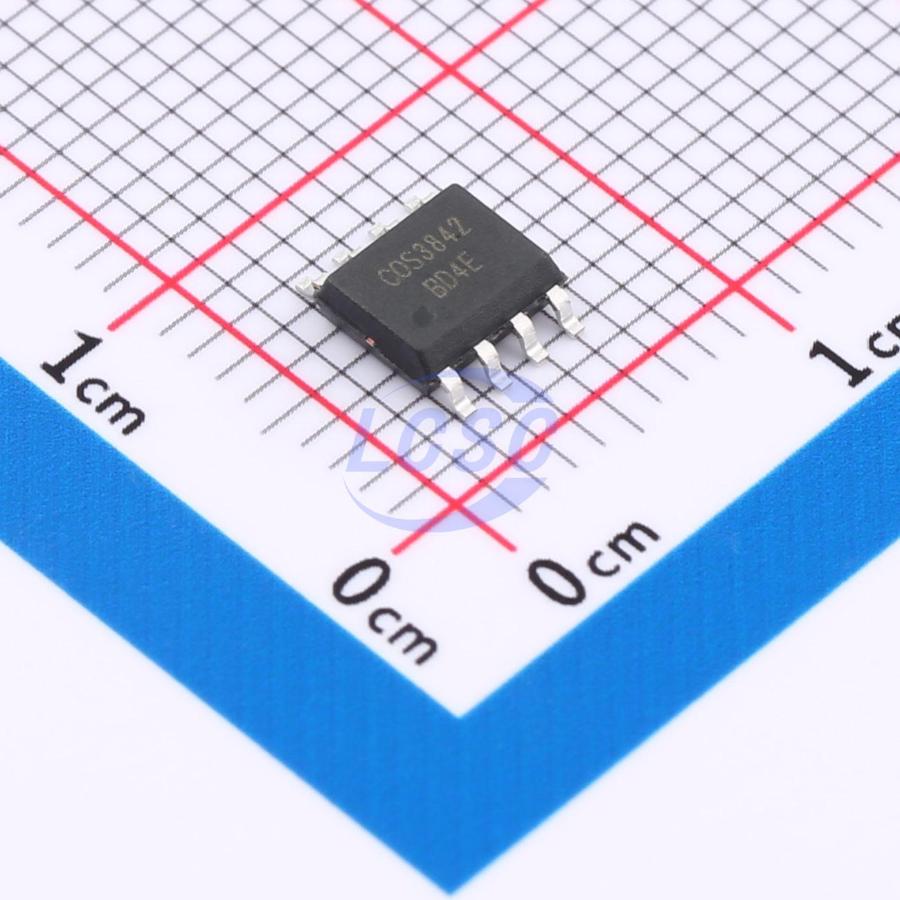

COS3842BD
47kHz~57kHz 8V~30V Flyback SOP-8 AC DC Converters, Offline Switchers RoHS
SOP-8ROHS CompliantActive
Current-Mode PWM Controllers
- Manufacturer
- COSINE
- Manufacturer part #
- COS3842BD
- Store part #
- C5367537
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,460 in stock
#C5367537
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.62 | ₹78.10 |
| 50+ | ₹14.10 | ₹705.00 |
| 150+ | ₹13.35 | ₹2,002.50 |
| 500+ | ₹12.78 | ₹6,390.00 |
| 2,500+ | ₹12.33 | ₹30,825.00 |
| 4,000+ | ₹12.11 | ₹48,440.00 |
5 × ₹15.62
₹78.10
excl. GST
₹92.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
COS3842BD
₹78.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 47kHz~57kHz
- Voltage - Supply
- 8V~30V
- Features
- Under-voltage lockout;Under Voltage Protection;Over Current Protection
- Topology
- Flyback
- Duty Cycle(Max)
- 100%
- Working Mode
- PWM Modulation
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.175 g
Overview
The COS384x series of controllers are peak current mode pulse width modulators. They are designed to offer improved performance and lowered external parts count when used in designing off-line or DC-to-DC switching power supplies. The internally implemented circuits include an under-voltage lockout (UVLO), featuring a start-up current of less than 1mA, and a precision reference trimmed for accuracy at the error amplifier input. Other internal circuits include logic to ensure latched operation, a pulse-width modulation (PWM) comparator that also provides current-limit control, and a totem-pole output stage that is designed to source or sink high-peak current. The output stage, suitable for driving N-channel MOSFETs, is low when it is in the off state.
Applications
- Solar Inverters
- Switching Regulators of Any Polarity
- Motor Control
- Battery Chargers
- DC/DC Power Supplies
Key features
- 8-V to 30-V Operation
- Low Start-up Current: <1mA
- 5.1-V Reference Trimmed to 1%
- Current Mode Operation up to 500KHz
- Automatic Feed-forward Compensation
- Under-voltage Lockout With Hysteresis Latching PWM for Cycle-by-Cycle Current Limit
- Double-Pulse Suppression
- High Current Output Driver Optimized for off-line and DC-to-DC Converters
- Available Packaging: SOP8/TSSOP8/DIP8
